MAXPRO IV 550 Watt 80 PLUS®230V EU Standard Non-Modular Power Supply

▪ 80 PLUS® Standard 230V EU Certified
▪ Japanese Primary Capacitor
▪ All Black Flat Cable Design
▪ Single +12V Rail

COMPARE Compare List (0)
MAXPRO IV 750 Watt 80 PLUS®230V EU Standard Non-Modular Power Supply

The MAXPRO IV 550W power supply is certified by 80 PLUS 230V EU, delivering up to 85% efficiency at 50% load.

80 PLUS® Standard 230V EU Certified

Achieves up to 85% efficiency @ 50% load under 230Vac. Compliant with 80 PLUS® 230V EU Standard efficiency requirements

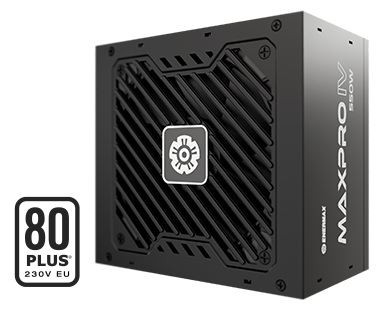

MAXPRO IV 80 PLUS® Standard 230V EU Certified
MAXPRO IV Japanese Primary Capacitor

Japanese Primary Capacitor

The use of Japanese primary capacitor increases the PSU’s lifespan.

Non-Modular Mesh-Sleeved Cables

Mesh-sleeved cables offer a soft texture, making cable management easier and enhancing the aesthetics and airflow within your PC build.

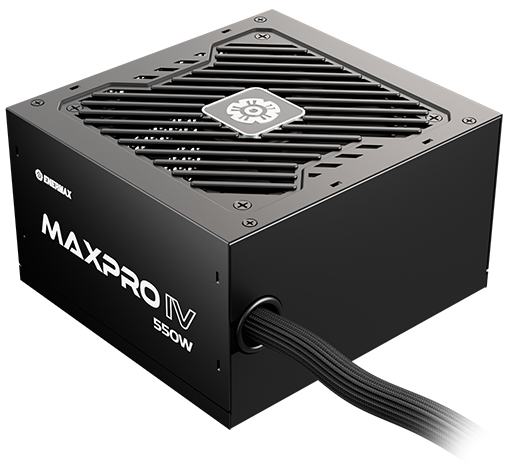

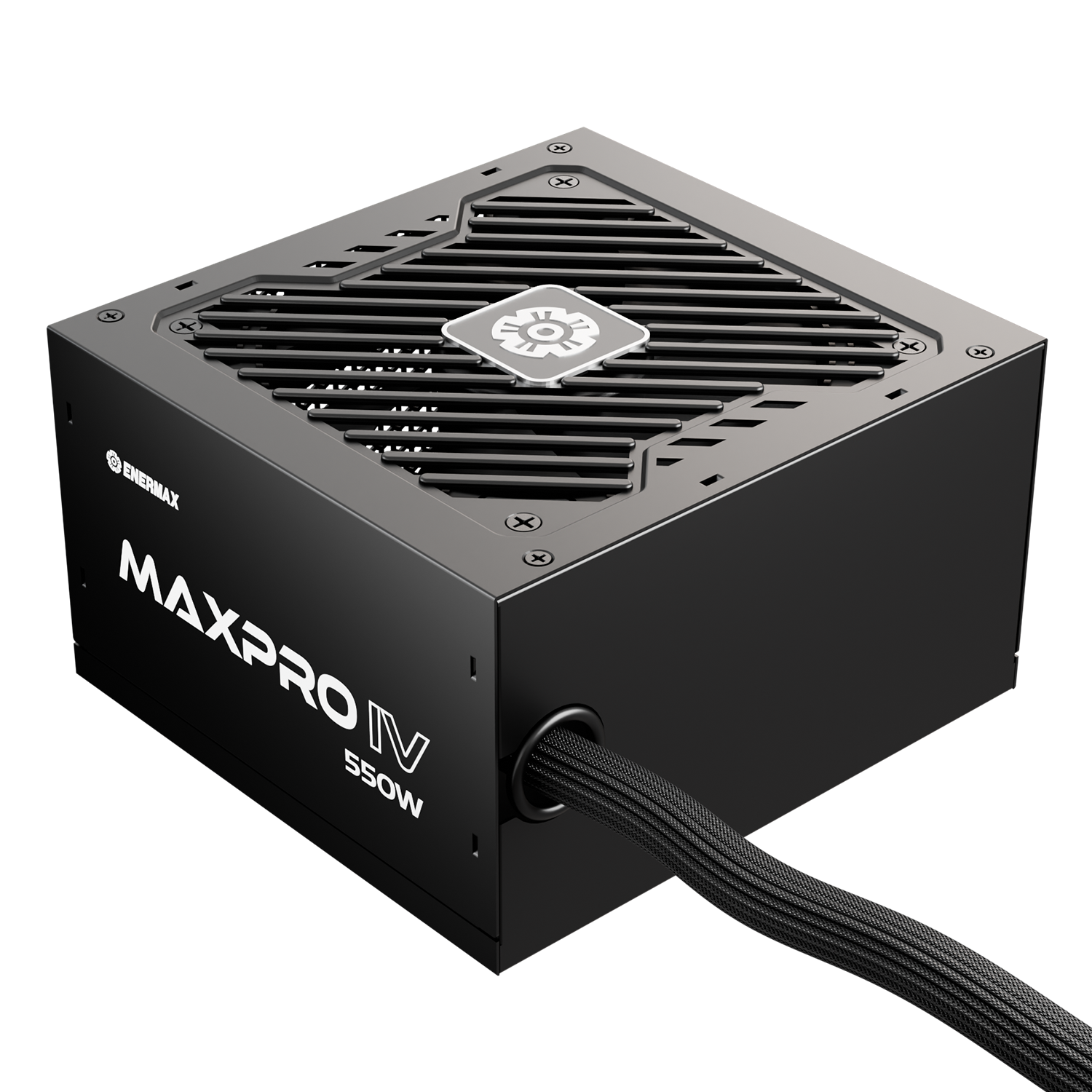

MAXPRO IV Non-Modular Mesh-Sleeved Cables
  • MAXPRO IV power supply with protection mechanism icon-1

    Over Voltage
    Protection

  • MAXPRO IV power supply with protection mechanism icon-2

    Under Voltage
    Protection

  • MAXPRO IV power supply with protection mechanism icon-3

    Over Power
    Protection

  • MAXPRO IV power supply with protection mechanism icon-4

    Short Circuit
    Protection

Built-in Industrial Grade Protection

MAXPRO IV 550W power supply is equipped with comprehensive industry-grade protection mechanisms to ensure the safety and longevity of your components.

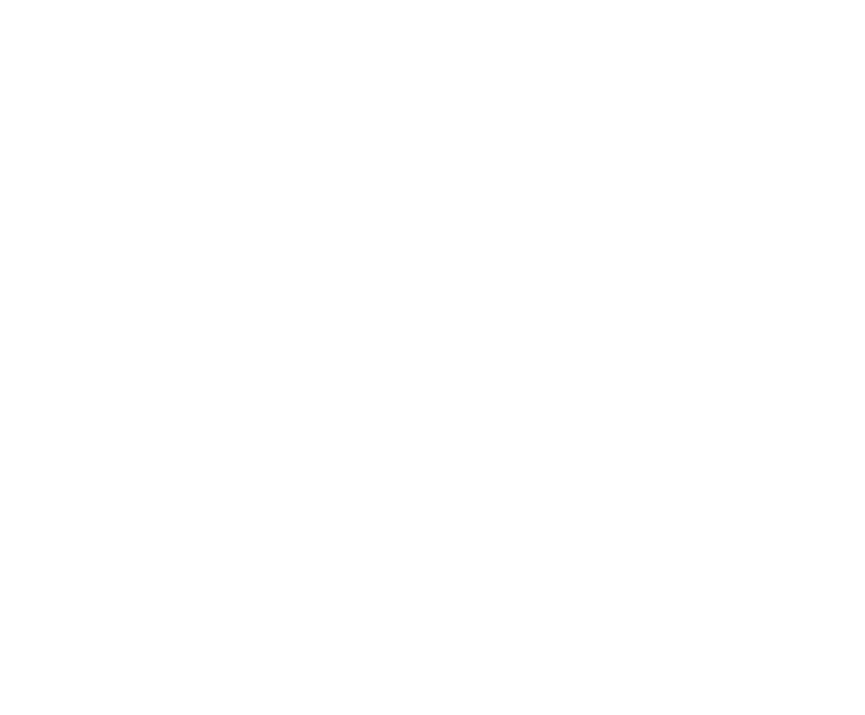

Dimensions

150(W) x 86(H) x 140(D)mm

MAXPRO IV dimension
Connect Type Connector Quantity   Cable Quantity Cable Length
Motherboard
24 (20+4)pin		 1 MAXPRO IV power supply cables icon-1 1 55cm
CPU(4+4)Pin  2 MAXPRO IV power supply cables icon-2 1 60cm
PCIe (6+2) pin
+ (6+2) pin		 2 MAXPRO IV power supply cables icon-3 1 50+15cm
2 x SATA +
4P Molex		 SATA: 3
4P Molex: 2		 SATA MAXPRO IV power supply cables icon-4
Molex MAXPRO IV power supply cables icon-5		 2 1x 45+15cm
1x 45+15+15cm
EMP550W
Motherboard 24 (20+4) pin 1
[ 55cm ]
CPU(4+4)Pin + (4+4)Pin 1
[ 60cm ]
PCIe (6+2) pin + (6+2) pin 2
[ 50+15cm ]
2 x SATA + 4P Molex 1x 45+15cm
1x 45+15+15cm

Notice:
For users looking to put in high-end, power-demanding GPU card, please correctly connect the 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply. This will prevent motherboard overloading and possibly cause damage to your system, including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration, and any damage to the power supply due to it will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.
Either sleeved or flat-type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.
Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please note that overloading could cause the connector or wire to melt down and void the warranty.

80 PLUS Efficiency Standard
Modular Non-modular
Cable type Mesh-Sleeved Cable
Total power (W) 550
Input Voltage (V) 200-240
Input Current (A) 5
Input Frequency (Hz) 50-60
Fan size (mm) 120
Operating temperature (°C) 40
Protection OVP, UVP, OPP, SCP
Dimension (D x W x H), (mm) 140 x 150 x 86
+3.3V(A) 15
+5V(A) 15
+12V1(A) 41
-12V(A) 0.3
+5Vsb(A) 2.5
Combined Wattage 12V (W) 492
Combined Wattage 3.3V + 5V(W) 100
EAN code 4713157729101
UPC code 819315029107
