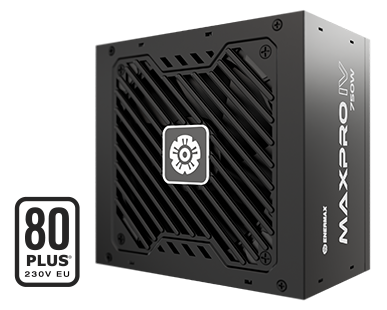

The MAXPRO IV 750W power supply is certified by 80 PLUS 230V EU, delivering up to 85% efficiency at 50% load.
80 PLUS® Standard 230V EU Certified
Achieves up to 85% efficiency @ 50% load under 230Vac. Compliant with 80 PLUS® 230V EU Standard efficiency requirements
Japanese Primary Capacitor
The use of Japanese primary capacitor increases the PSU’s lifespan.
Non-Modular Mesh-Sleeved Cables
Mesh-sleeved cables offer a soft texture, making cable management easier and enhancing the aesthetics and airflow within your PC build.
Over Voltage
Protection
Under Voltage
Protection
Over Power
Protection
Short Circuit
Protection
Built-in Industrial Grade Protection
MAXPRO IV 750W power supply is equipped with comprehensive industry-grade protection mechanisms to ensure the safety and longevity of your components.
2014 & 2013 ErP ready!
<0.5W power consumption at standby mode (with 2013 ErP Lot 6 enabled motherboard). Compliant with 2013 ErP Lot 6 & 2014 ErP Lot 3 standards.
Dimensions
150(W) x 86(H) x 140(D)mm
| Connect Type | Connector Quantity | Cable Quantity | Cable Length | |
| Motherboard 24 (20+4)pin |
1 |  |
1 | 55cm |
| CPU(4+4)Pin + (4+4)Pin |
2 |  |
1 | 60+15cm |
| PCIe (6+2) pin + (6+2) pin |
4 |  |
2 | 50+15cm |
| SATA + 4P Molex |
SATA: 3 4P Molex: 2 |
SATA  Molex  |
2 | 1x 40+15cm 1x 40+15+15cm |
