AQUAFUSION II ARGB Series 240mm Liquid CPU Cooler

▪ Advanced Cooling Capacity (360W TDP)
▪ Patented Dual-Chamber Water Block with Gen.2 Xtreme Pump Design
▪ ENERMAX SquA RGB ADV Fan
▪ Support AMD AM5 and Intel LGA 1851 Sockets
▪ Magnetic Rotatable Real-time Status Digital Display

COMPARE Compare List (0)
AQUAFUSION II 240 AQUAFUSION II LOGO

PATENTED DUAL-CHA MBER WATER BLOCK WITH ENERMAX GEN.2 XTREME PUMP DESIGN

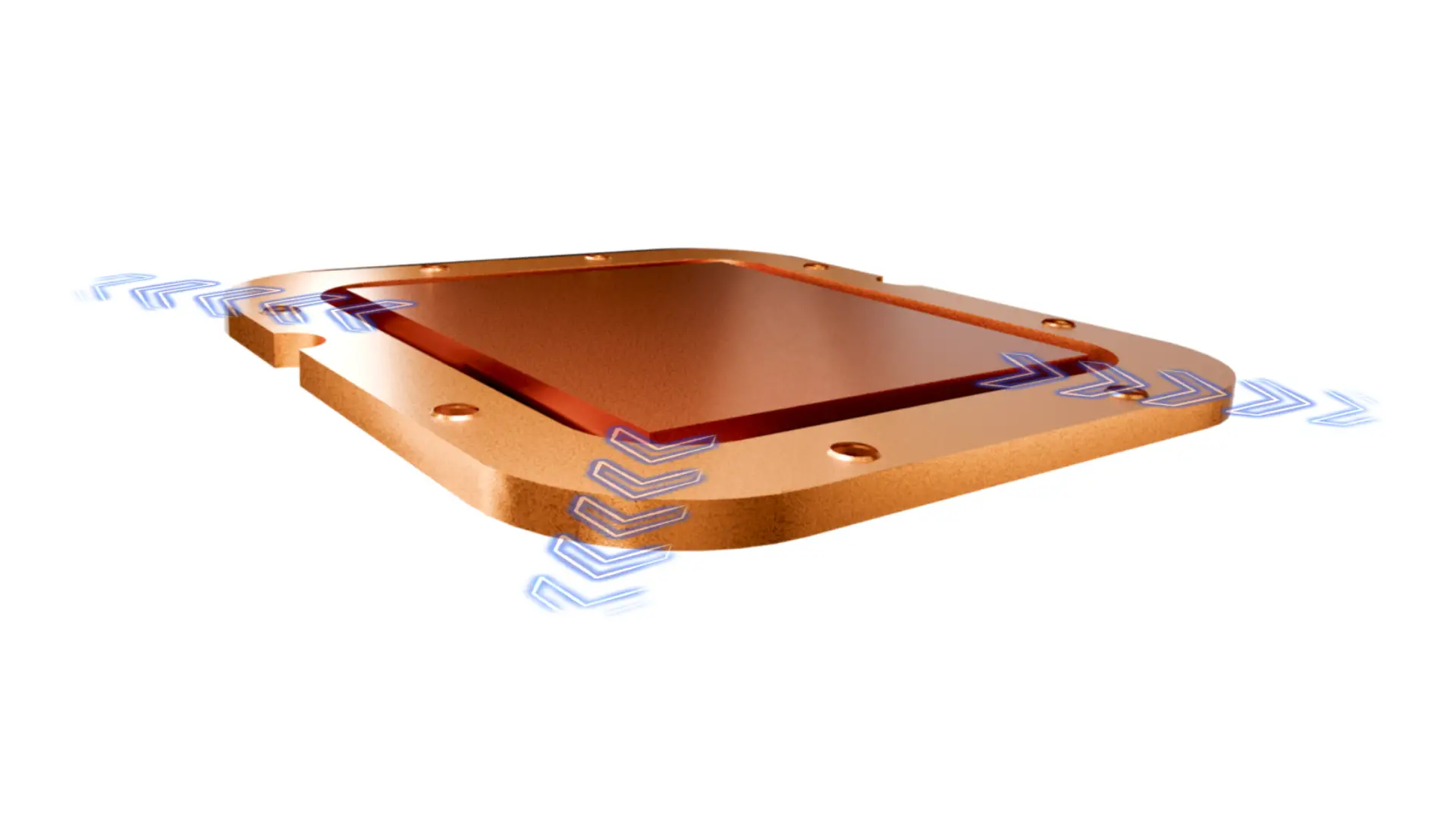

ENERMAX Gen.2 Xtreme Pump Technology is the newly designed water block. With the enlargered cooler base and improved pump lift and flow rate, it can deliver superior cooling capacity.

AQUAFUSION II 240 WATER BLOCK
ENERMAX SquA RGB ADV FANS

ENERMAX SquA RGB ADV FANS

  • Designed for aesthetics with incredible stunning RGB hub lighting effect
  • Optimal cooling performance with Vortex Frame Technology and a downsized hub design

SYNC WITH MOTHERBOARD RGB SOFTWARE

AQUAFUSION II AIO cooler is designed to synchronize with addressable RGB motherboards (3 pin assignment is 5V/D/G), providing 16.8 million colors to light up your rigs

AQUAFUSION II 240 White RGB sync
AQUAFUSION II 240 White RGB sync
AQUAFUSION II 240 White RGB sync
AQUAFUSION II 240 White RGB sync
AQUAFUSION II 240 White RGB sync
AQUAFUSION II 240 White RGB sync

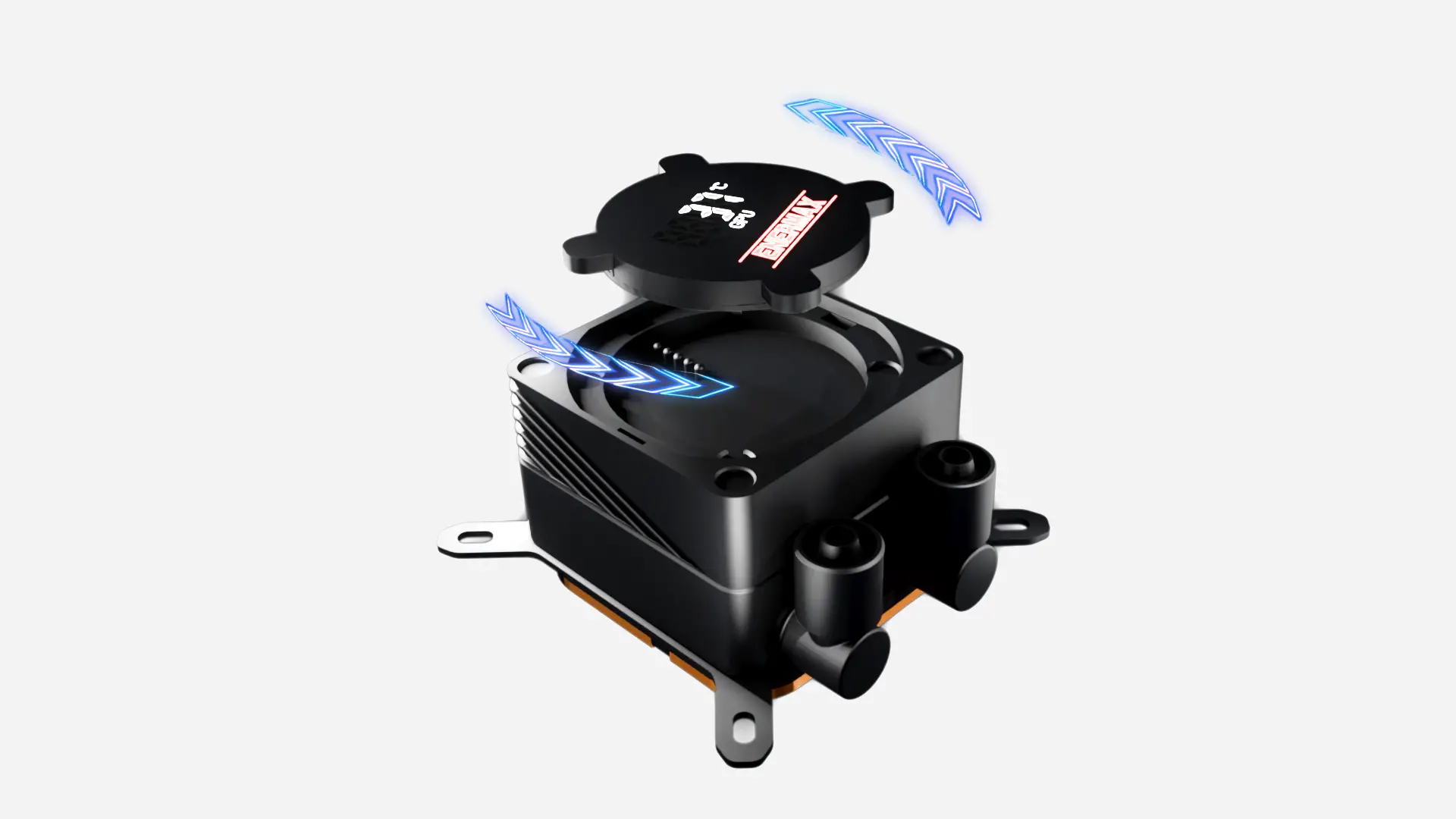

MAGNETIC ROTATABLE REAL-TIME STATUS DIGITAL DISPLAY

Our exclusive magnetic digital display on the water block allows users to manually adjust the display direction.

AQUAFUSION II 240 WATER BLOCK

Experience seamless installation with the help of our 3100 Gauss magnets, coupled perfectly with our low-resistance digital displays.

AQUAFUSION II 240 digital displays

SYSTEM DATA MONITORING

Effortlessly monitor the temperatures of CPU, GPU and fan speed with the digital display.

Enermax-Tuner-Software AQUAFUSION II 240 Enermax-Tuner-Software

ENERMAX Tuner Software
(Download)

DIMENSIONS

Unit: mm

AQUAFUSION II 240 dimension
Model ELC-AQFS240-SQA
CPU Socket Intel® LGA 1851/1700/115x/2066
AMD® AM5/AM4
TDP 360 W
Cold Plate Material Copper
Radiator Material Aluminum
Radiator Dimension 274 x 120 x 27 mm
Pump Bearing Ceramic Bearing
Pump MTBF 100,000 hrs
Pump Rated Voltage 12 V
Pump Rated Current 0.35A
Fan Dimension (Radiator) 120 x 120 x 26 mm
Fan MTTF ≧ 100,000 hrs
Fan Speed 500~1800 RPM ±10%
Fan Rated Voltage 12 V
Fan Rated Current 0.25A
Fan Rated Current RGB LED 1.08A
Fan Air Flow 71.88 CFM
Fan Static Pressure 2.08 mmH2O
Fan Connector 8 Pin
Fan Maximum Noise 27.4 dBA
Thermal Grease Dow Corning® TC-5121C
EAN 4713157729309
UPC 819315029305
Box Dimension 306 x 147 x 232 mm
Carton Dimension 488 x 325 x 475 mm
Q'ty / carton 6 PCS
