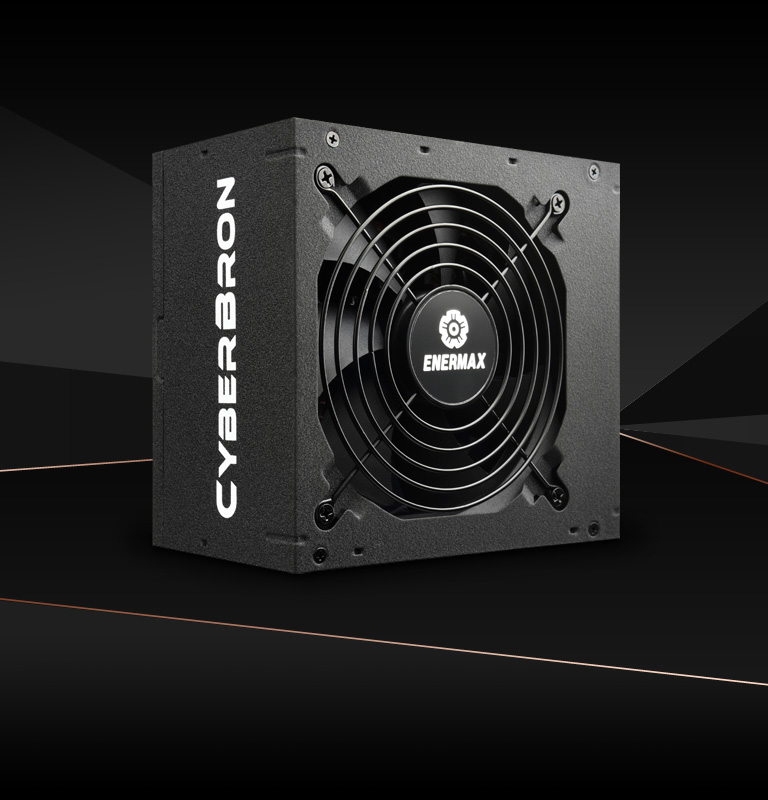

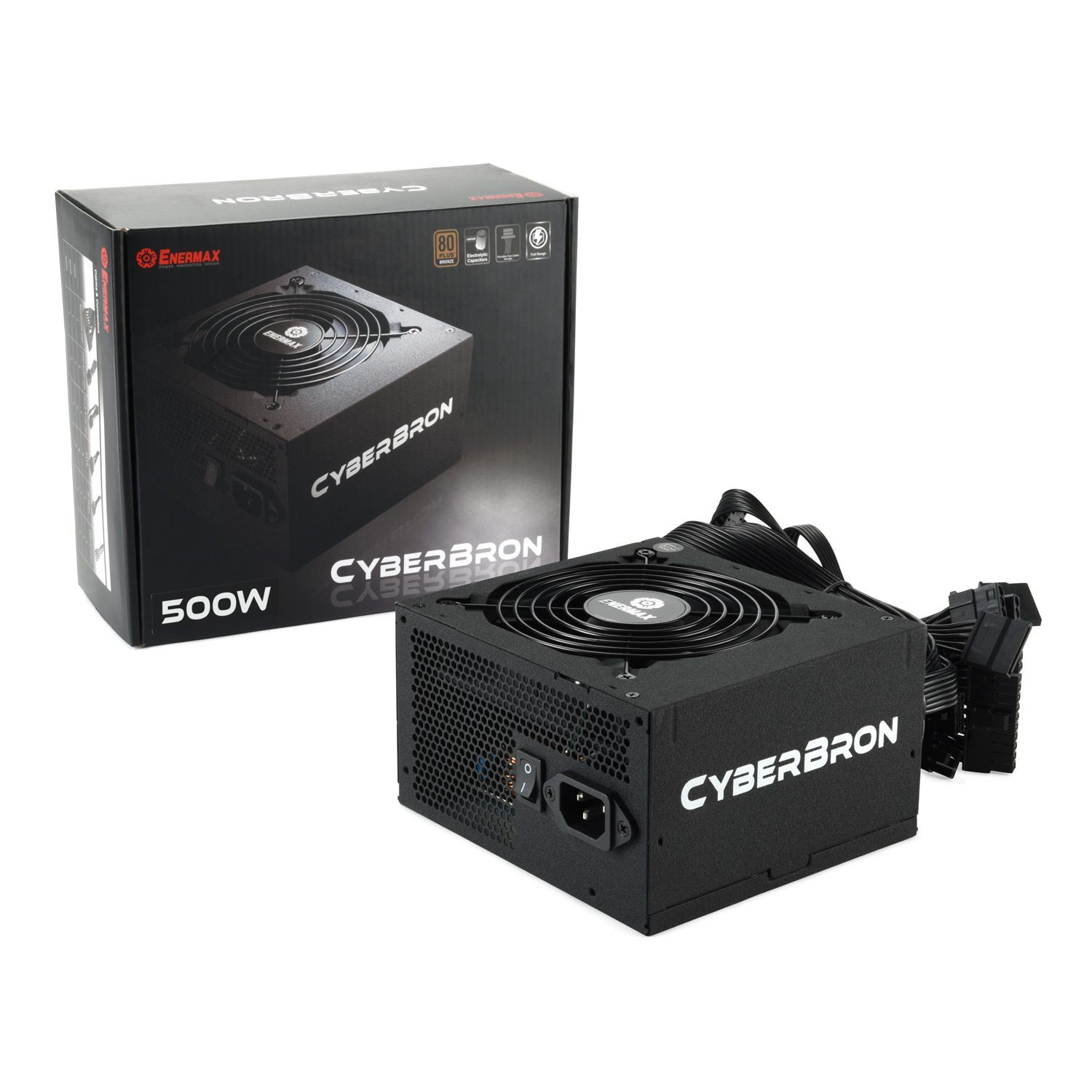

CYBERBRON 500 Watt 80 PLUS Bronze Non-Modular Power Supply

‧ 80 PLUS® Bronze certification
‧ Low-profile black flat cables
‧ Japanese electrolytic capacitors
‧ Single rail +12V design
‧ 120mm fan with intelligent RPM control

COMPARE Compare List (0)

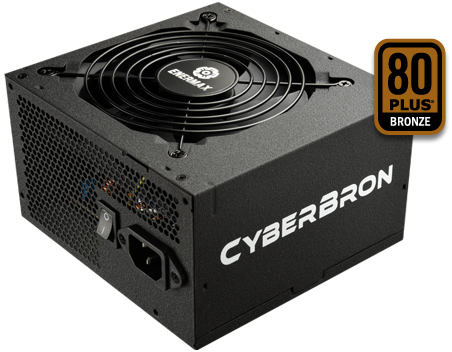

Energy conservation

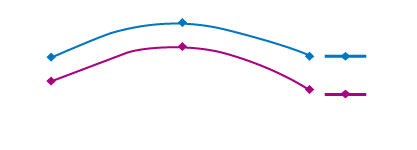

80 PLUS® Bronze certification with 88% efficiency @50% load

Reduce unnecessary power consumption and excess heat to conserve energy to reduce carbon footprint and lower electric bill

80 PLUS® Bronze certification ensures lower power and excess heat with up to 88% efficiency @230VAC 50% load.

Easy Installation

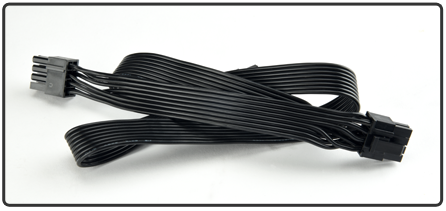

Low-profile black flat cables

  • Easy to bend and be in storage inside the case
  • Make cable management easier and improve airflow inside the PSU-shroud design chassis

Longer product lifespan



Using Japanese electrolytic capacitors

Provide long-term durability and reliability to ensure PSU have longer lifespan

Silence Operation

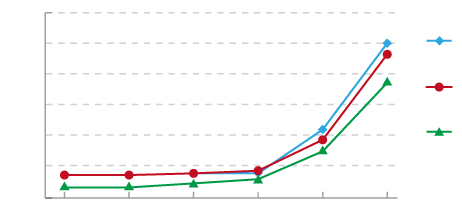

Equipped 120mm fan with intelligent RPM control

Provide excellent balance between cooling performance and silent operation

User friendly



Single rail +12V design

Make GPU and CPU operate with less restriction to avoid shutting down from playing games or other heavy usage like computer graphics

Safety



Multiple protection circuitries of OVP, UVP, OPP and SCP

Multiple protection circuitry of OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection) and SCP (Short Circuit Protection) to give your system fully protection

Product Introduction

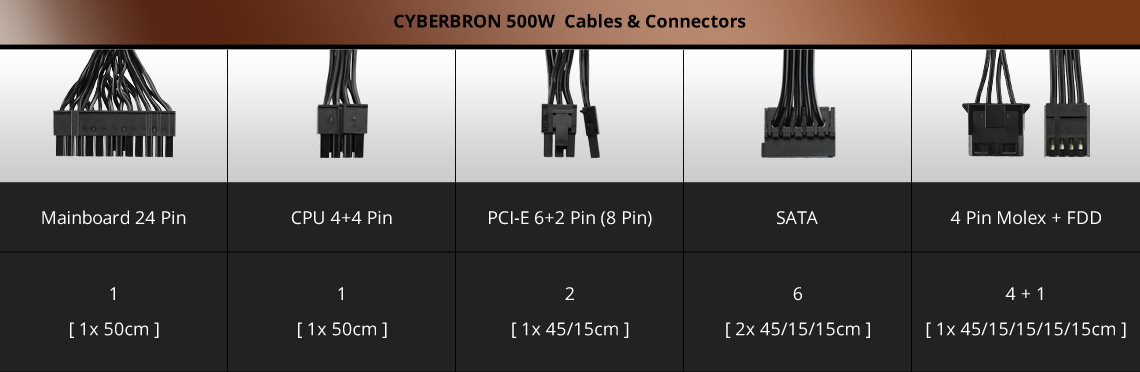

ECB500AWT
Mainboard 24 Pin 1
[ 1x 50cm ]
CPU 4+4 Pin 1
[ 1x 50cm ]
PCI-E 6+2 Pin (8 Pin) 2
[ 1x 45/15cm ]
SATA 6
[ 2x 45/15/15cm ]
4x4 Pin Molex + 1xFDD 4 + 1
[ 1x 45/15/15/15/15cm ]

Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

80 PLUS Efficiency BRONZE
Modular Native
Cable type Black flat
Total power (W) 500
Input Voltage (V) 115-230
Input Current (A) 7
Input Frequency (Hz) 47-63
Fan size (mm) 120
Operating temperature (°C) 40
MTBF (hours) >100K
Protection OVP, UVP, OPP, SCP
Dimension (D x W x H), (mm) 140 x 150 x 86
+3.3V(A) 18
+5V(A) 17
+12V1(A) 38
-12V(A) 0.3
+5Vsb(A) 2.5
Combined Wattage 12V (W) 456
Combined Wattage 3.3V + 5V(W) 110
EAN code 4713157724946
UPC code 819315024942
Box dimensions (D x W x H), (mm) 230 x 200 x 98
Gross Weight / unit (kg) 1.94
