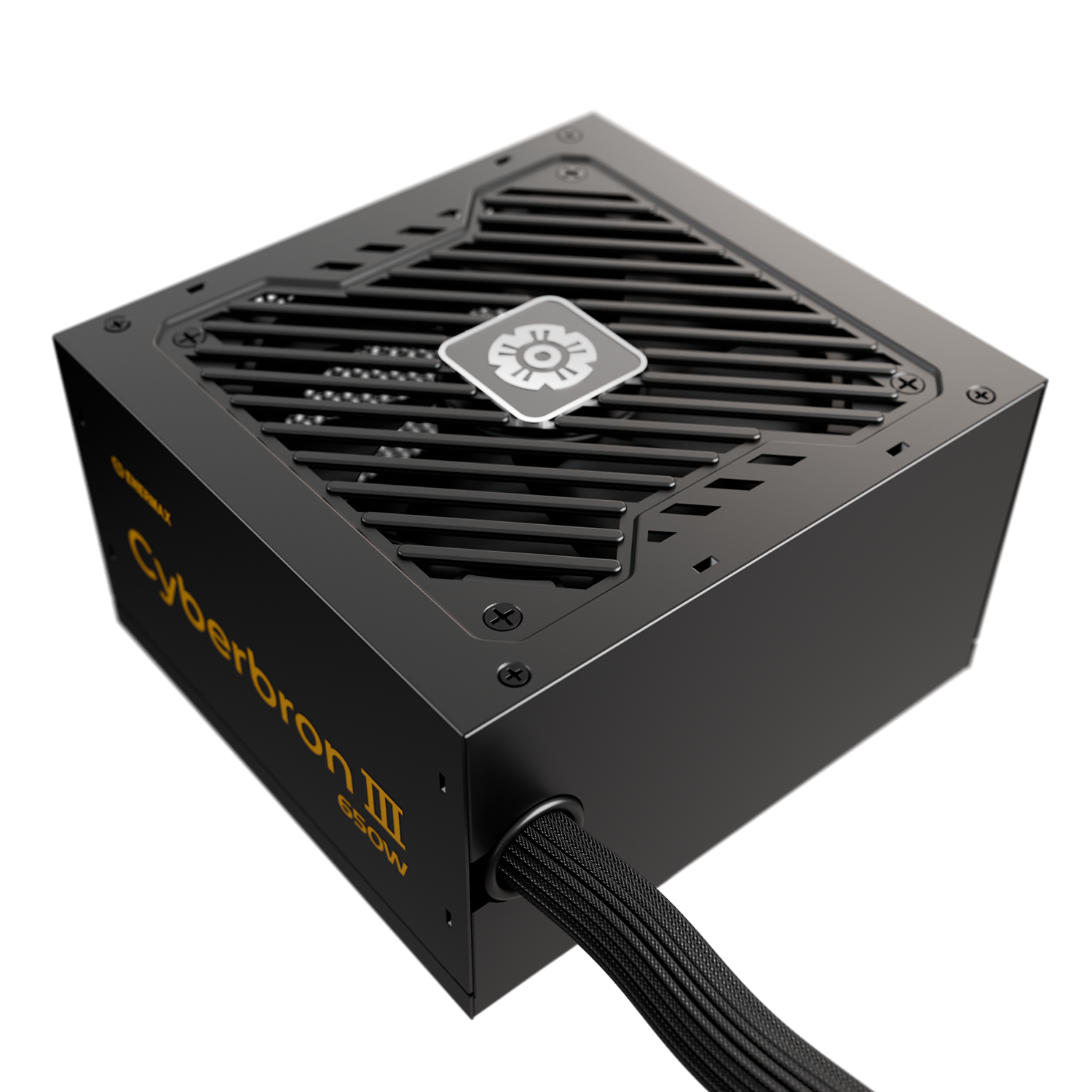

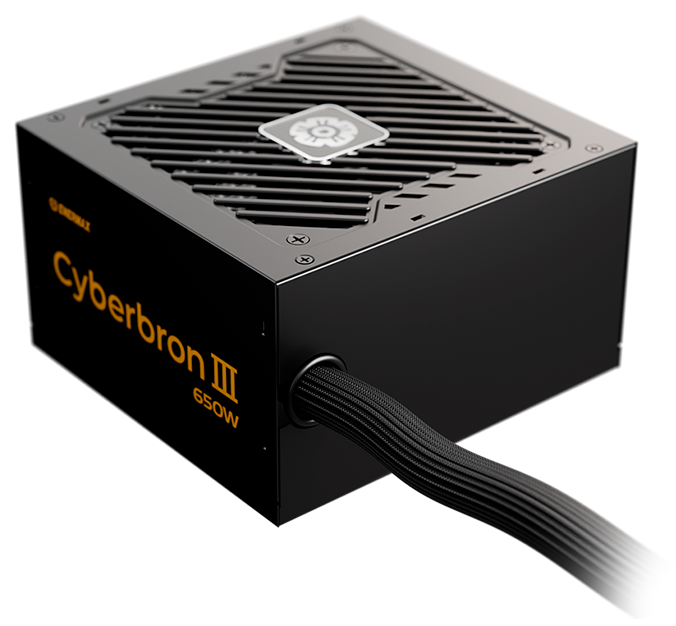

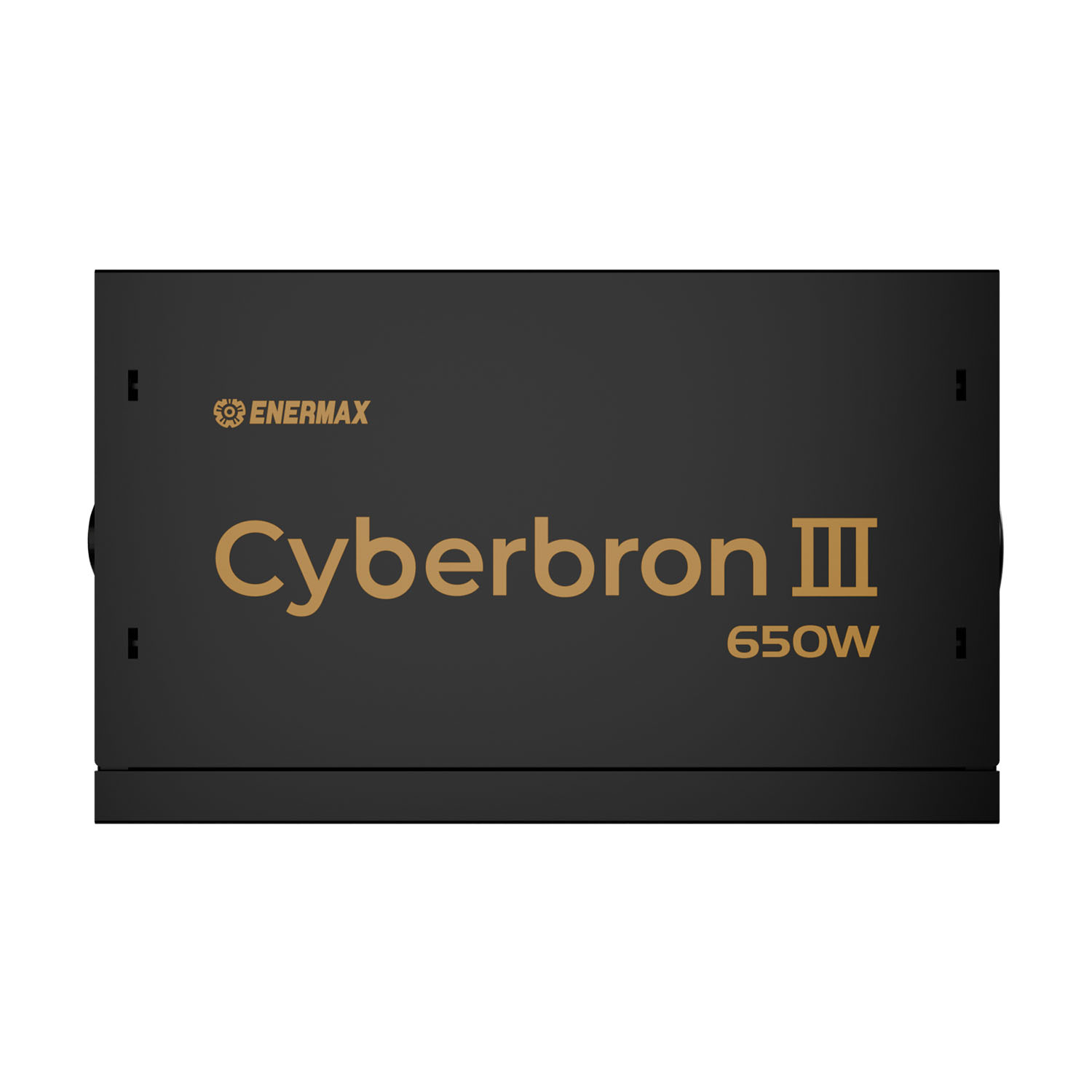

Cyberbron III 650 Watt 80 PLUS Bronze Non-Modular Power Supply

▪ 80 PLUS® Bronze Certified Power Supply
▪ Integrated with ATX 3.1
▪ Japanese Primary Capacitors
▪ DC to DC Circuit
▪ 120mm FDB Fan
• Non-Modular Design

ATX 3.1 NON-MODULAR POWER SUPPLY

ENERGY CONSERVATION

80 PLUS^® Bronze certified with 88% efficiency at 50% loading
Better power factor performance with active PFC design

ATX 3.1 READY

Cyberbron III series meets the Intel ATX 3.1 standards, reaches 60% low load efficiency and complies with required power supply timing standards.

The 750W model provides one 450W 12V-2x6 cable and
850W model provides one 600W 12V 2x6 cable.

2X Total Power Excursion

3X GPU Power Excursion

SILENT OPERATION

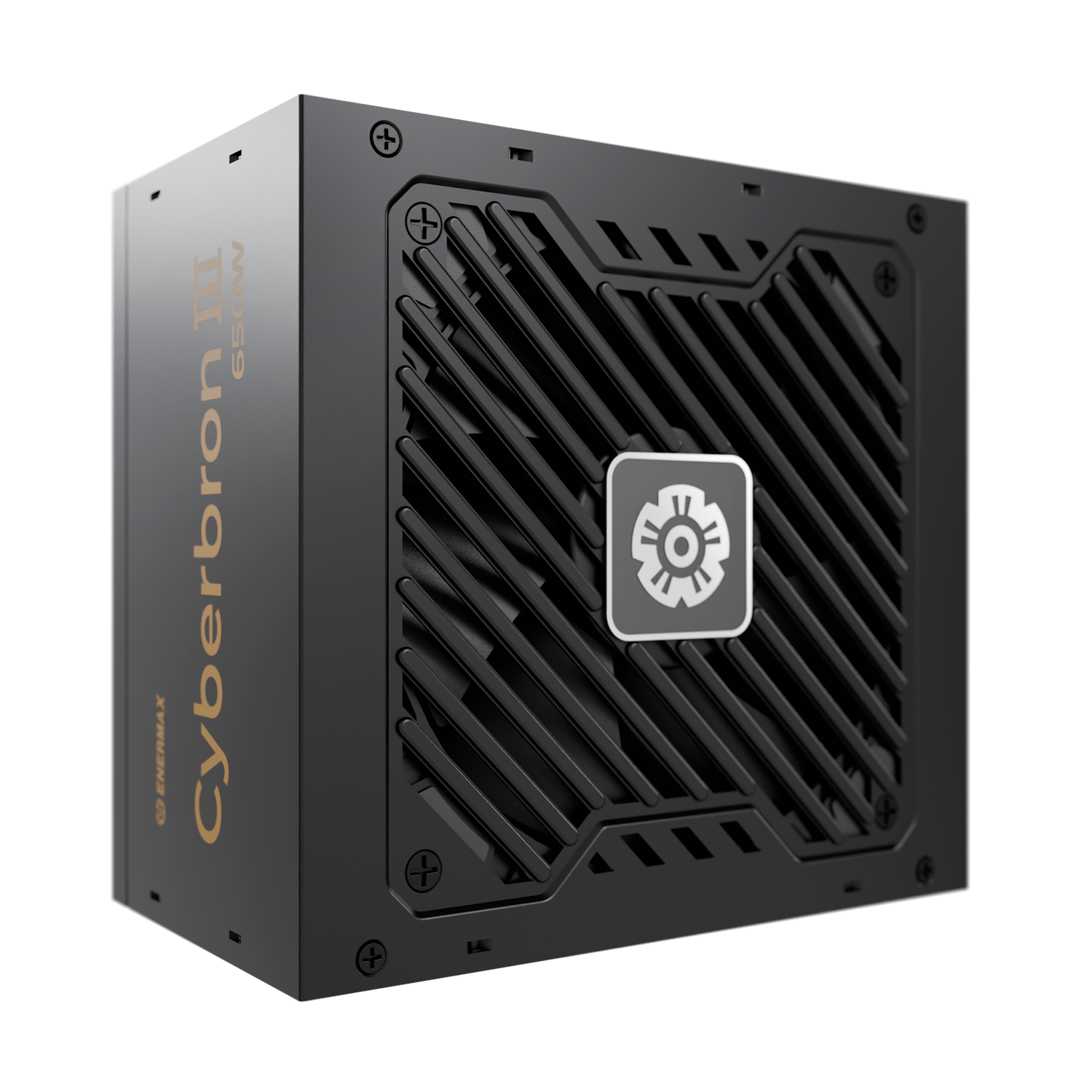

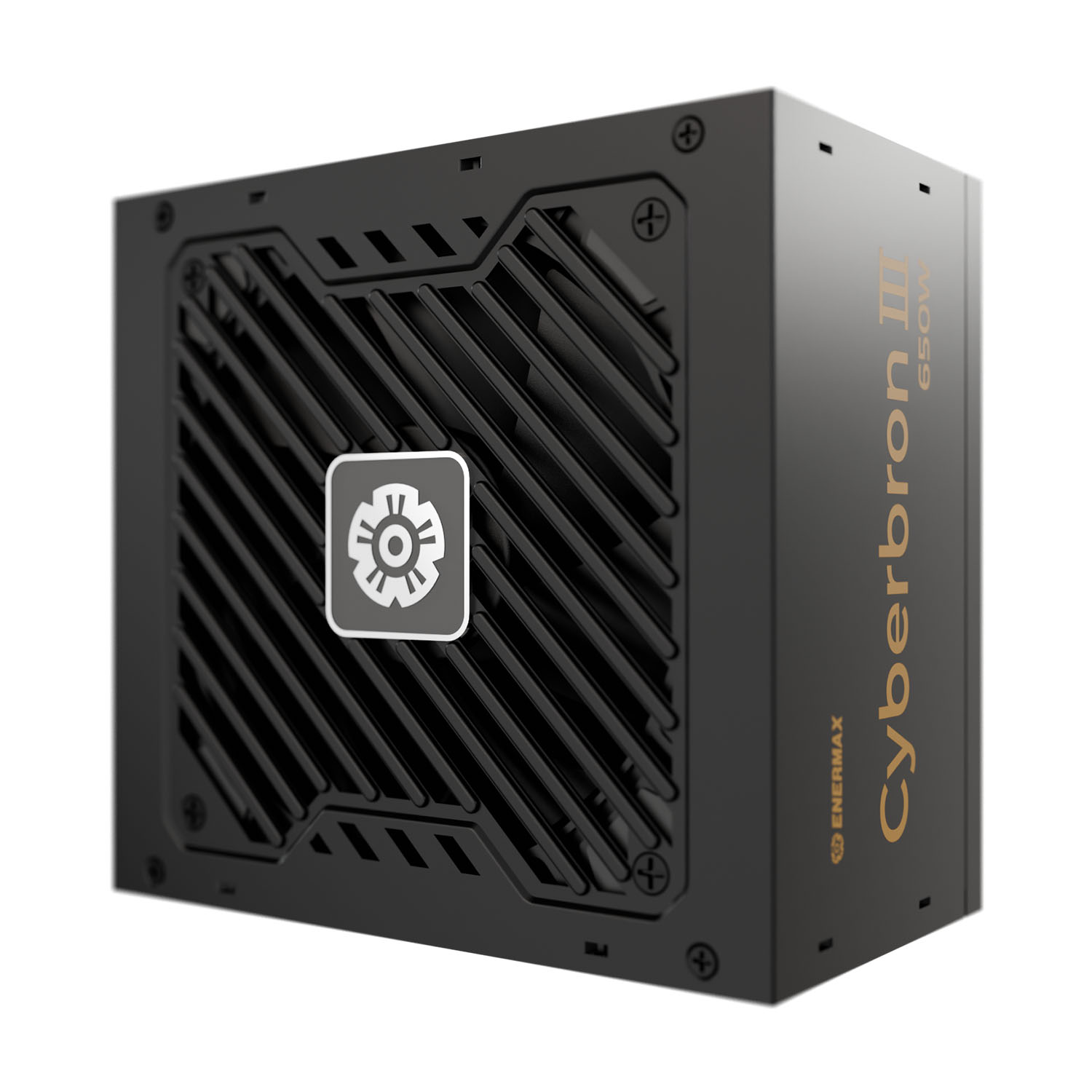

120mm FDB fan provides an ultra-silent user experience

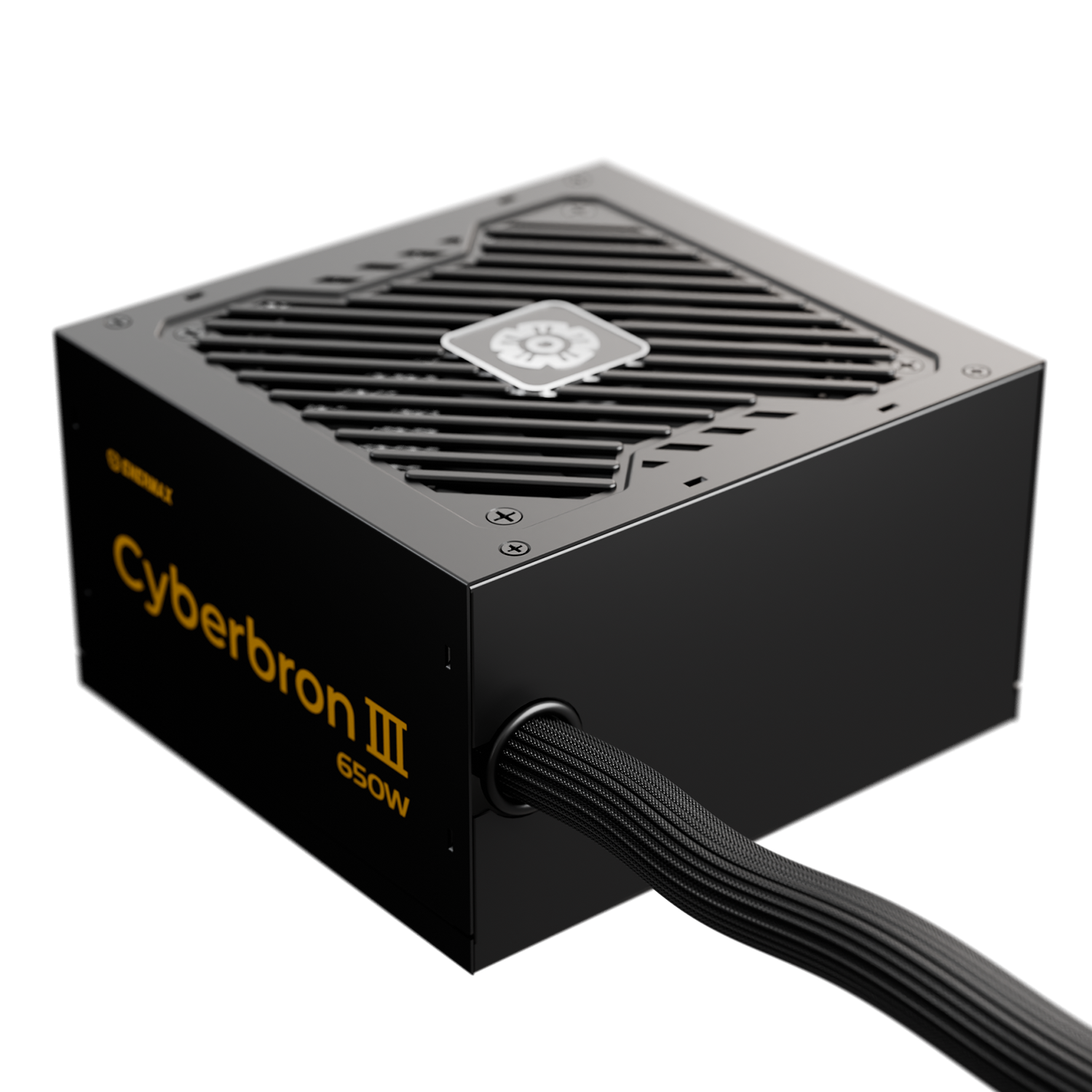

NON-MODULAR DESIGN WITH MESH-SLEEVED CABLES

Non-modular design with essential cables for easy system assembly.

JAPANESE PRIMARY CAPACITORS

High-quality Japanese primary capacitors provide the power supply's durability and ensure the Cyberbron III series is stable and reliable.

SINGLE RAIL & DC TO DC DESIGN

Delivers stable DC output and supports high-end graphics cards and processors.

Total Power	650W
AC Input	100-240VAC, 50-60Hz, 10-5A
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
	20A	20A	54A	0.3A	2.5A
	130W		648W	3.6W	12.5W

Cyberbron III SINGLE RAIL & DC TO DC DESIGN - 2

INDUSTRIAL SAFETY STANDARDS

Over Current
Protection
Over Voltage
Protection
Under Voltage
Protection
Over Power
Protection
Over Temperature
Protection
Short Circuit
Protection

DIMENSIONS

Unit: mm

Connect Type	Connector Quantity		Cable Quantity	Cable Length
Motherboard 24 (20+4)pin	1		1	55cm
CPU(4+4)Pin + (4+4)Pin	2		1	60+15cm
PCIe (6+2) pin + (6+2) pin	2		2	50+15cm
2 x SATA + 4P Molex	SATA: 4 4P Molex: 2	SATA Molex	2	40+15+15cm

EMB650EWT-NAC
ATX Motherboard 24 (20+4)pin	1 [ 1 x 55cm ]
CPU 4+4 pin	2 [ 1 x 65/15cm ]
PCIe 6+2 pin	2 [ 1 x 50/15cm ]
2 x SATA + 1 x 4P Molex	4 + 2 [ 2 x 45/15/15cm ]

Notice:
For users looking to put in high-end, power-demanding GPU cards, please connect the 6 / 6+2P PCIe connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system, including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration, and any damage to the power supply as a result of it will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please note that overloading could cause the connector or wire meltdown and could void the warranty.

General Data

80 PLUS Efficiency	Bronze
Modular	Non-modular
Cable type	Individual Mesh-Sleeved Cable
Total power (W)	650
Input Voltage (V)	100-240
Input Current (A)	10-5
Input Frequency (Hz)	50-60
Fan size (mm)	120
Operating temperature (°C)	40
MTBF (hours)	>100K
Protection	OCP, OVP, UVP, OPP, OTP, SCP
Dimension (D x W x H), (mm)	? TBD

Output

+3.3V(A)	20
+5V(A)	20
+12V1(A)	54
-12V(A)	0.3
+5Vsb(A)	2.5
Combined Wattage 12V (W)	650
Combined Wattage 3.3V + 5V(W)	130

Shipping Information

EAN code	4713157729149
UPC code	819315029145
Box dimensions (D x W x H), (mm)	? TBD
Gross Weight / unit (kg)	? TBD
