CyberG II 750 Watt 80 PLUS Gold Non-Modular Power Supply

▪ Integrated with Intel ATX 3.1
▪ Non-Modular 80 PLUS® Gold Certified
▪ Offering a 600W 12V-2x6 connector
▪ Industrial-Grade 100% Japanese Capacitors
▪ 120mm Sleeve Bearing Fan
▪ All Black Flat Cable Design

COMPARE Compare List (0)
cyberg ii
cyberg ii
cyberg ii logo

80 PLUS GOLD ATX 3.1 750W Power Supply

cyberg ii Features icon
cyberg ii 80-PLUS

80 PLUS® GOLD CERTIFIED

CyberG II 750W power supply is 80 PLUS®  Gold certified with efficiency up to 93% on standard loading.

ATX 3.1 READY

CyberG II 750W power supply meets the Intel ATX 3.1 standards and can support 2x total power excursion and 3x GPU power excursion to ensure top-notch performance of power hungry graphics cards.

2X Total Power Excursion
3X GPU Power Excursion
cyberg ii ATX 3.1 READY
cyberg ii 100% JAPANESE CAPACITORS

100% JAPANESE CAPACITORS

CyberG II 750W power supply incorporates 100% industrial-grade Japanese capacitors with high-quality materials and manufacturing processes, ensuring stable and consistent performance.

CERTIFIED FOR OPERATION AT 5000M ALTITUDE AREA

CyberG II 750W power supply is designed with high-quality components and optimized layout for superior insulation and cooling performance. It can continually operate at 40°C and at altitudes up to 5,000 meters, making it suitable for a wide range of environments.

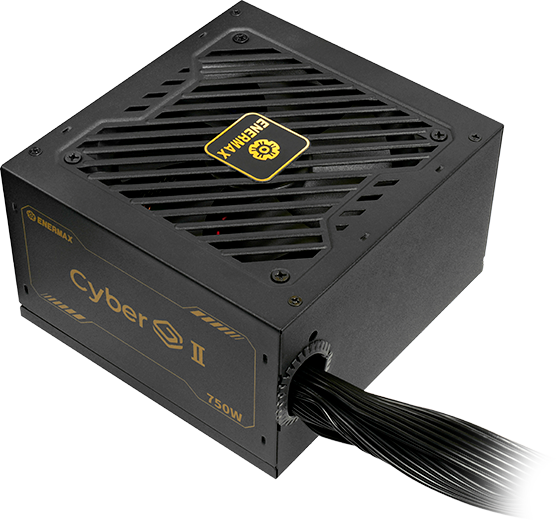

NON-MODULAR BLACK FLAT CABLE DESIGN

CyberG II 750W power supply comes with non-modular black flat cables, designed to make cable installation an easy task.

cyberg ii NON-MODULAR BLACK FLAT CABLE DESIGN

HEAVY-DUTY INDUSTRIAL-GRADE PROTECTIONS

  • CyberG II power supply with protection mechanism icon-1

    Over Current
    Protection

  • CyberG II power supply with protection mechanism icon-2

    Over Voltage
    Protection

  • CyberG II power supply with protection mechanism icon-3

    Under Voltage
    Protection

  • CyberG II power supply with protection mechanism icon-3

    Over Power
    Protection

  • CyberG II power supply with protection mechanism icon-4

    Over Temperature
    Protection

  • CyberG II power supply with protection mechanism icon-5

    Short Circuit
    Protection

Non-Modular Flat Cables



  Model Name ERV650G-AHG-NAC
ERV650G-AHG-NAV
ERV750G-AHG-NAC
ERV750G-AHG-NAV
ERV850G-AHG-NAC
ERV850G-AHG-NAV
ERV1000G-AHG-NAC
ERV1000G-AHG-NAV
  Wattage 650W 750W 850W 1000W
ATX Motherboard 20+4Pin
/ 60cm
cyberg ii power supply cables icon-1 1 1 1 1
CPU 4+4Pin
/ 65cm
cyberg ii power supply cables icon-2 0 0 0 2
CPU (4+4)Pin+(4+4)Pin
/ 60+15cm
cyberg ii power supply cables icon-3 1 1 1 0
PCIE (6+2)Pin
/ 60cm
cyberg ii power supply cables icon-4 0 0 0 1
PCIE (6+2)Pin+(6+2)Pin
/ 55+15cm
cyberg ii power supply cables icon-5 1 1 1 1
12V-2x6 (12+4)Pin
/ 60cm
cyberg ii power supply cables icon-6 0
(600W)
1
(600W)
1
(600W)
1
(600W)
3*SATA+4P Molex
/ 45+15+15+15cm
cyberg ii power supply cables icon-7 0 1 1 3
2*SATA+2*4P Molex
/ 45+15+15+15cm
cyberg ii power supply cables icon-8 0 1 1 0
2*SATA+4P Molex
/ 45+15+15+15cm
cyberg ii power supply cables icon-9 2 0 0 0

CyberG II (Bulk Pack)

  Model Name ERV650G-AHG-NAC1
ERV650G-AHG-NAV1
ERV750G-AHG-NAC1
ERV750G-AHG-NAV1
ERV850G-AHG-NAC1
ERV850G-AHG-NAV1
  Wattage 650W 750W 850W
ATX Motherboard 24Pin
/ 60cm
cyberg ii power supply cables icon-1 1 1 1
CPU (4+4)Pin+(4+4)Pin
/ 60+15cm
cyberg ii power supply cables icon-3 1 1 1
PCIE (6+2)Pin
/ 60cm
cyberg ii power supply cables icon-4 0 1 0
PCIE (6+2)Pin+(6+2)Pin
/ 55+15cm
cyberg ii power supply cables icon-5 1 1 2
12V-2x6 (12+4)Pin
/ 60cm
cyberg ii power supply cables icon-6 0
(600W)
1
(600W)
1
(600W)
2*SATA+4P Molex
/ 45+15+15cm
cyberg ii power supply cables icon-8 2 0 0
3*4P Molex
/ 45+15+15cm
cyberg ii power supply cables icon-7 0 1 1
3*SATA
/ 45+15+15cm
cyberg ii power supply cables icon-9 0 2 2

Dimensions

Unit: mm

cyberg ii dimension
CyberG II 750W
Cables & Connectors Retail Pack Bulk Pack
ATX Motherboard 20+4 pin 1
[ 1 x 60cm ]
0
[ 0 x 60cm ]
ATX Motherboard 24 pin 0
[ 0 x 60cm ]
1
[ 1 x 60cm ]
CPU 4+4 pin 0
[ 0 x 65cm ]
0
[ 0 x 65cm ]
CPU (4+4)+(4+4) pin 2
[ 1 x 60/15cm ]
2
[ 1 x 60/15cm ]
PCIe 6+2 pin 0
[ 0 x 60cm ]
1
[ 1 x 60cm ]
PCIe (6+2)+(6+2) pin 2
[ 1 x 55/15cm ]
2
[ 1 x 55/15cm ]
12V-2x6 1
[ 1 x 60cm ]
1
[ 1 x 60cm ]
3 x SATA + 1 x 4P Molex 3 + 1
[ 1 x 45/15/15/15cm ]
0
[ 0 x 45/15/15/15cm ]
2 x SATA + 2 x 4P Molex 2 + 2
[ 1 x 45/15/15/15cm ]
0
[ 0 x 45/15/15/15cm ]
2 x SATA + 1 x 4P Molex 0
[ 0 x 45/15/15cm ]
0
[ 0 x 45/15/15cm ]
3 x SATA 0
[ 0 x 45/15/15cm ]
6
[ 2 x 45/15/15cm ]
3 x 4P Molex 0
[ 0 x 45/15/15cm ]
3
[ 1 x 45/15/15cm ]

Notice:
For users looking to put in high-end, power-demanding GPU cards, please connect the 6 / 6+2P PCIe connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system, including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration, and any damage to the power supply as a result of it will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please note that overloading could cause the connector or wire meltdown and could void the warranty.

80 PLUS Efficiency Gold
Modular Non-modular
Cable type Black flat
Total power (W) 750
Input Voltage (V) 100-240
Input Current (A) 10-6
Input Frequency (Hz) 50-60
Fan size (mm) 120
Operating temperature (°C) 40
MTBF (hours) >100K
Protection OCP, OVP, UVP, OPP, OTP, SCP
Dimension (D x W x H), (mm) 140 x 150 x 86
+3.3V(A) 20
+5V(A) 20
+12V1(A) 62.4
-12V(A) 0.4
+5Vsb(A) 2.5
Combined Wattage 12V (W) 748.8
Combined Wattage 3.3V + 5V(W) 100
EAN code 4713157728944 / 4713157728951
UPC code 819315028940 / 819315028957
Box dimensions (D x W x H), (mm) 310 x 190 x 110
Gross Weight / unit (kg) 1.6
