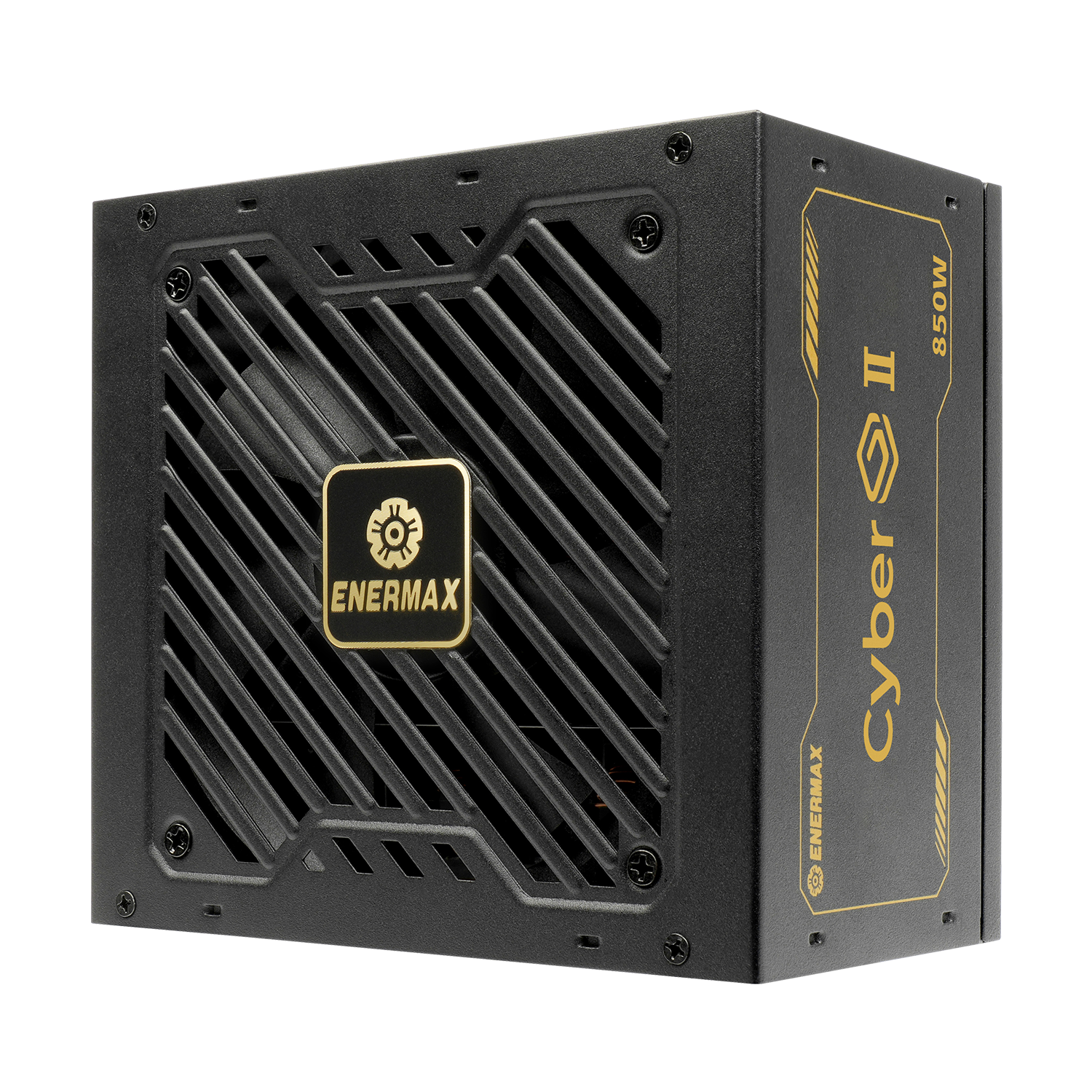

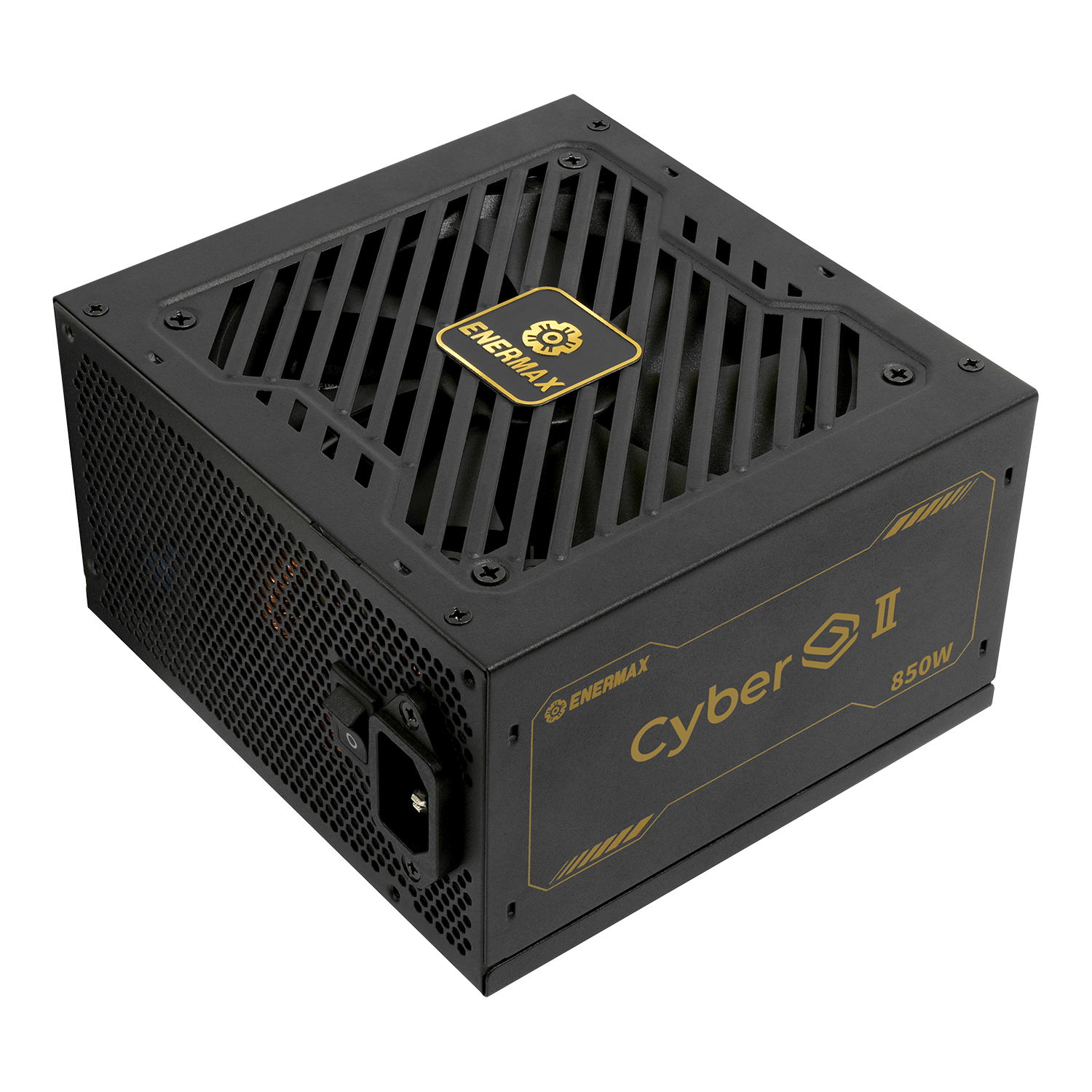

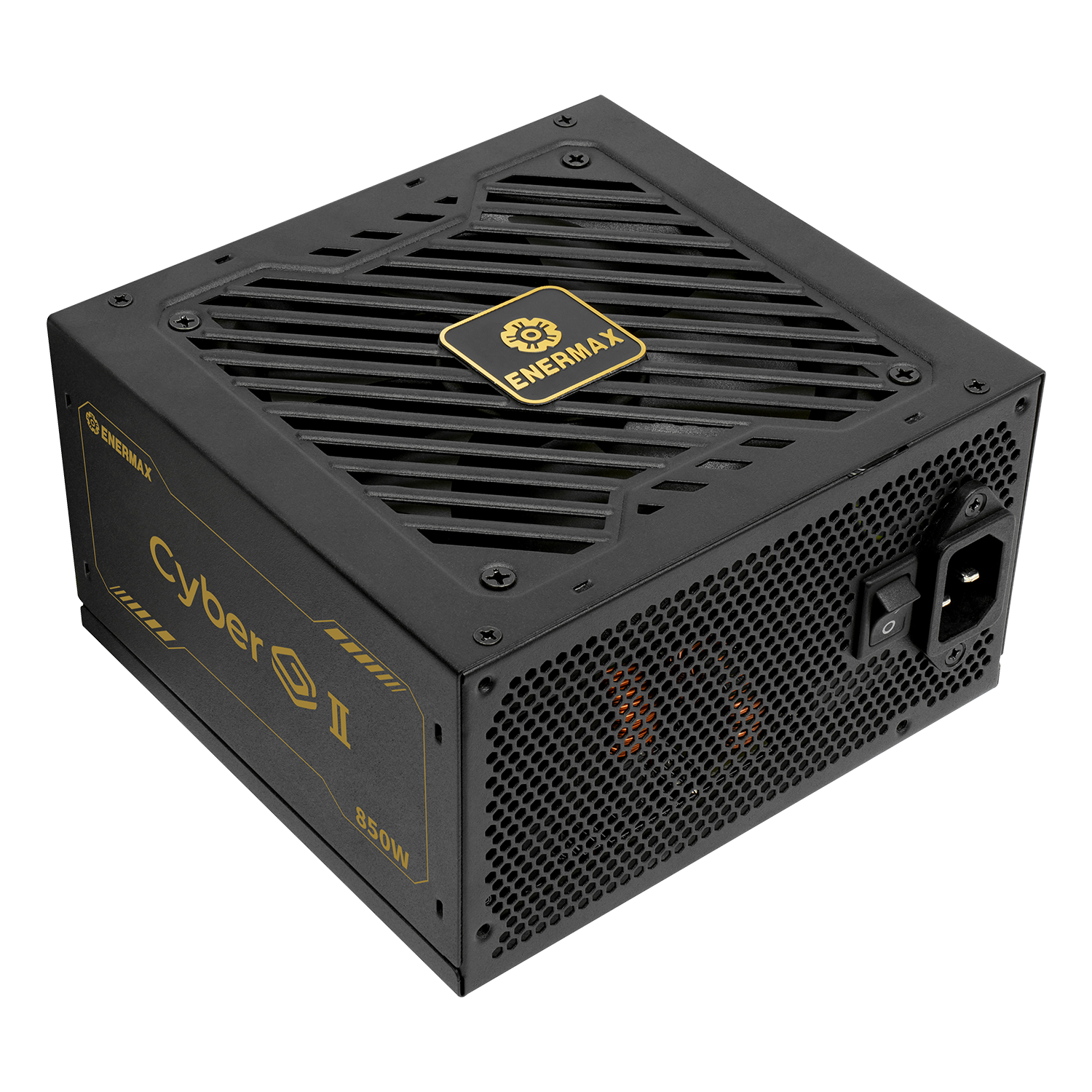

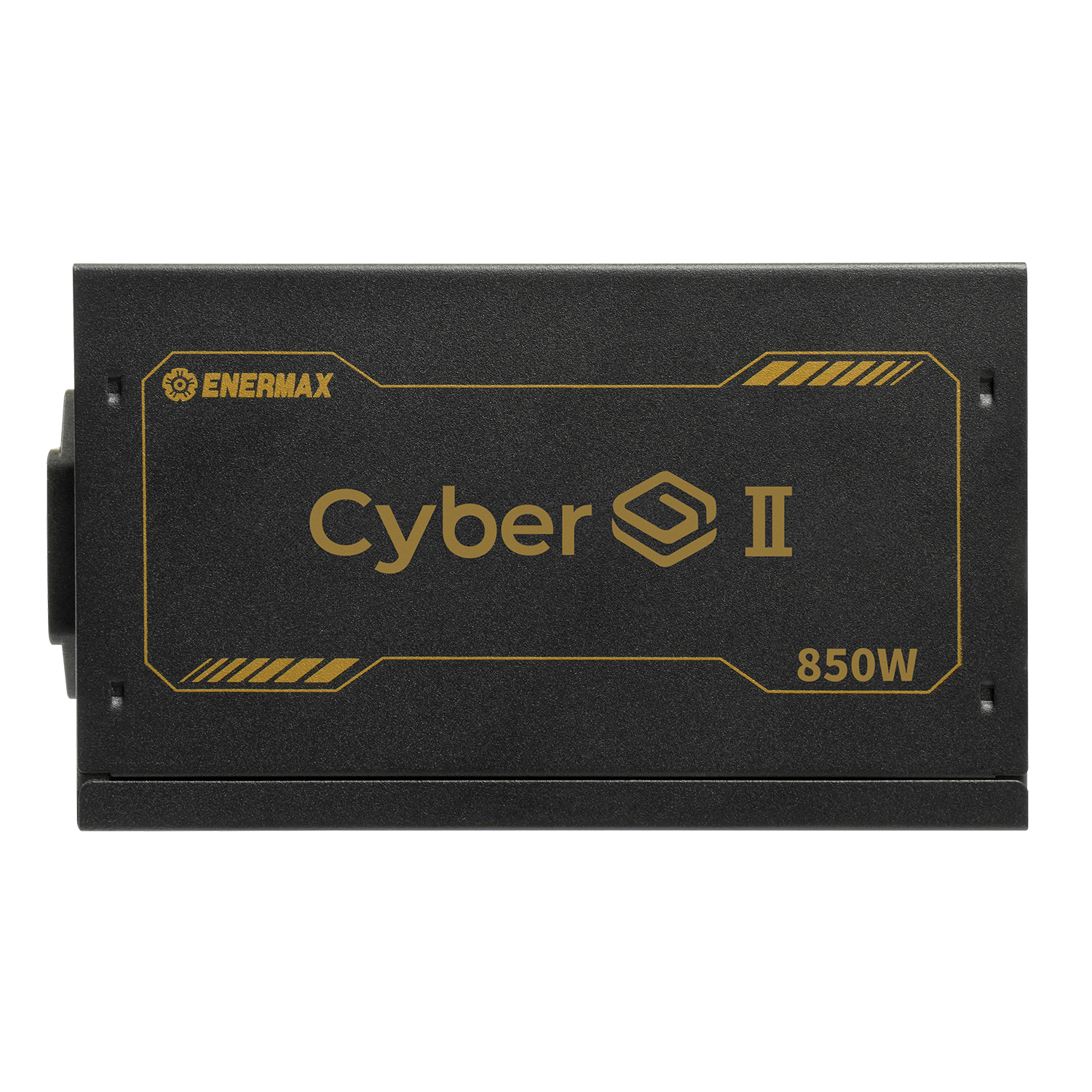

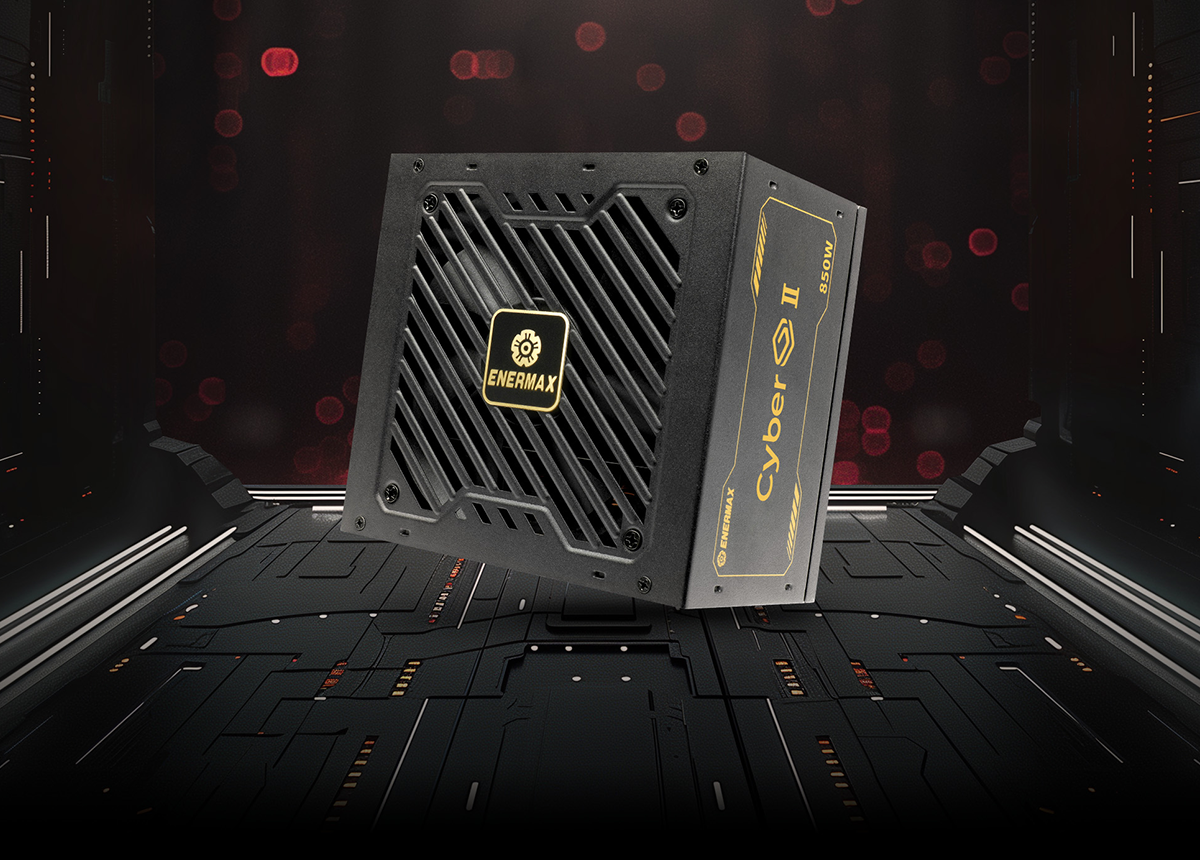

80 PLUS GOLD ATX 3.1 850W Power Supply
80 PLUS® GOLD CERTIFIED
CyberG II 850W power supply is 80 PLUS® Gold certified with efficiency up to 93% on standard loading.
ATX 3.1 READY
CyberG II 850W power supply meets the Intel ATX 3.1 standards and can support 2x total power excursion and 3x GPU power excursion to ensure top-notch performance of power hungry graphics cards.

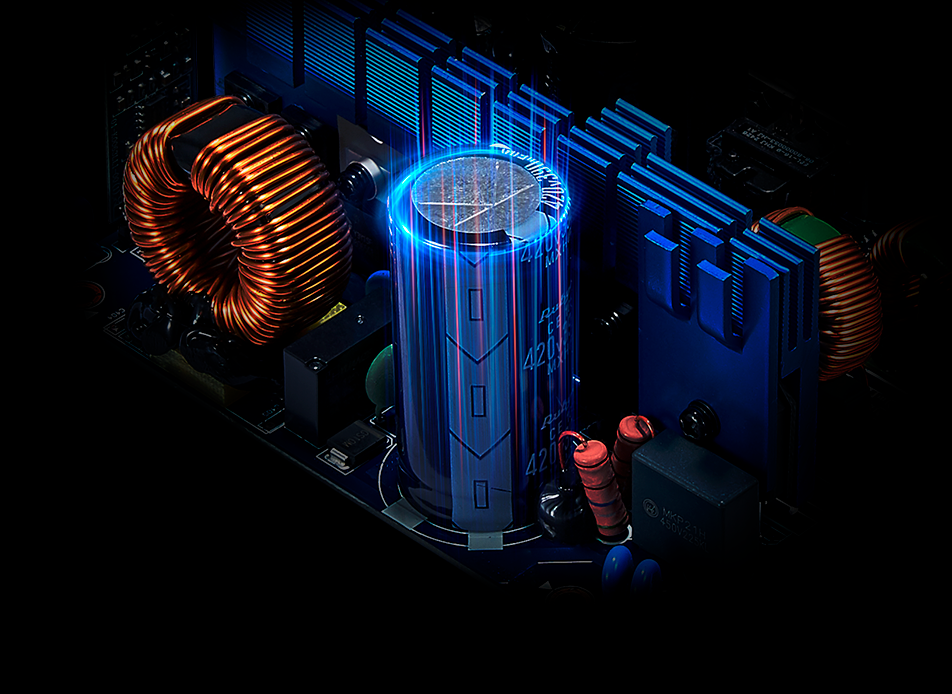

100% JAPANESE CAPACITORS
CyberG II 850W power supply incorporates 100% industrial-grade Japanese capacitors with high-quality materials and manufacturing processes, ensuring stable and consistent performance.
CERTIFIED FOR OPERATION AT 5000M ALTITUDE AREA
CyberG II 850W power supply is designed with high-quality components and optimized layout for superior insulation and cooling performance. It can continually operate at 40°C and at altitudes up to 5,000 meters, making it suitable for a wide range of environments.

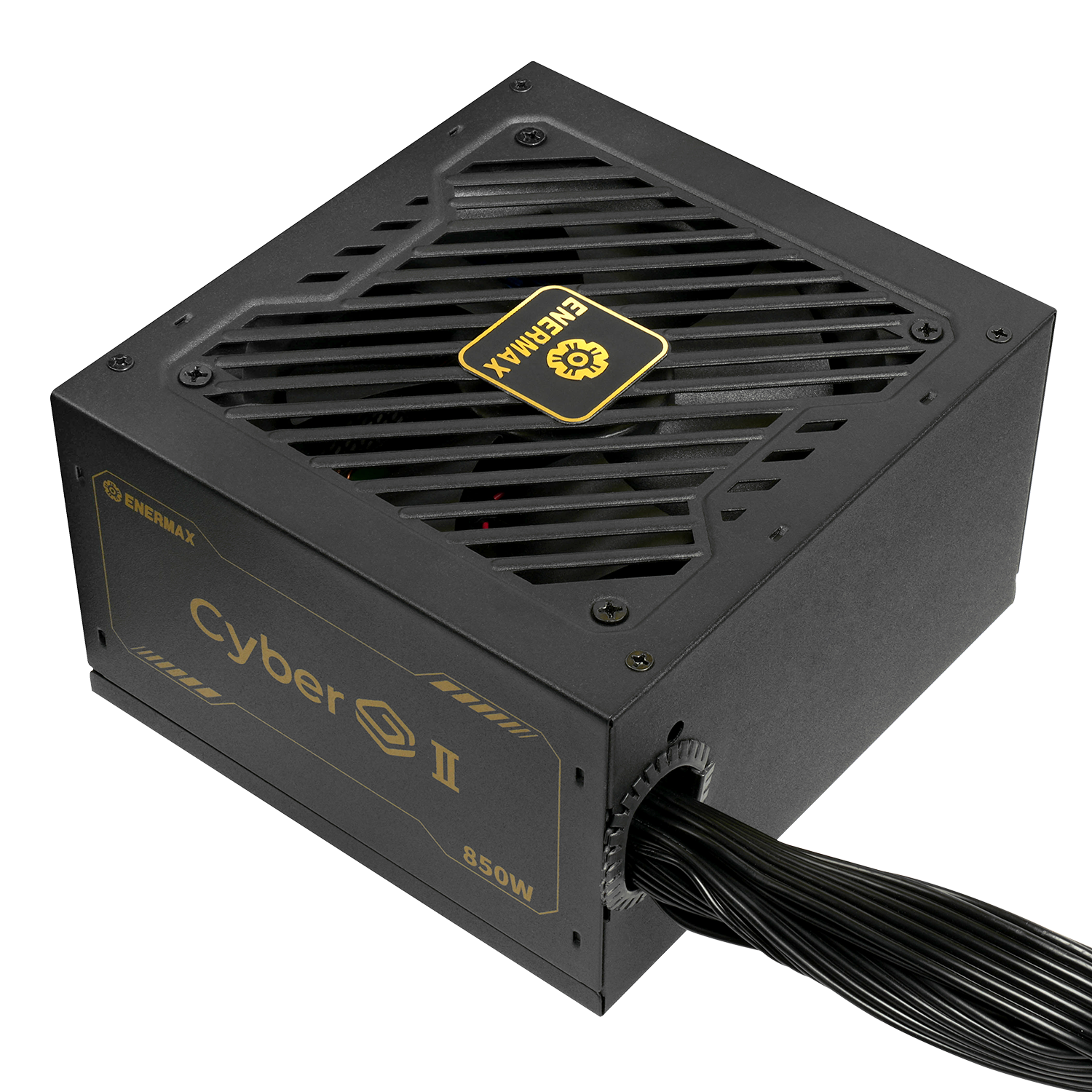

NON-MODULAR BLACK FLAT CABLE DESIGN
CyberG II 850W power supply comes with non-modular black flat cables, designed to make cable installation an easy task.
HEAVY-DUTY INDUSTRIAL-GRADE PROTECTIONS
Over Current
Protection
Over Voltage
Protection
Under Voltage
Protection
Over Power
Protection
Over Temperature
Protection
Short Circuit
Protection
Non-Modular Flat Cables
| Model Name | ERV650G-AHG-NAC ERV650G-AHG-NAV |
ERV750G-AHG-NAC ERV750G-AHG-NAV |
ERV850G-AHG-NAC ERV850G-AHG-NAV |
ERV1000G-AHG-NAC ERV1000G-AHG-NAV |
|
| Wattage | 650W | 750W | 850W | 1000W | |

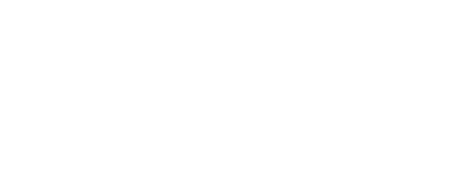

| ATX Motherboard 20+4Pin / 60cm |
 |
1 | 1 | 1 | 1 |

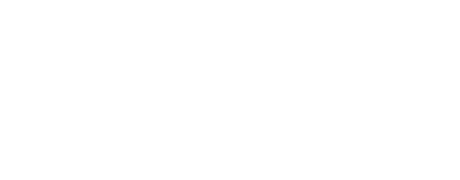

| CPU 4+4Pin / 65cm |
 |
0 | 0 | 0 | 2 |

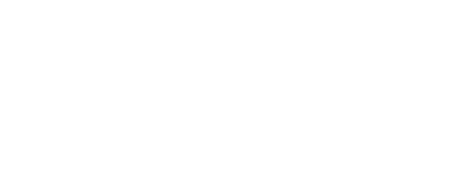

| CPU (4+4)Pin+(4+4)Pin / 60+15cm |
 |
1 | 1 | 1 | 0 |

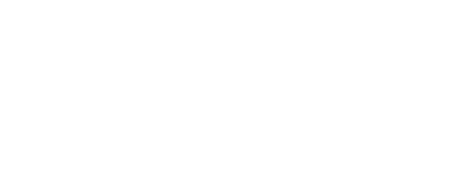

| PCIE (6+2)Pin / 60cm |
 |
0 | 0 | 0 | 1 |

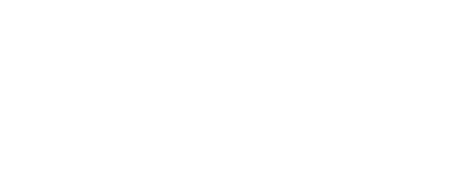

| PCIE (6+2)Pin+(6+2)Pin / 55+15cm |
 |
1 | 1 | 1 | 1 |

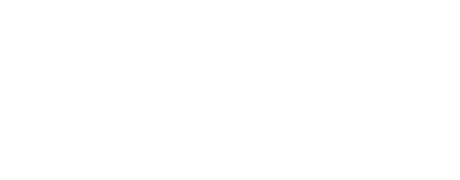

| 12V-2x6 (12+4)Pin / 60cm |
 |
0 (600W) |
1 (600W) |
1 (600W) |
1 (600W) |

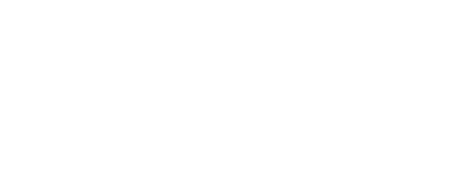

| 3*SATA+4P Molex / 45+15+15+15cm |
 |
0 | 1 | 1 | 3 |

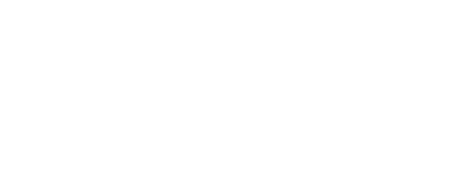

| 2*SATA+2*4P Molex / 45+15+15+15cm |
 |
0 | 1 | 1 | 0 |
| 2*SATA+4P Molex / 45+15+15+15cm |
 |
2 | 0 | 0 | 0 |
CyberG II (Bulk Pack)
| Model Name | ERV650G-AHG-NAC1 ERV650G-AHG-NAV1 |
ERV750G-AHG-NAC1 ERV750G-AHG-NAV1 |
ERV850G-AHG-NAC1 ERV850G-AHG-NAV1 |
|
| Wattage | 650W | 750W | 850W | |
| ATX Motherboard 24Pin / 60cm |
|
1 | 1 | 1 |
| CPU (4+4)Pin+(4+4)Pin / 60+15cm |
|
1 | 1 | 1 |
| PCIE (6+2)Pin / 60cm |
|
0 | 1 | 0 |
| PCIE (6+2)Pin+(6+2)Pin / 55+15cm |
|
1 | 1 | 2 |
| 12V-2x6 (12+4)Pin / 60cm |
|
0 (600W) |
1 (600W) |
1 (600W) |

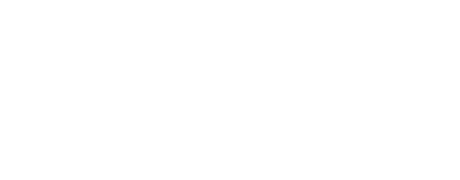

| 2*SATA+4P Molex / 45+15+15cm |
 |
2 | 0 | 0 |

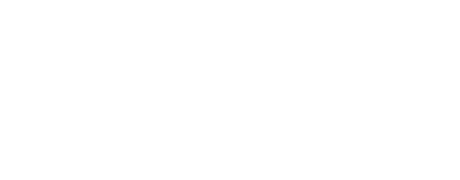

| 3*4P Molex / 45+15+15cm |
 |
0 | 1 | 1 |

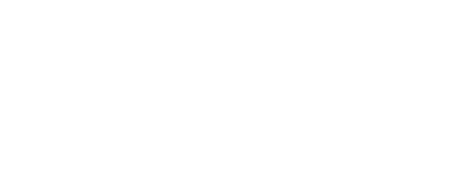

| 3*SATA / 45+15+15cm |
 |
0 | 2 | 2 |

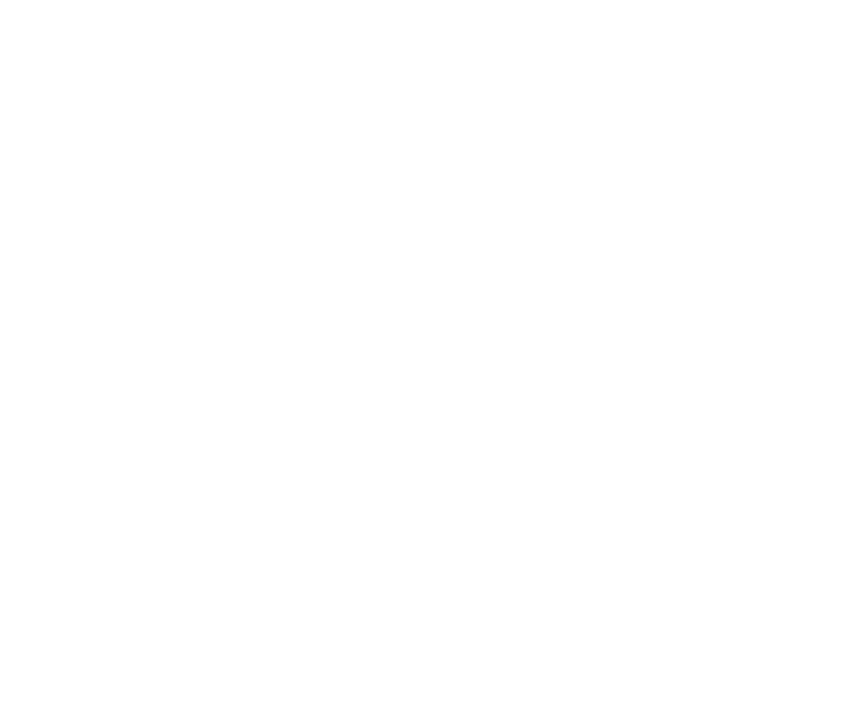

Dimensions
Unit: mm
