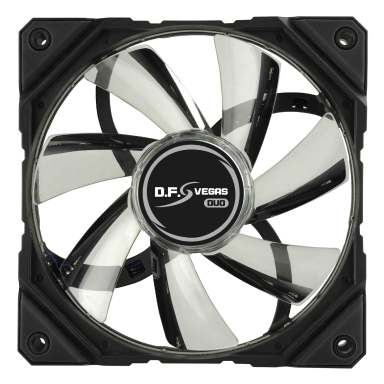

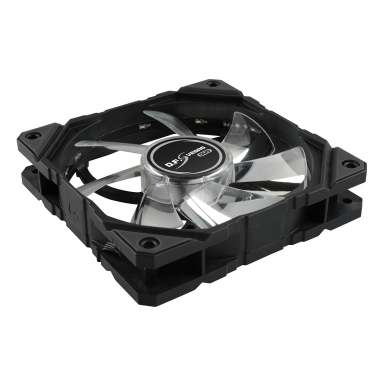

D.F.VEGAS DUO

‧ Exclusive self-cleaning solution

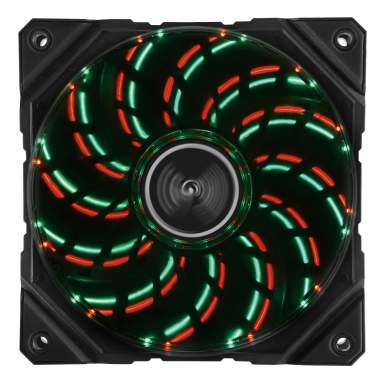

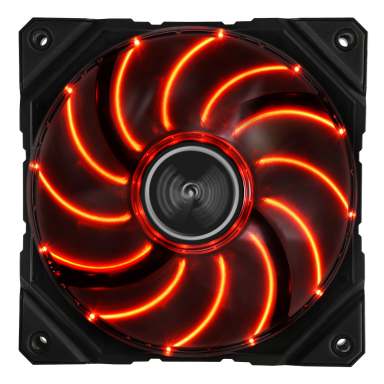

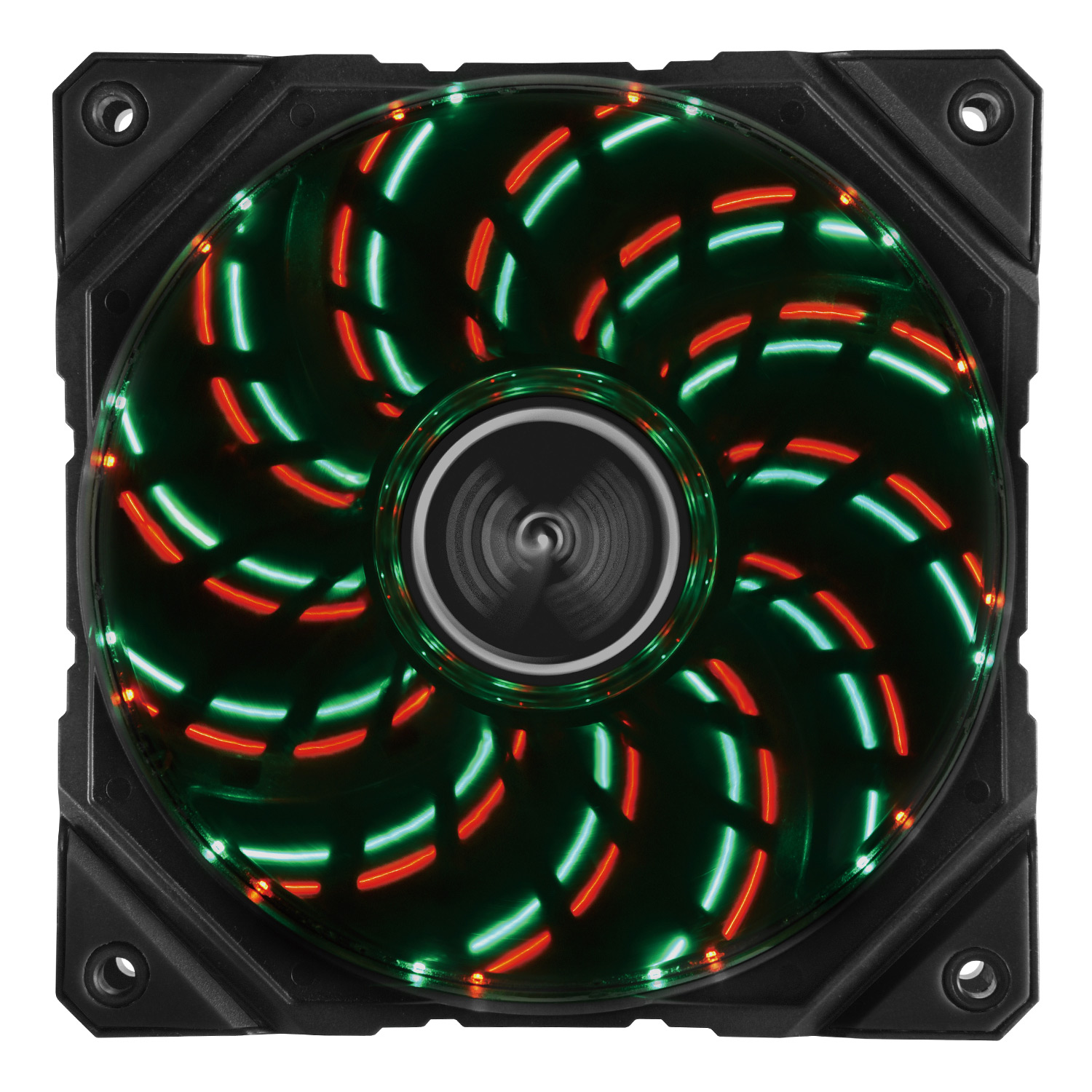

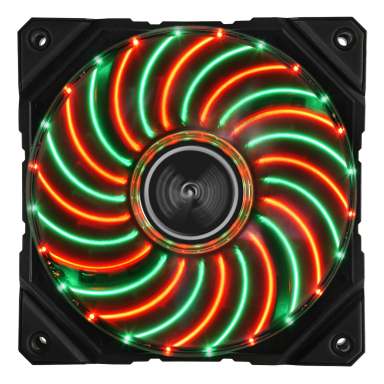

‧ Stunning Red+Green lighting effects
‧ Perfect for chassis and gaming rigs

Patented DFR™ technology* instantly blows away the dust to prolong the lifespan

* Automatic LED self-testing will be activated during the DFR mode

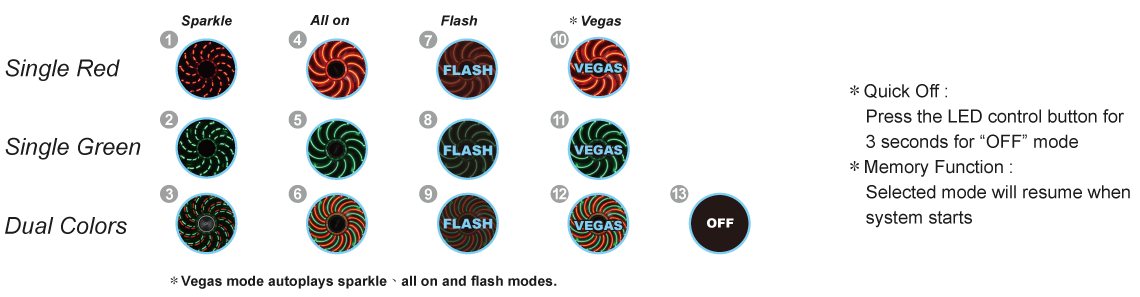

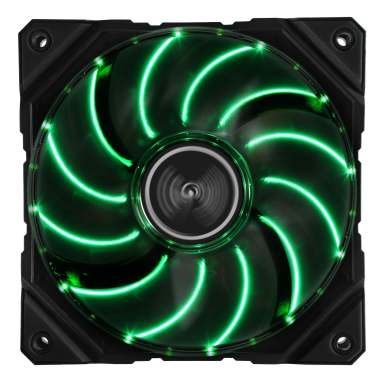

Patented Circular-type LED with 12 diodes and 5 VEGAS LED modes




Focus Blades with light reflex strips to create exceptional, curved rays of light




Patented APS (Adjustable Peak Speed) control provides 3 peak rpm options

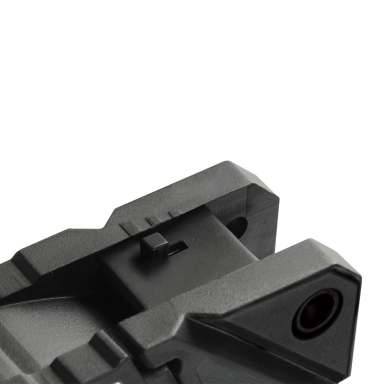

APS control allows users to adjust their preferred fan "PEAK" speed by shifting the speed control. The control switch is located on the side of the frame, making the fan speed adjustment much easier and safer.




PWM speed control keeps your system cool and silent at all time




Patented Twister Bearing technology for long lifetime and low noise

Ultra silence: 16dBA

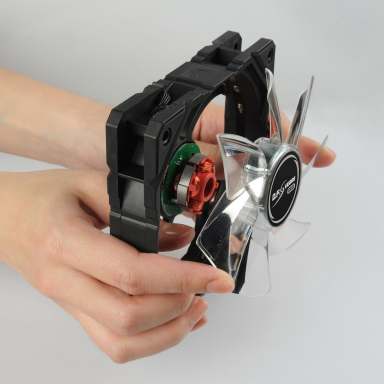

Detachable blade for easy cleaning




Product Introduction

Model UCDFVD12P
Fans/Model 1
Dimension (mm) 120(W) x 120(H) x 25(D)
Speed (RPM) 800 ~ 1100/1300/1500 RPM
Air Flow (CFM) 800 ~ 1100 rpm:33.21 ~ 45.33 CFM
800 ~ 1300 rpm:33.21 ~ 53.66 CFM
800 ~ 1500 rpm:33.21 ~ 61.92 CFM
Air Flow (m³/h) 800 ~ 1100 rpm:56.43 ~ 77.02 m3/h
800 ~ 1300 rpm:56.43 ~ 91.17 m3/h
800 ~ 1500 rpm:56.43 ~ 105.20 m3/h
Static Pressure (mm-H2O) 800 ~ 1100 rpm:0.979 ~ 1.297 mm-H2O
800 ~ 1300 rpm:0.979 ~ 1.425 mm-H2O
800 ~ 1500 rpm:0.979 ~ 1.898 mm-H2O
Fan Maximum Noise (dBA) 800 ~ 1100 rpm:16 ~ 18 dBA
800 ~ 1300 rpm:16 ~ 20 dBA
800 ~ 1500 rpm:16 ~ 22 dBA
Rated Voltage Fan (V) 12V
Rated Current Fan (A) 800 ~ 1100 rpm:0.21 A/
800 ~ 1300 rpm:0.23 A
800 ~ 1500 rpm:0.25 A
MTTF (hours) ≧160,000 @ 25oC
Connector 1 x 4 pin PWM connector , 1 x 4 pin fan power adaptor

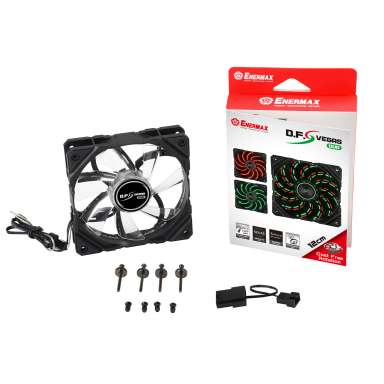

Accessory 8 x screws , 1 x adhesive tape
EAN 4713157722324
UPC 816163008551
Box Dimension 120 x 182 x 28 mm
Gross Weight / unit 0.21 kg
Carton Dimension 490 x 340 x 260 mm
Q'ty / carton 60 pcs
Gross Weight / Carton 12.5kg
