EQUILENCE

  • Model : ECA3510A-BB / ECA3511A-BB
  • Tag :

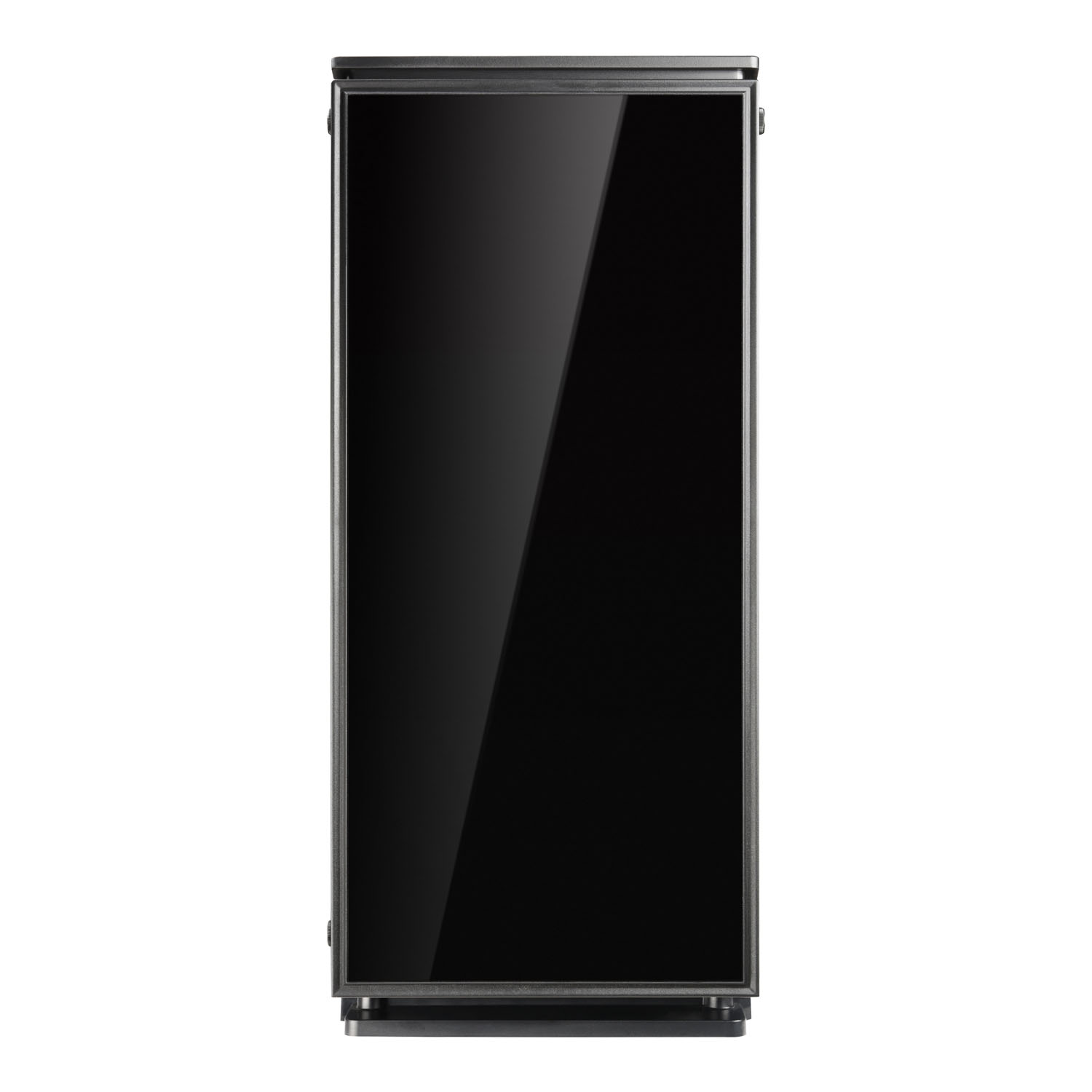

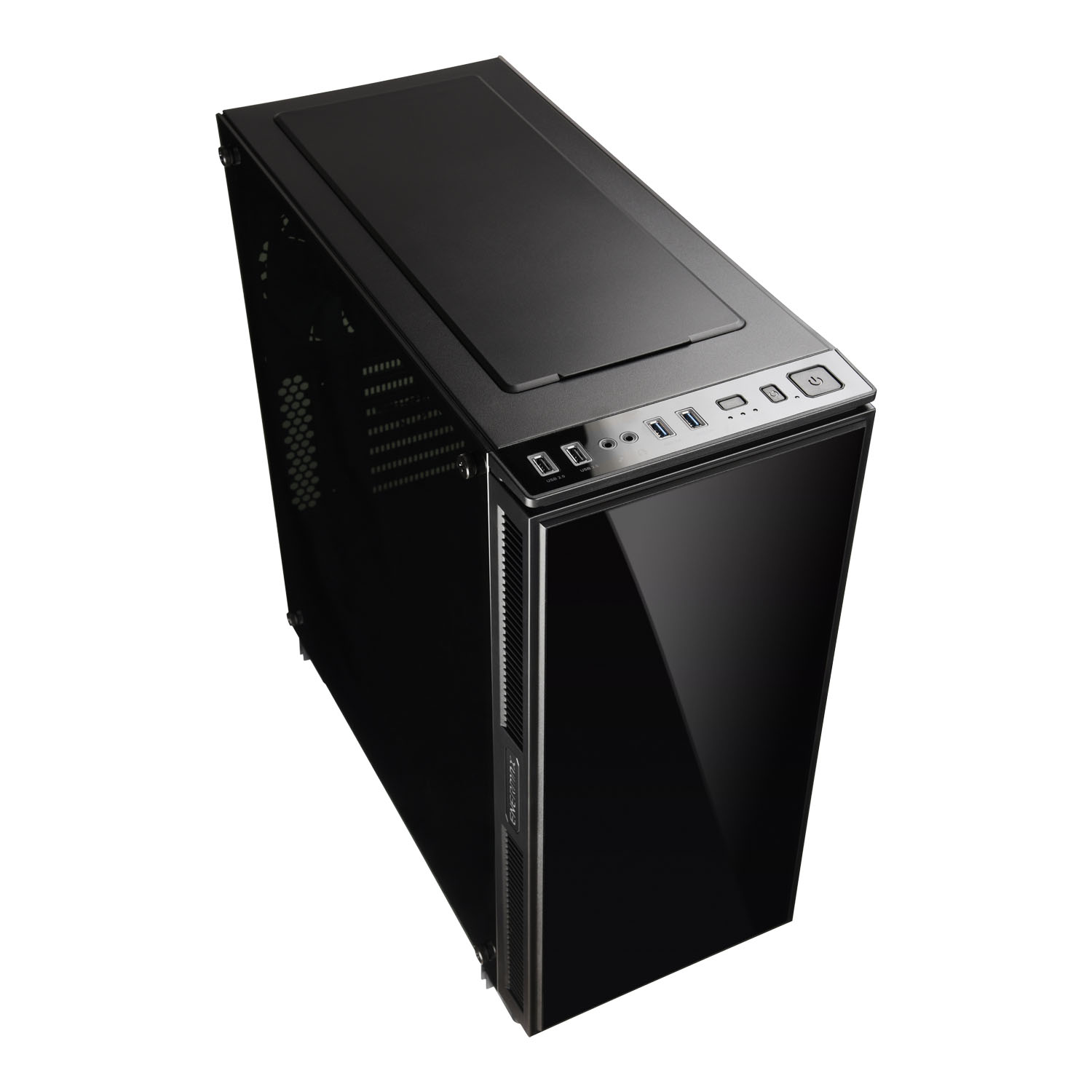

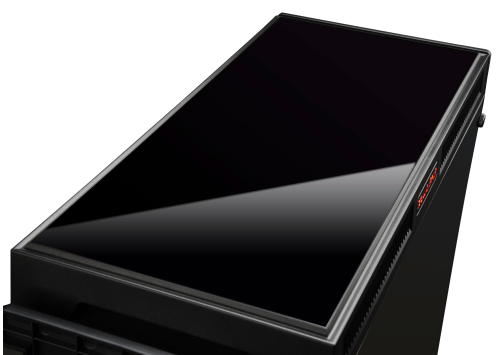

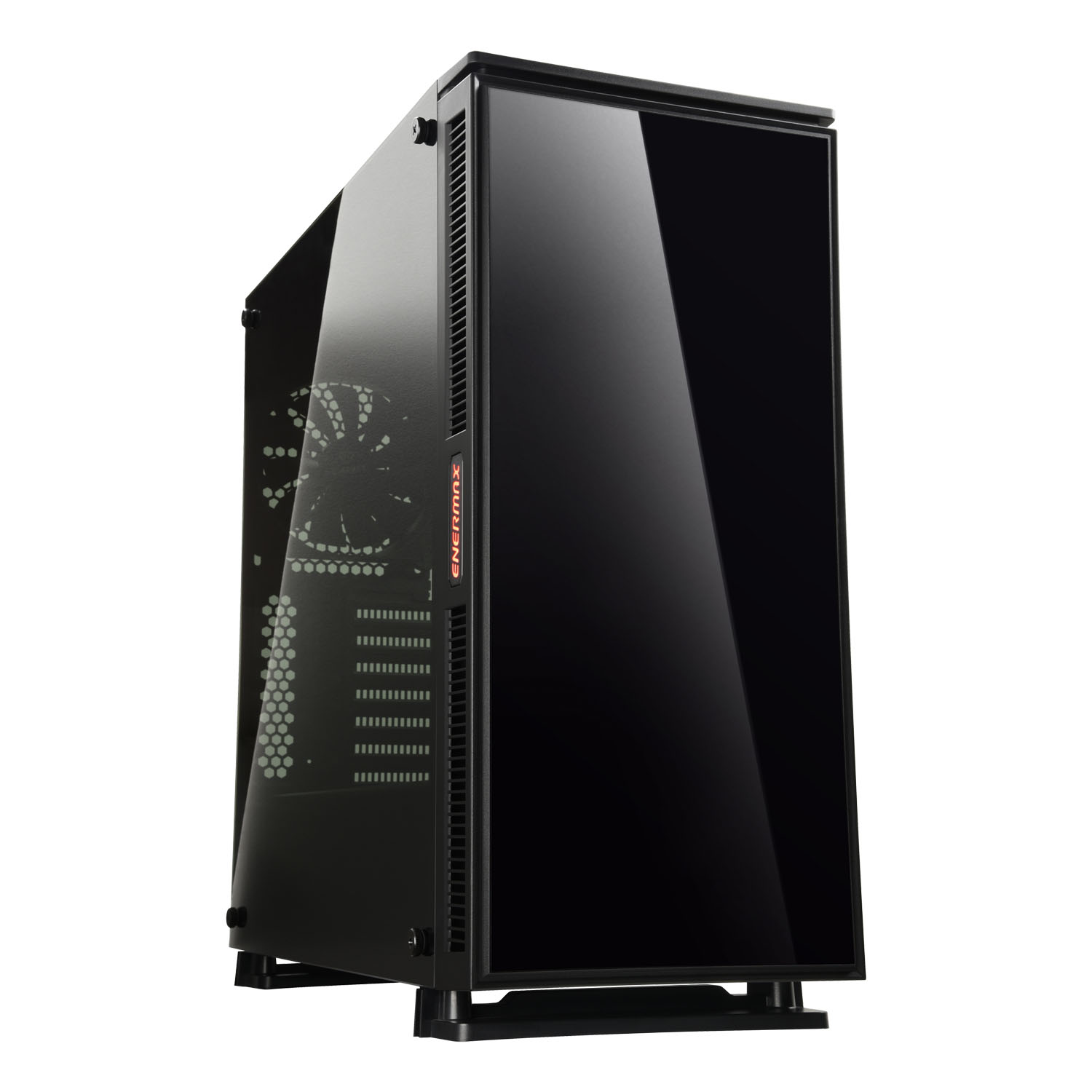

Glossy finish front panel for an exquisite look

EQUILENCE comes with a glossy finish front panel for simple yet refreshing looks.

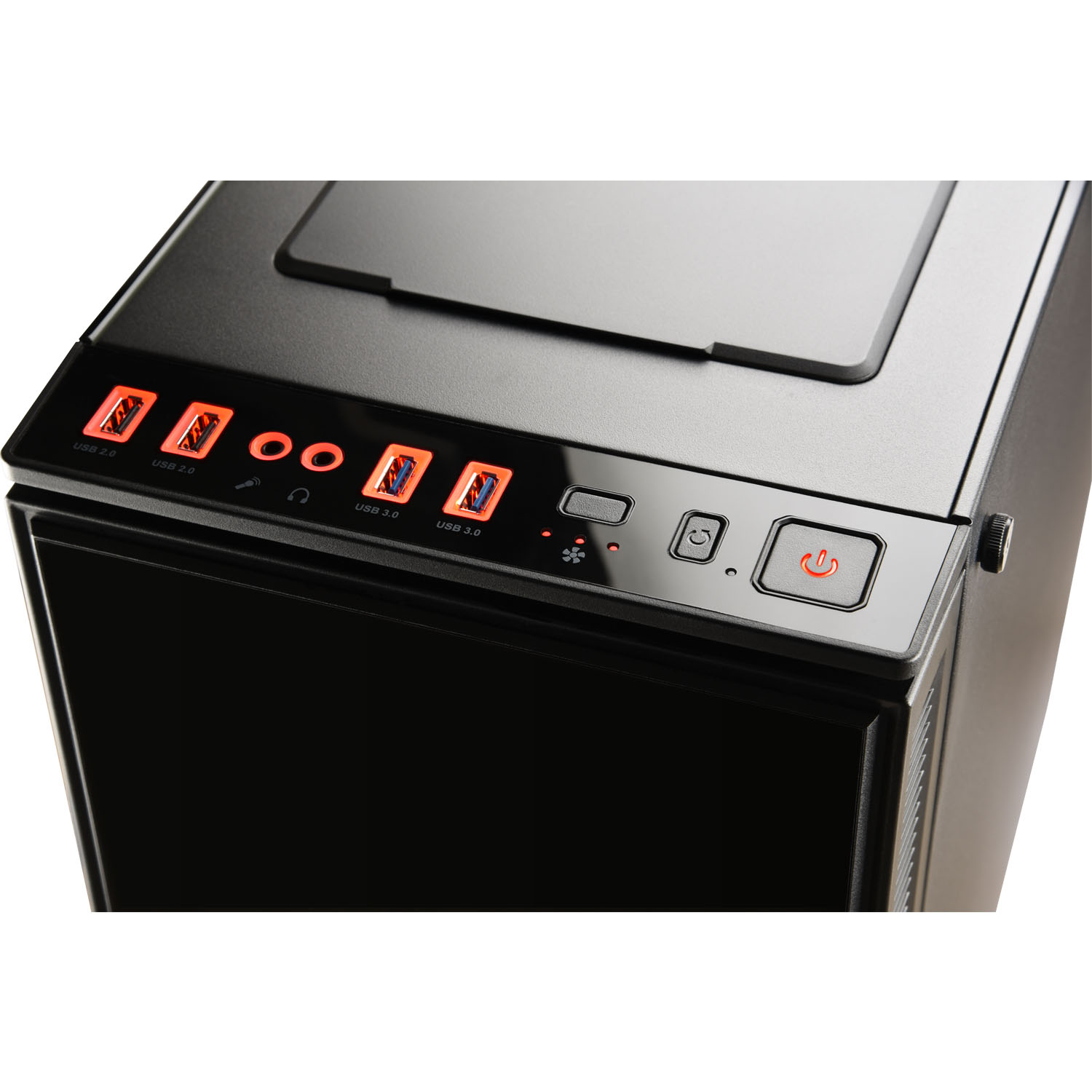

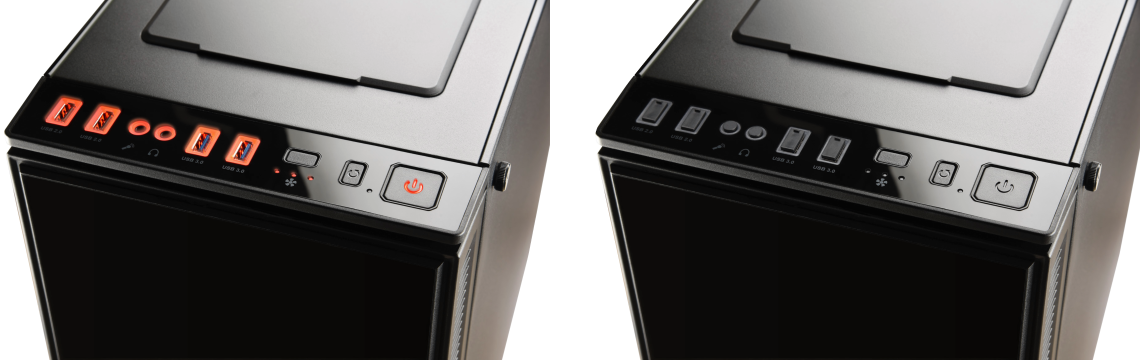

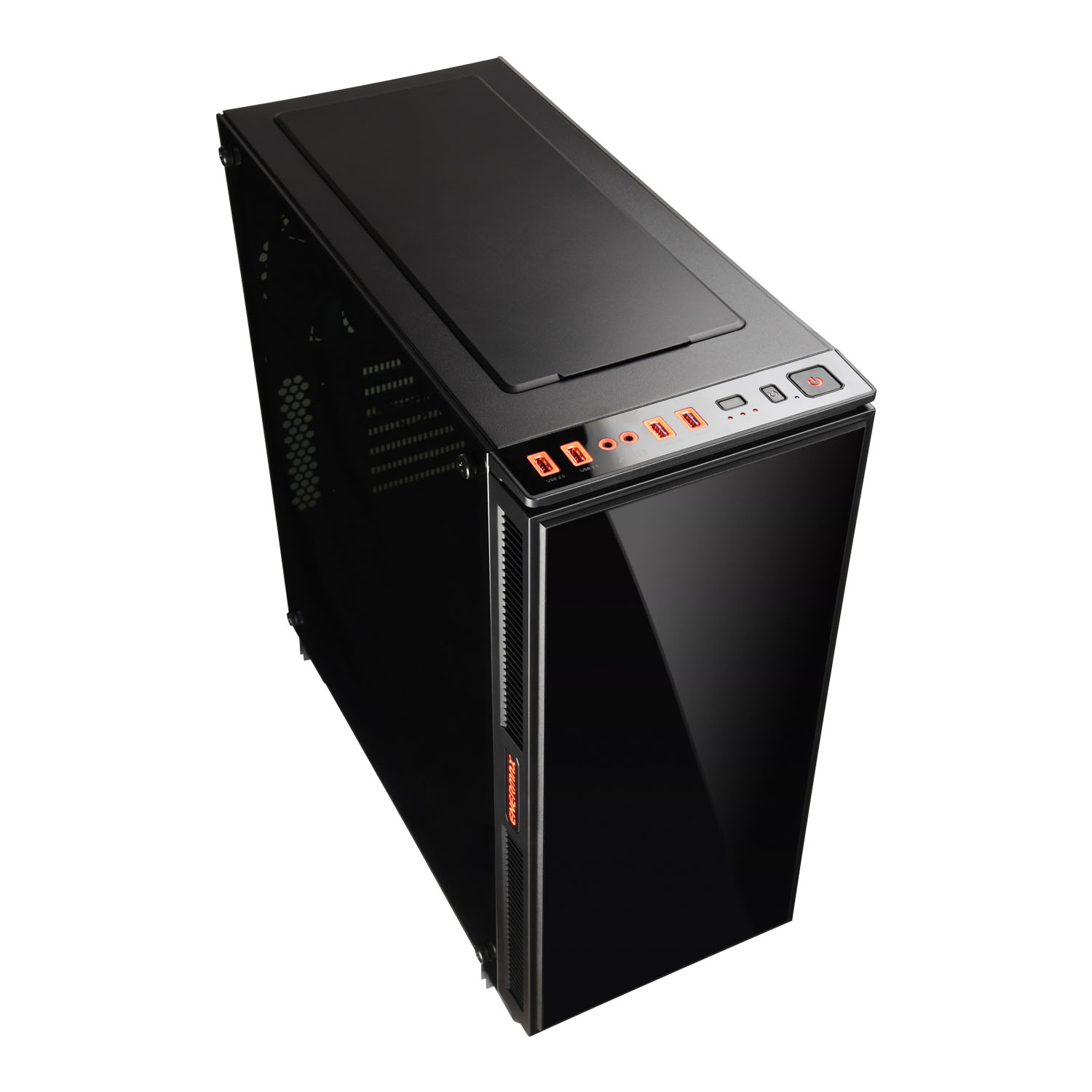

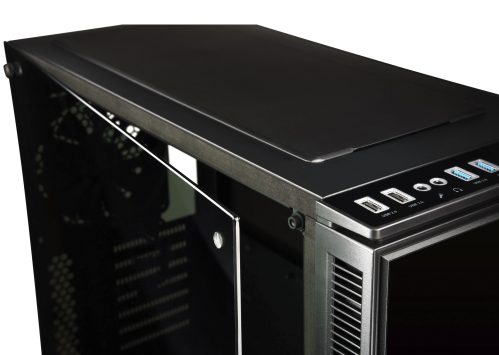

LED backlit I/O panel with anti-dust rubber plugs

Backlit I/O includes 2 x USB3.0, 2 x USB2.0, and HD audio socket; anti-dust plugs are included.

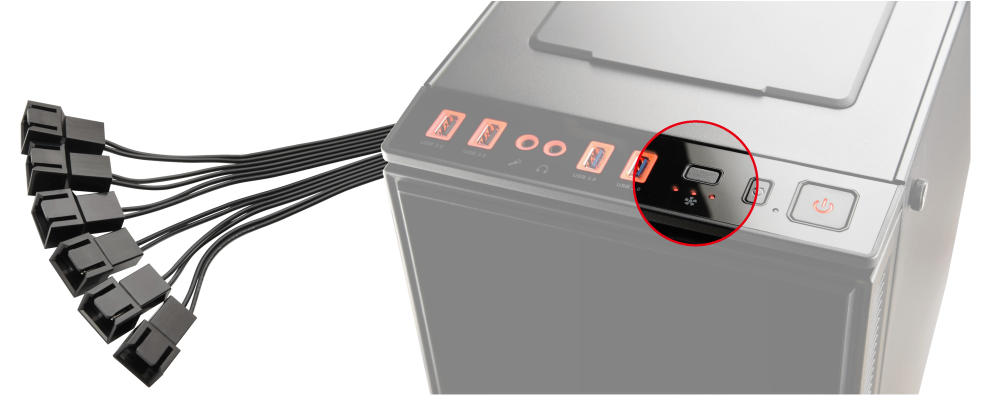

Integrated 3-speed fan controller

Integrated 3-speed fan controller connecting up to 6 fans allows the user to reach the preferred balance between silence and cooling performance.

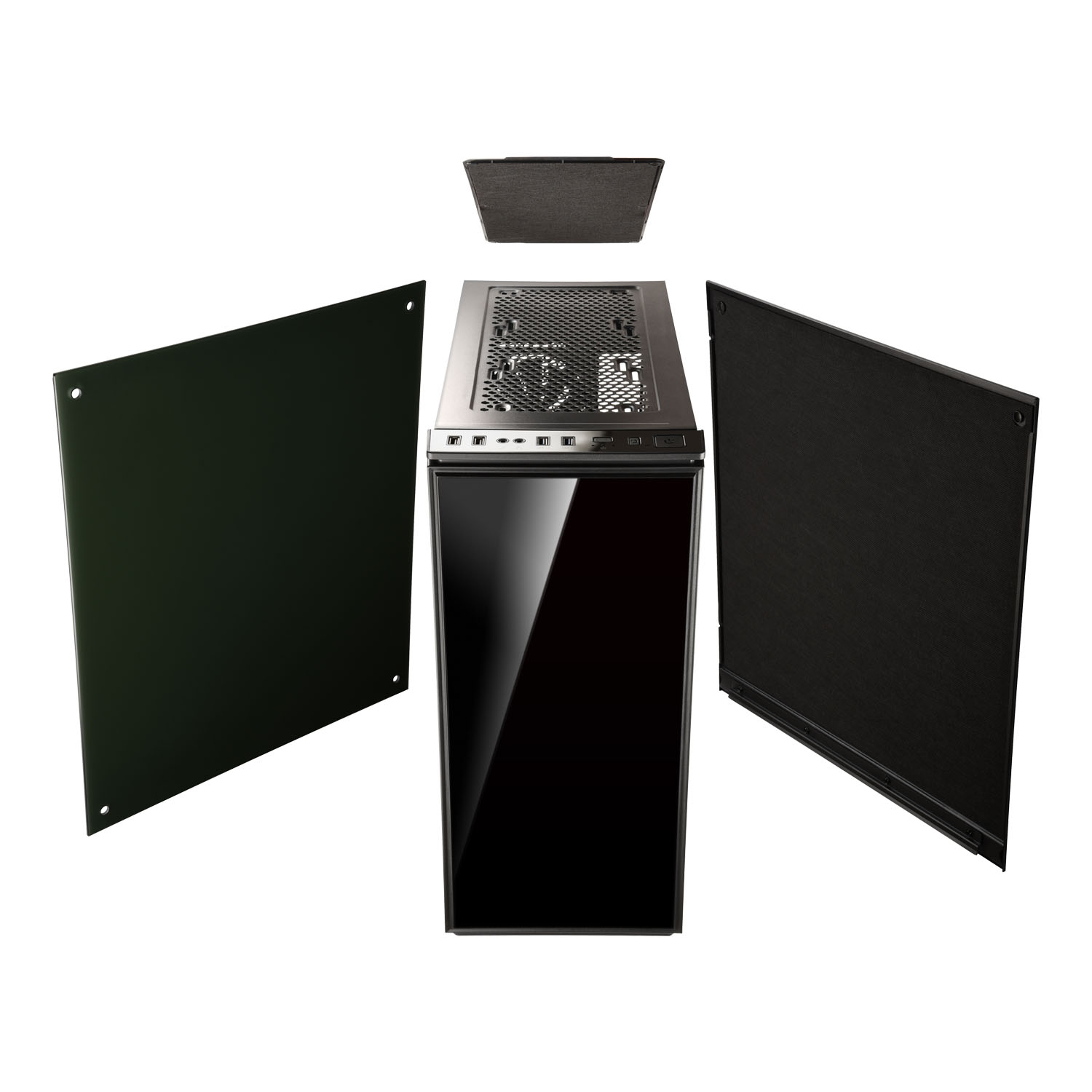

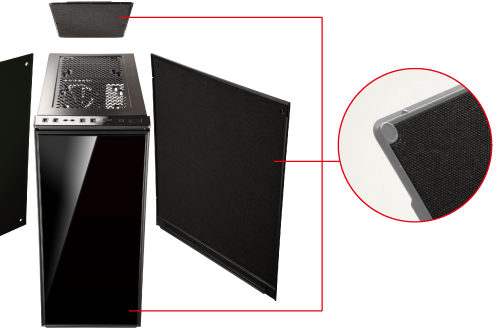

High density sound insulation foam

Premium foam is used on the front, top, and right sides of the case for ultimate silence, together with removable top cover which also provides an option for extra cooling.

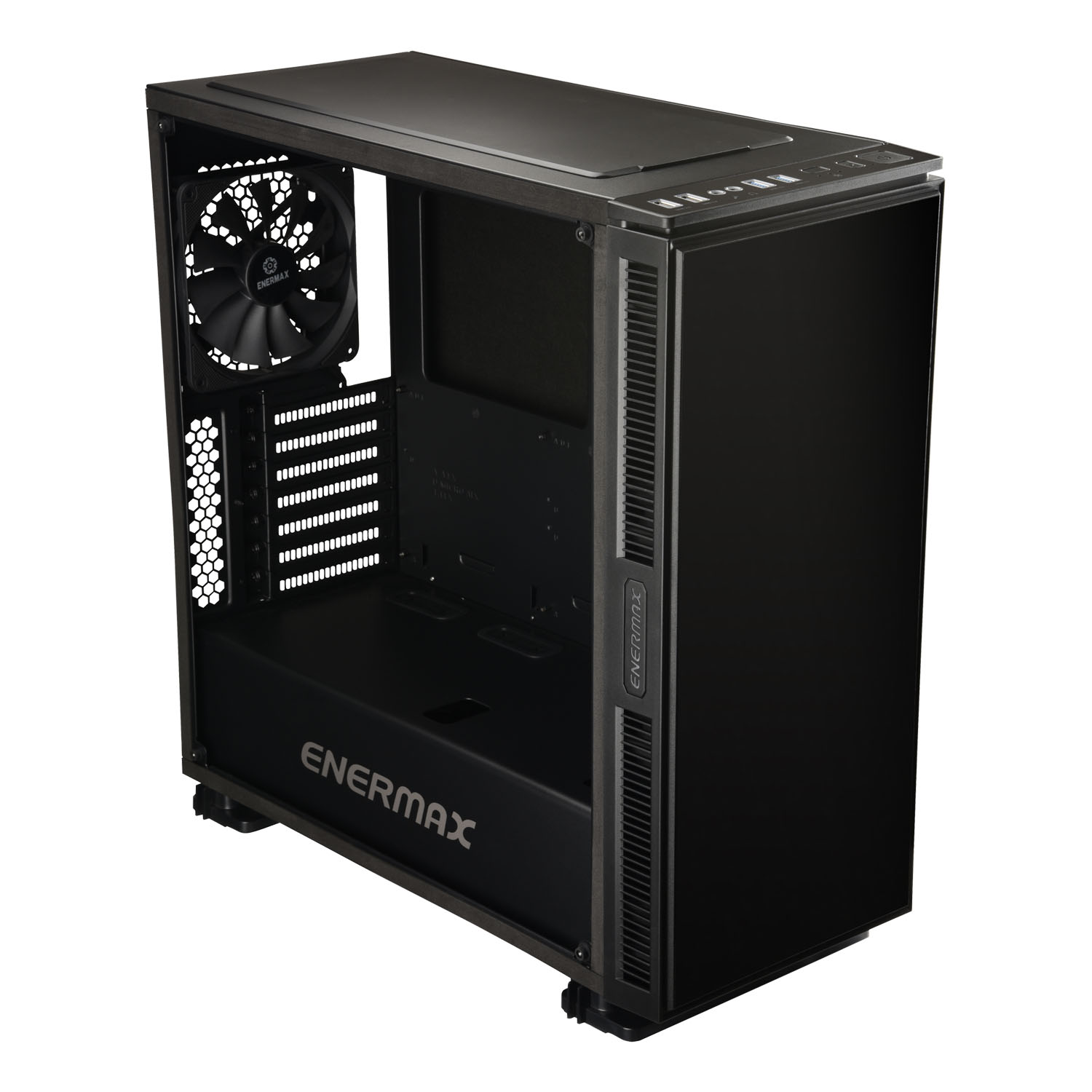

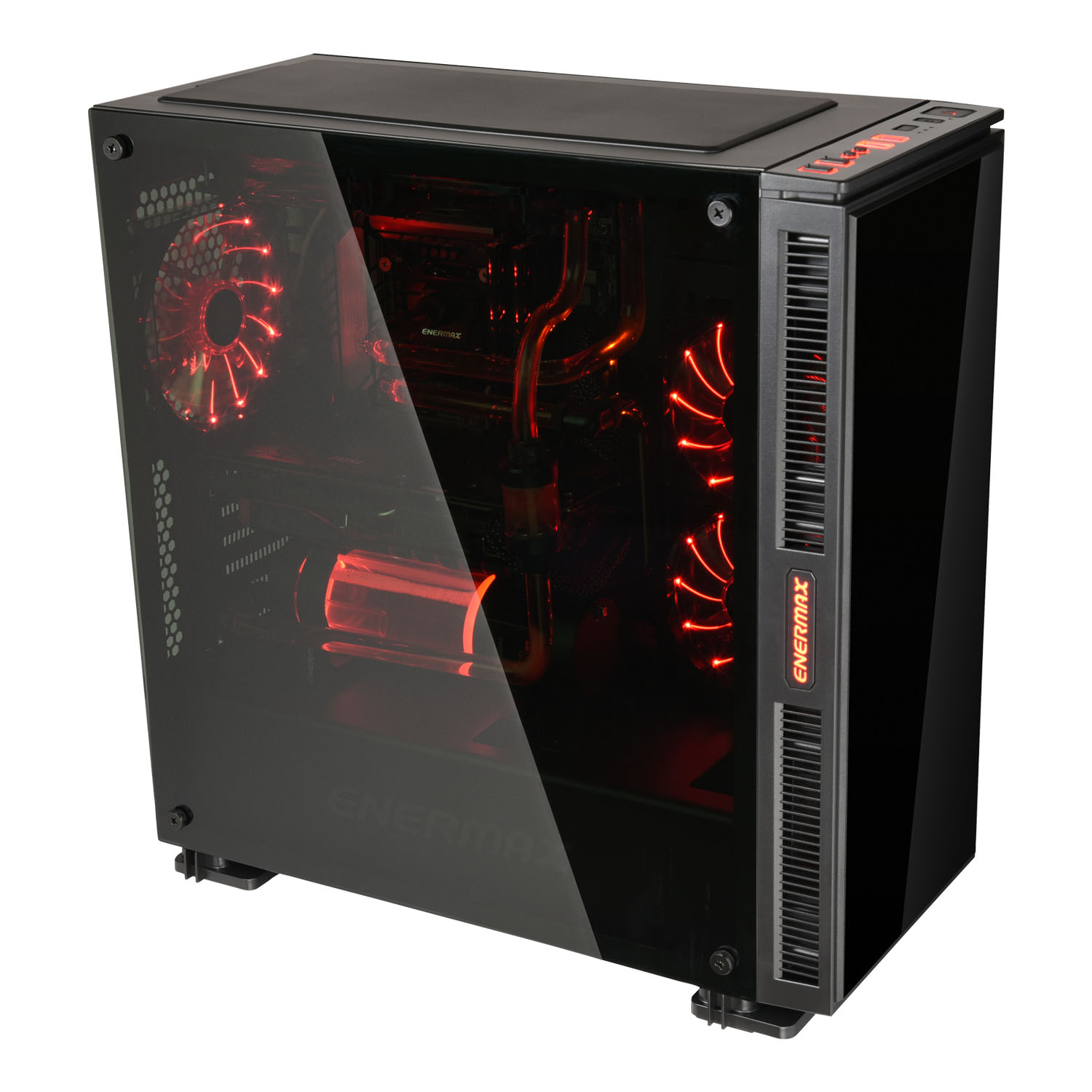

4mm panoramic glass window with sound-dampening cushion

The 4mm tinted tempered glass side panel with sound-dampening cushion not only allows you to show off your rig, but also provides silent performance.

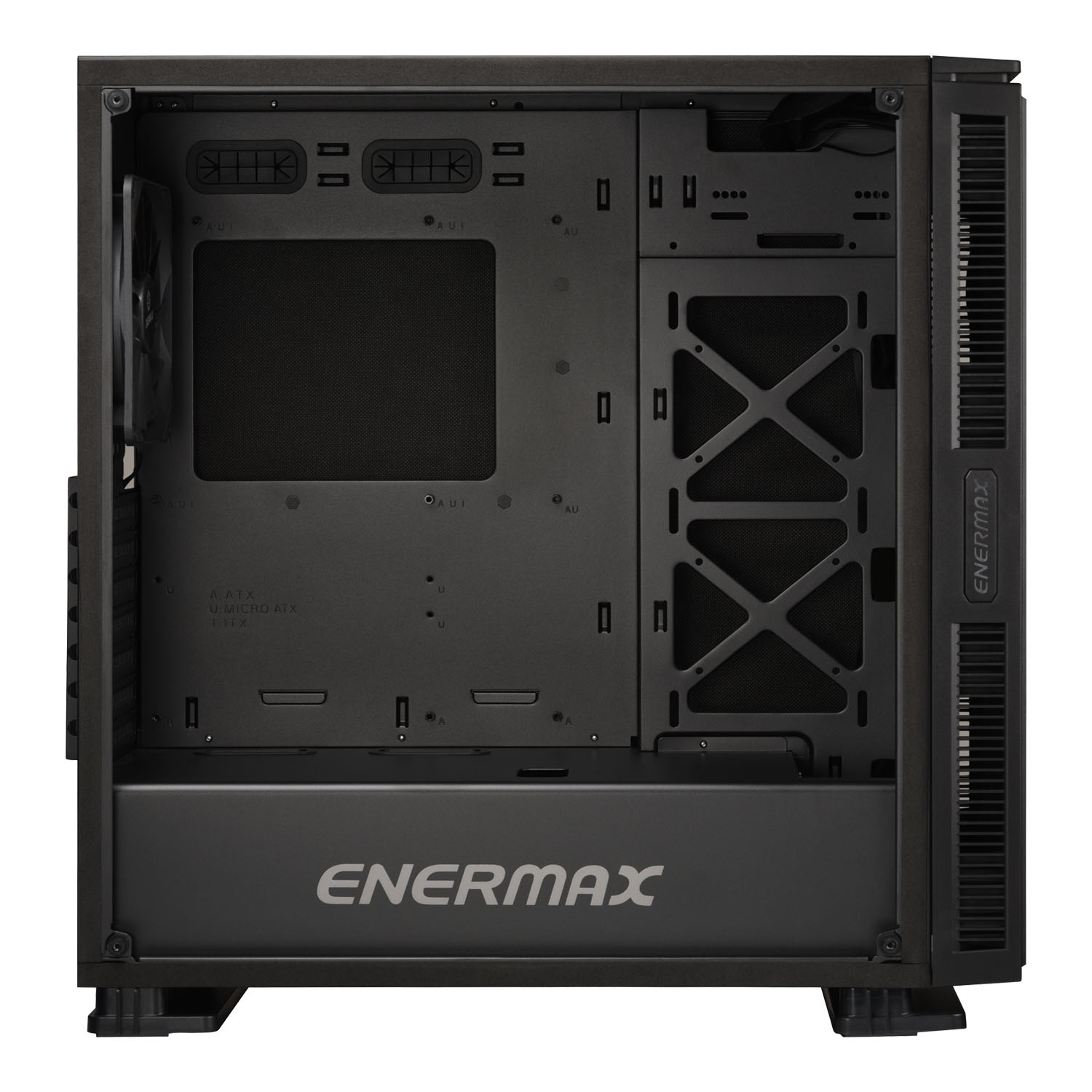

Solid structure with ample space

Constructed of 0.8 mm sturdy steel, EQUILENCE offers spacious interior design for large, high-end components.

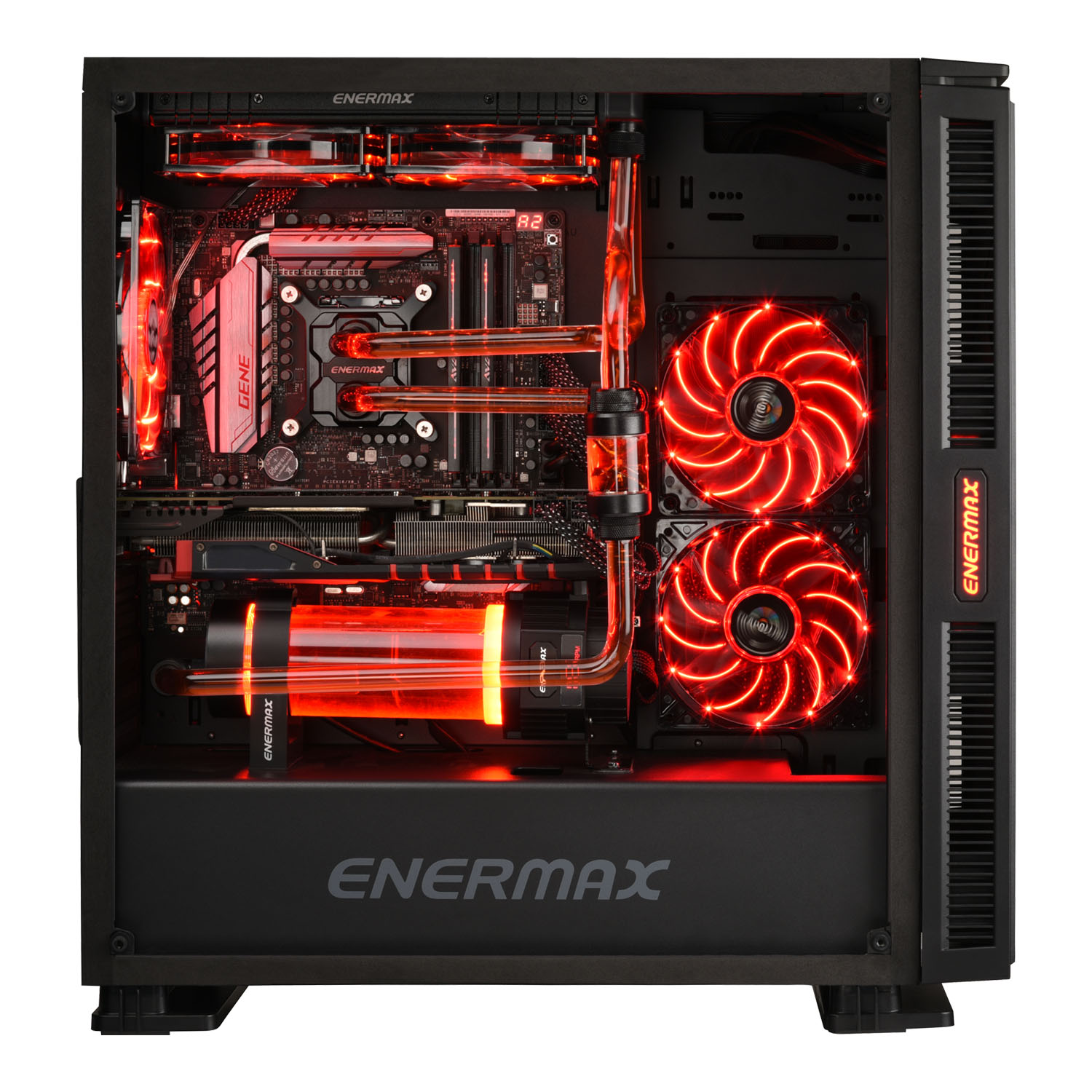

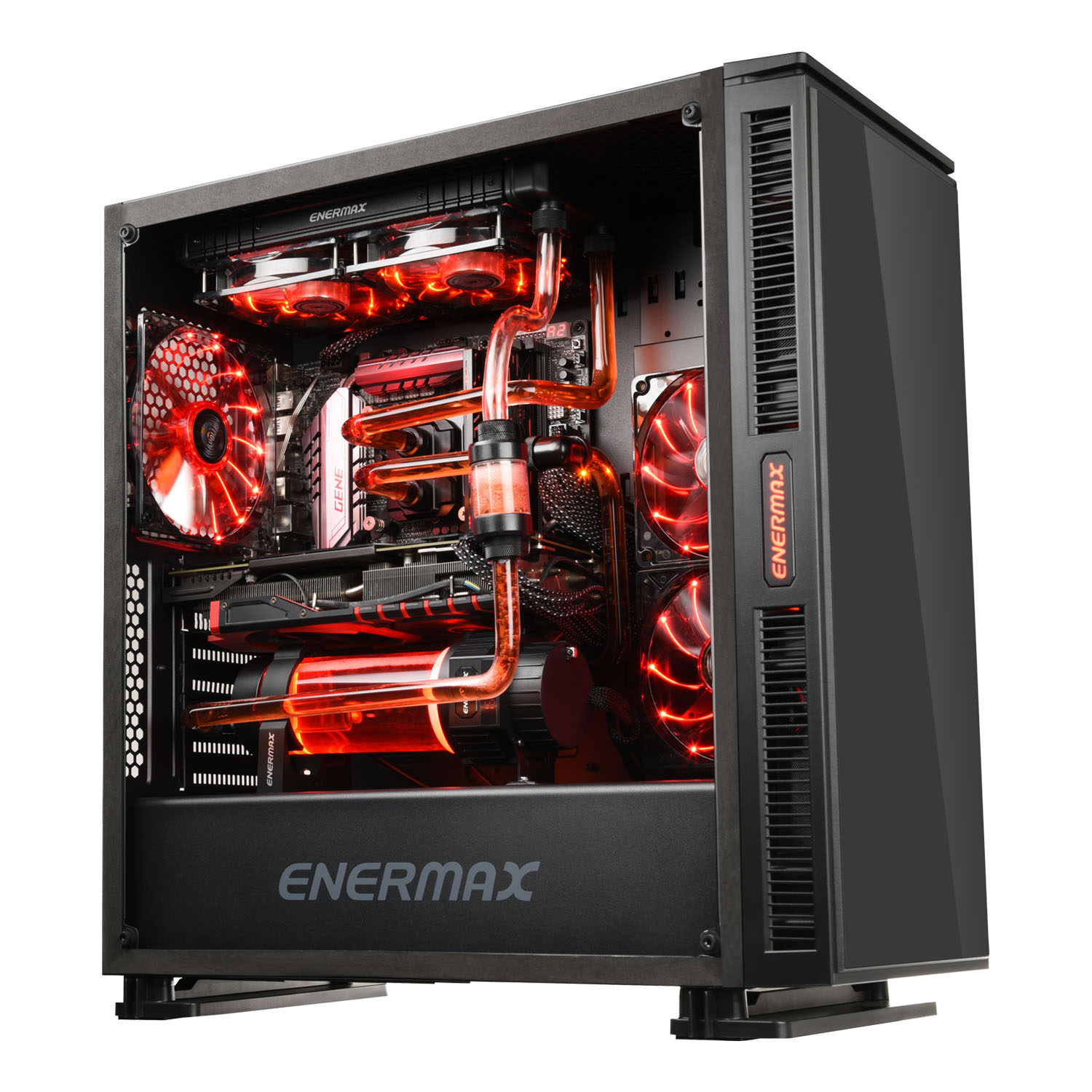

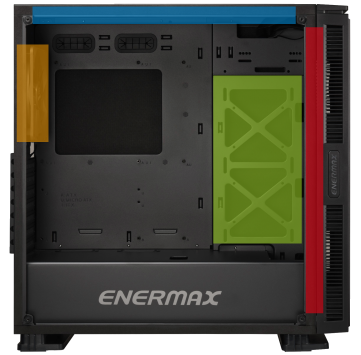

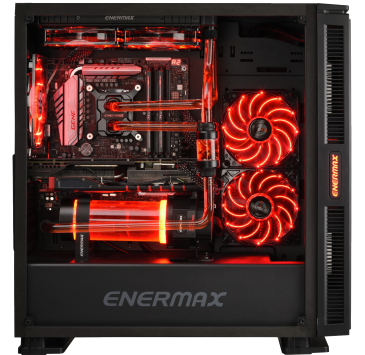

Extensive liquid cooling potential

Flexible cooling system configuration supports 4 designated locations for liquid cooler installation.

Liquid Cooler Compatibility Chart
Radiator size (mm) 360 280 240 140 120
Front
Top
Rear
Side

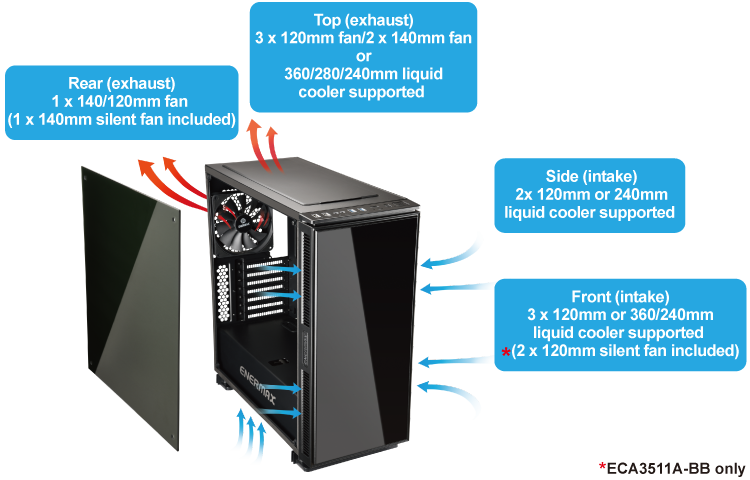

Advanced ventilation system with support of up to 9 fans




Flexible system configuration

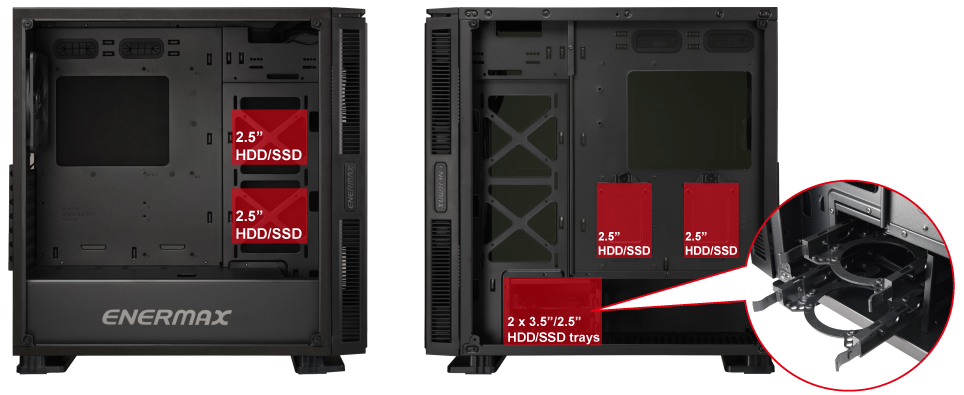

Supports up to 2 x 3.5” HDD, and 6 x 2.5 SSD/HDD (2 x Converted from 3.5” tray) to satisfy your storage needs.

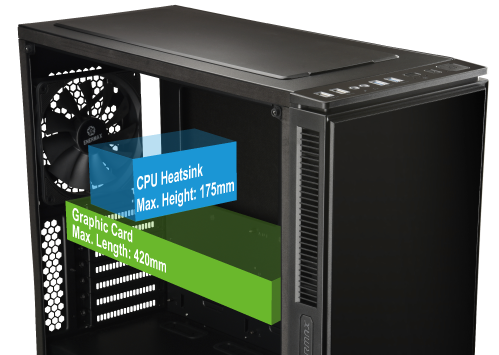

Support the latest long VGA card and tall CPU cooler

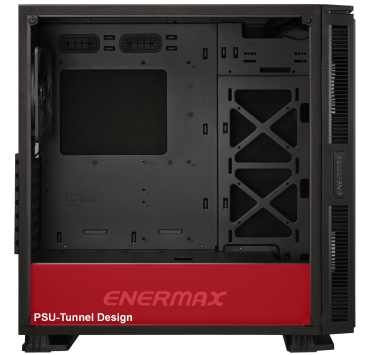

PSU-Tunnel design (aka PSU shroud)

The design minimizes the cable clutter to make the system clean and neat, which helps improve the air circulation.




Product Introduction

Model Name ECA3510A-BB/ ECA3511A-BB
Dimensions (D x W x H) 500 x 235 x 510 mm
Material 0.8mm SPCC
M/B Type ATX, Micro ATX, Mini ITX
I/O USB3.0 x 2, USB2.0 x 2, HD Audio, Fan controller
3.5'' Drive Bays 2
2.5'' Drive Bays 6 (2 x Converted from 3.5" trays)
Expansion Slots 7
Fan Slots - Front 3 x 120mm/ 3 x 120mm (2 x 120mm fan pre-installed)
Fan Slots - Top 2 x 140 or 3 x 120mm
Fan Slots - Rear 1 x 140 / 120mm (1 x 140mm fan pre-installed)
Fan Slots - Side 2 x 120mm
Radiator Support - Front 360 / 240mm
Radiator Support - Top 360 / 280 / 240mm
Radiator Support - Rear 140 / 120mm
Radiator Support - Side 240mm
PSU Support Standard ATX Type
Clearance - VGA card 420mm (280mm with side radiator)
Clearance - CPU Cooler 175mm
EAN code 4713157723314 / 4713157723406
UPC code 819315023310 / 819315023402
Carton dimensions (D x W x H), (mm) D579 x W320 x H598mm
Gross Weight (kg) 11.72 kgs / 11.92 kgs
Net Weight (kg) 9.78 kgs / 9.98 kgs
