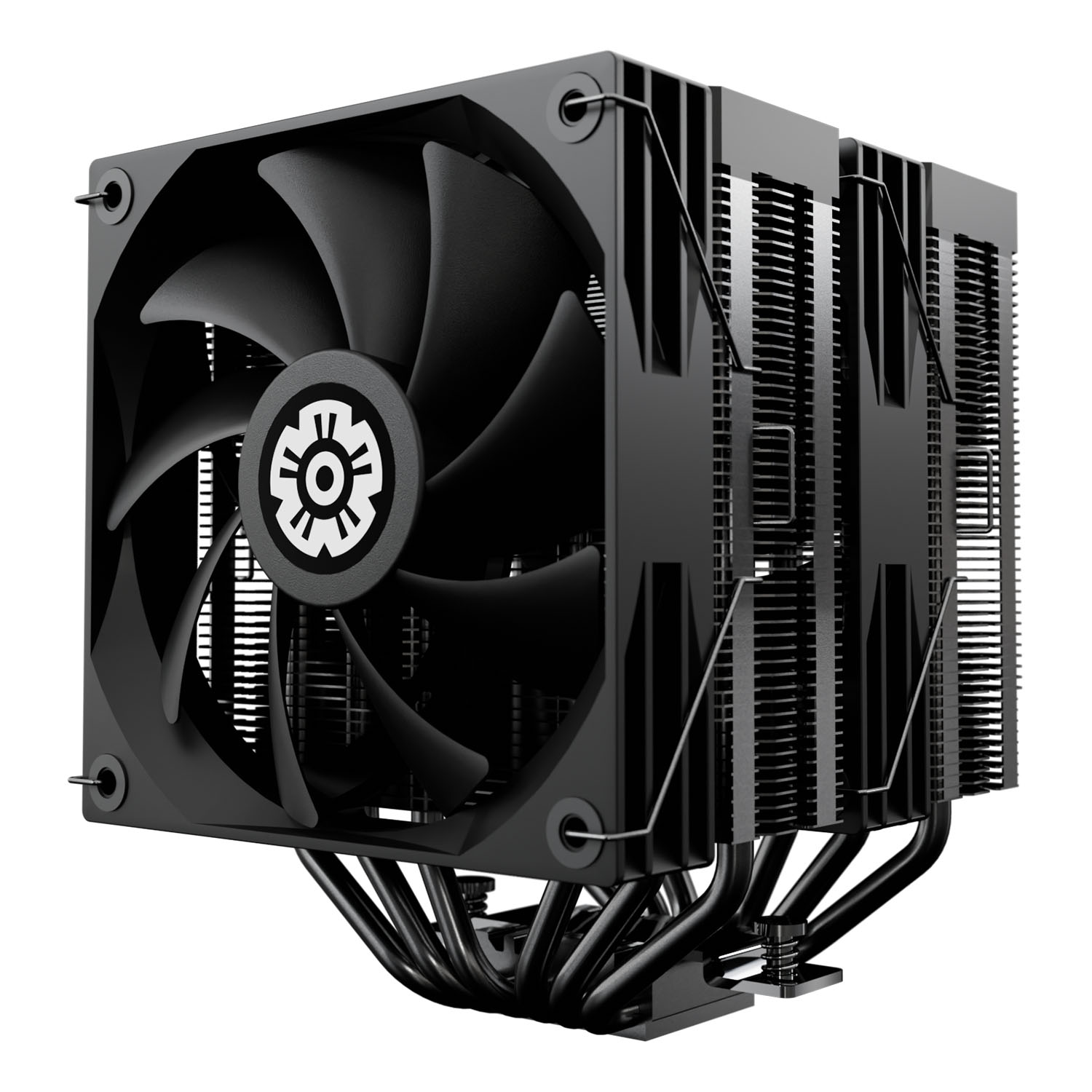

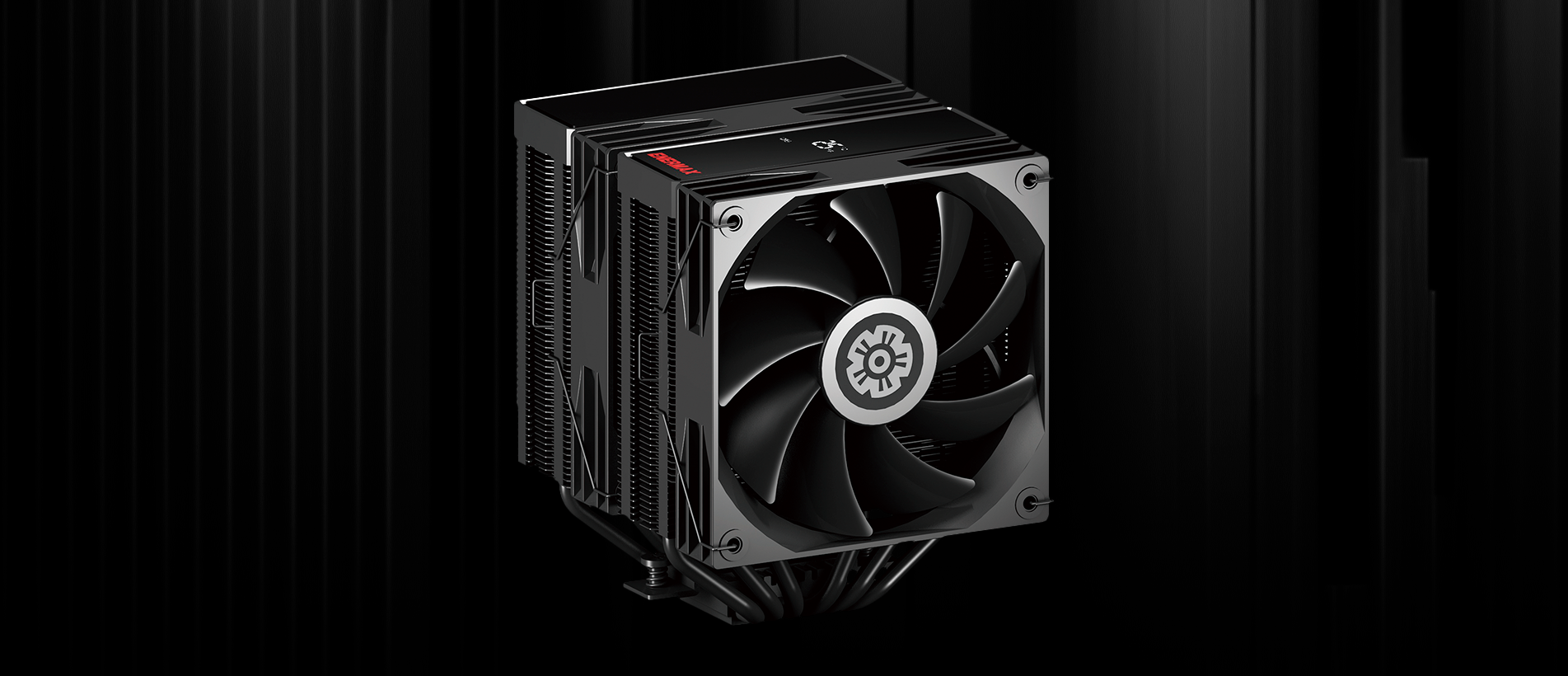

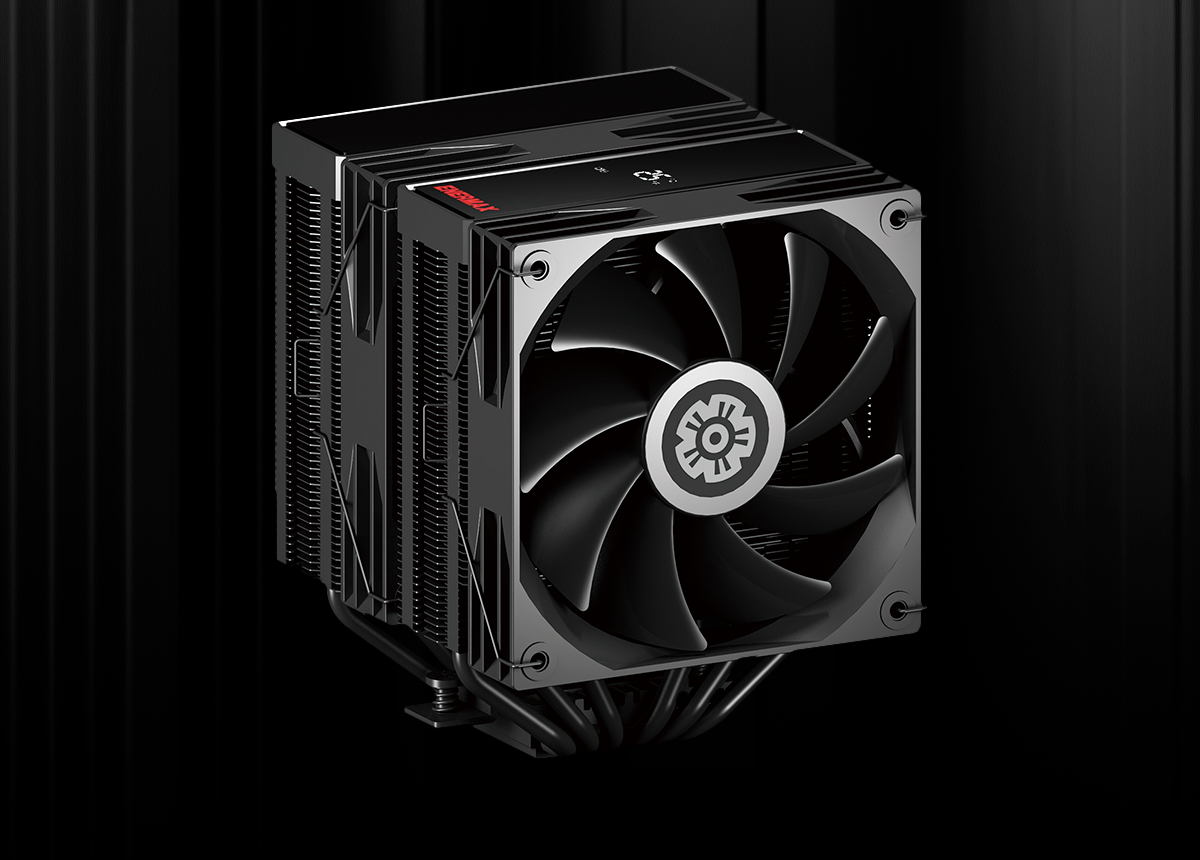

ETS-TD60 Digital CPU Air Cooler

▪ Superior Cooling Capacity (280W TDP)
▪ Dual-Tower Heatsink Design
▪ 2 x 120mm FDB Fans Included
▪ PWM Controlled Fan for Optimizes Airflow and Silent Operation
▪ Sleek Low-Profile Status Display

ETS-TD60D CPU AIR COOLER
ETS-TD60D CPU AIR COOLER
ETS-TD60D logo
Cooling Capacity
280W TDP
Low-Profile
Status Display
Universal
CPU Support

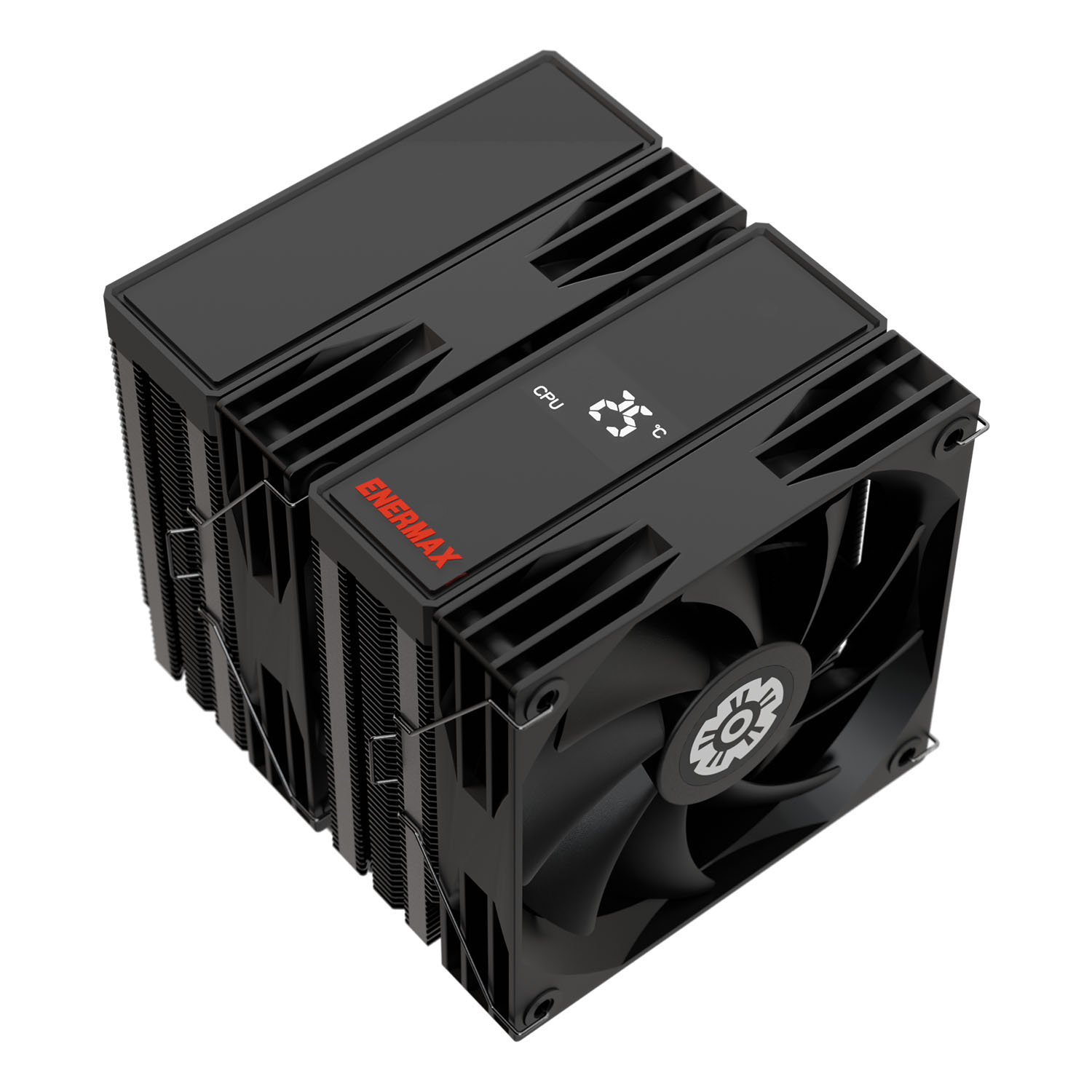

Dual-Tower
Heatsink Design

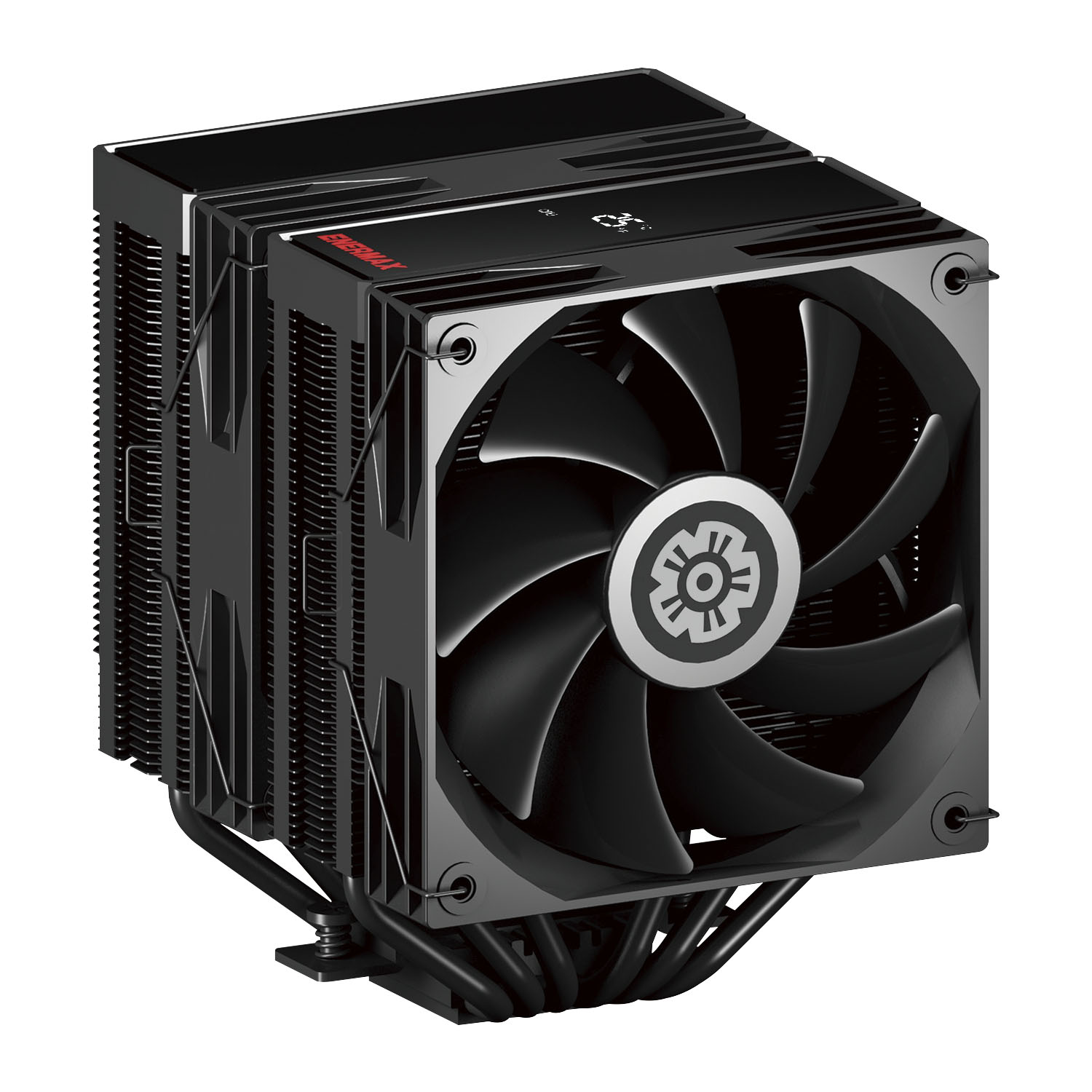

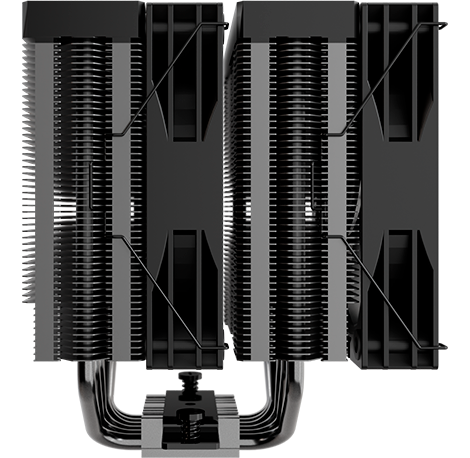

ETS-TD60D SUPERIOR COOLING CAPACITY, 280W TDP

SUPERIOR COOLING CAPACITY, 280W TDP

ETS-TD60 Digital CPU air cooler is characterized by the dual-tower, dual-fan design with 6 x Ø6 mm heat pipes; it allows the two 120mm fans to push air cooling performance even.

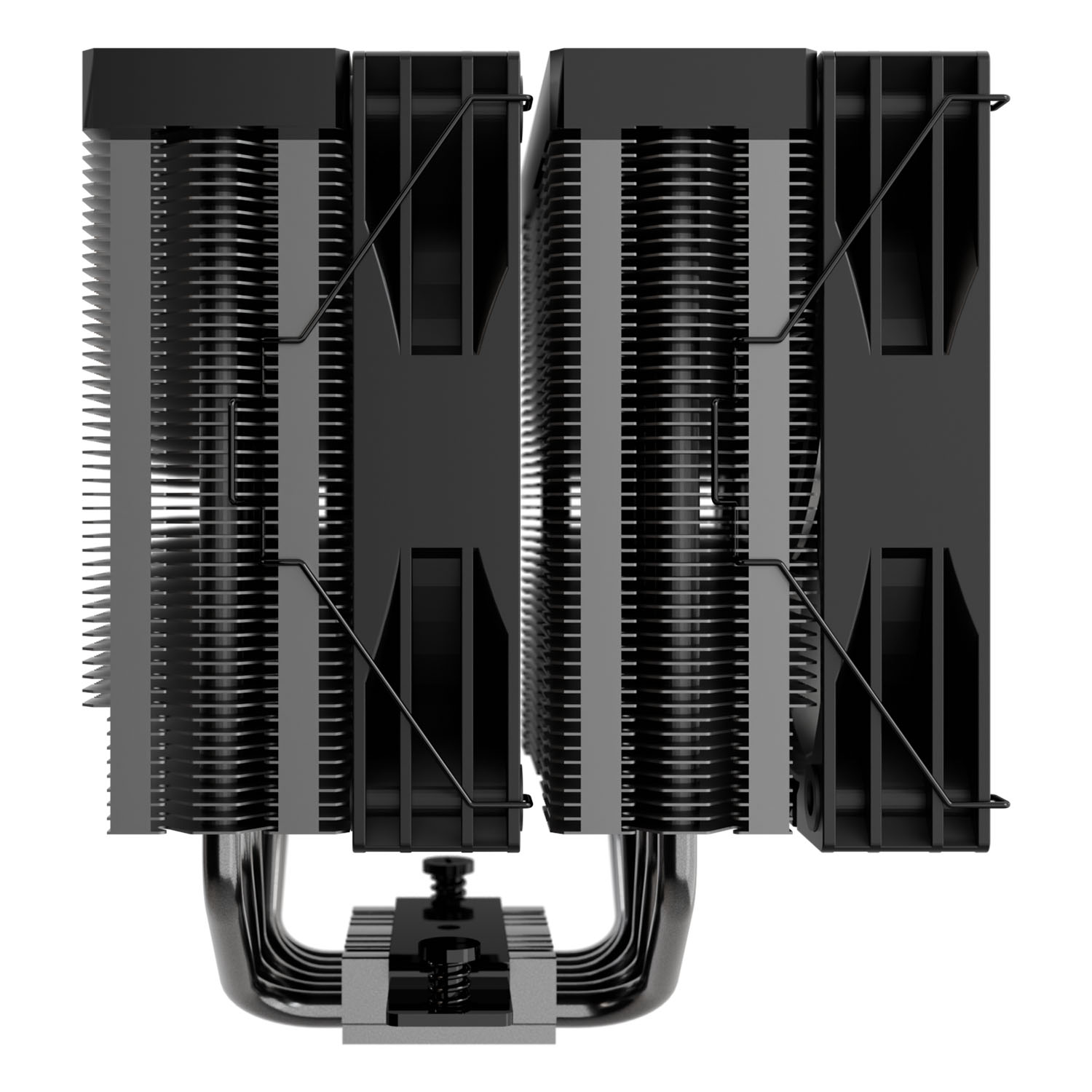

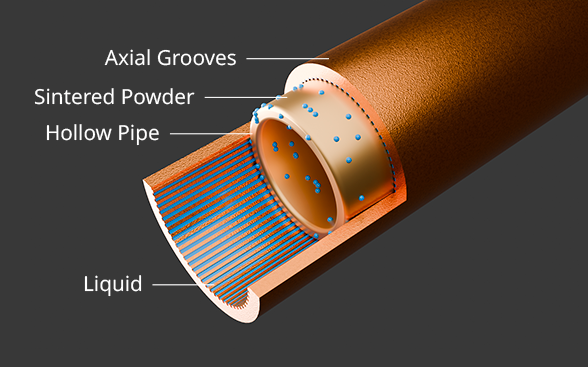

COMPOSITE HEAT-PIPES DESIGN

ETS-TD60 Digital CPU air cooler can efficiently manage the heat transfer and lower the CPU's temperature by 1°C compared to the same wattage consumption.

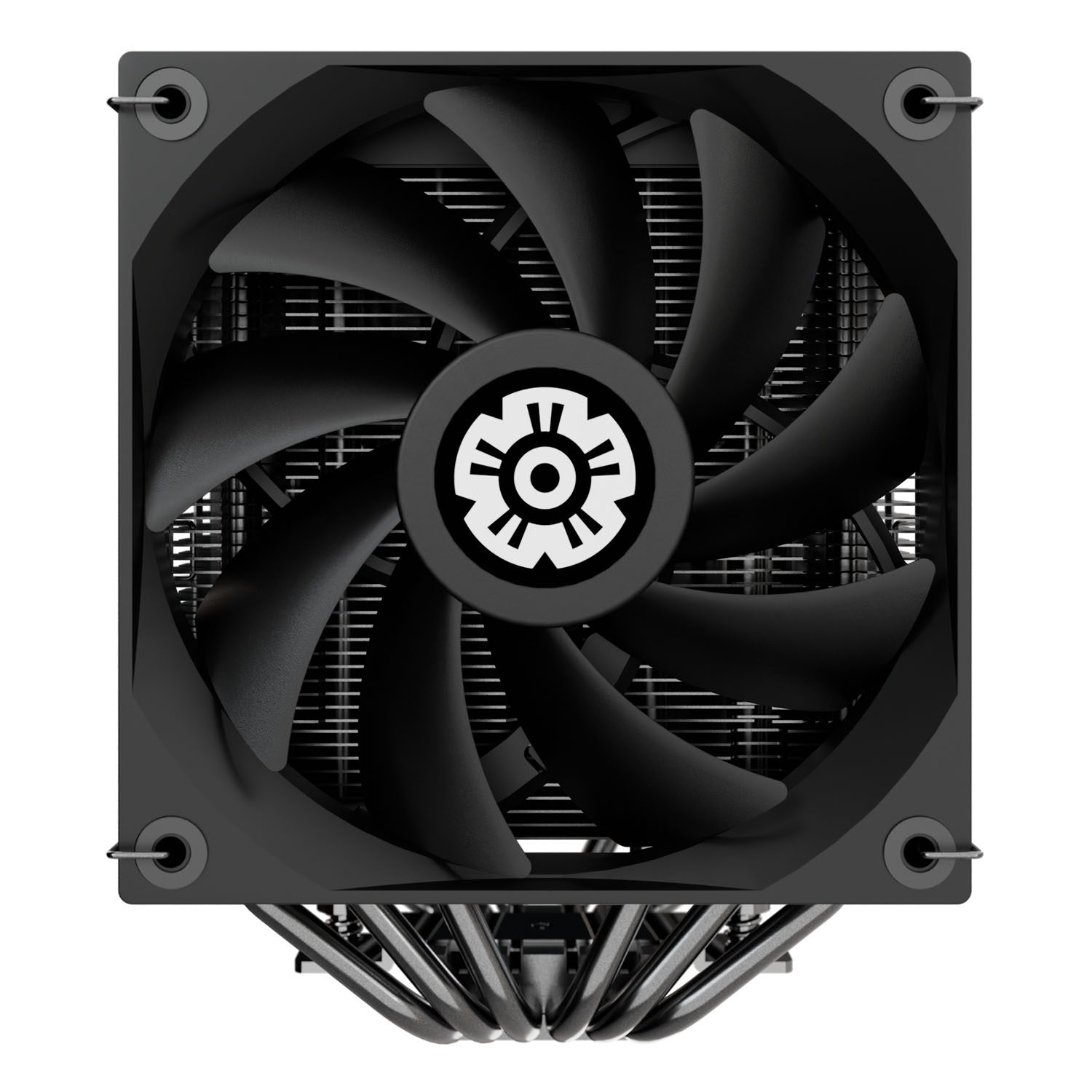

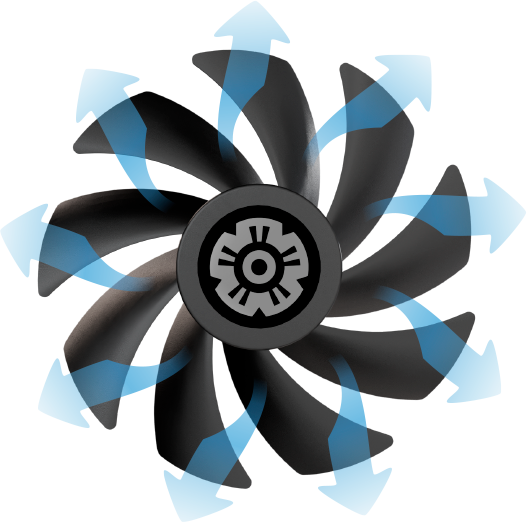

ETS-TD60D PWM CONTROLLED FAN WITH 9 FAN BLADE DESIGN
80-PLUS BRONZE

PWM CONTROLLED FDB FAN

The 120mm F.D.B. (Fluid Dynamic Bearing) fan delivers a quiet operation while maintaining the cooling performance.

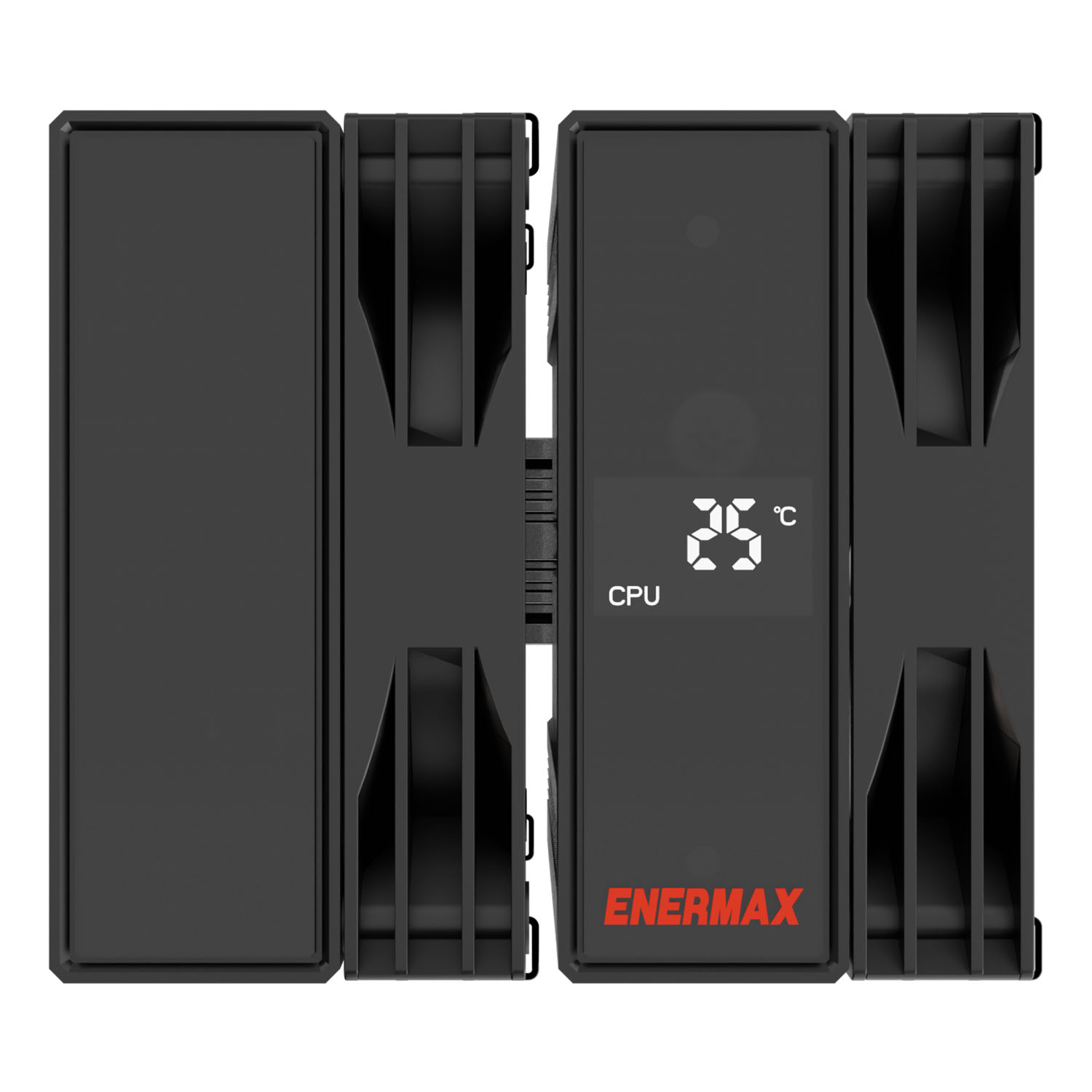

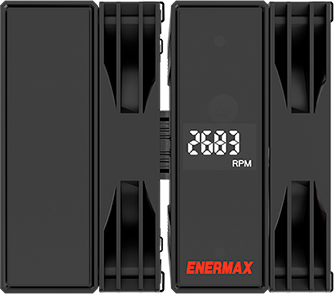

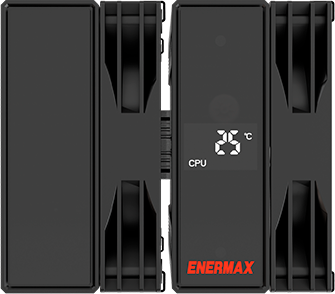

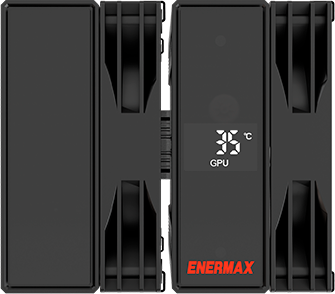

SYSTEM DATA MONITORING

Effortlessly monitor the temperatures of CPU, GPU and fan speed with the digital display.

Enermax Tuner Software ETS-TD60D SYSTEM DATA MONITORING ETS-TD60D SYSTEM DATA MONITORING ETS-TD60D SYSTEM DATA MONITORING Enermax Tuner Software icon

ENERMAX Tuner Software
(Download)

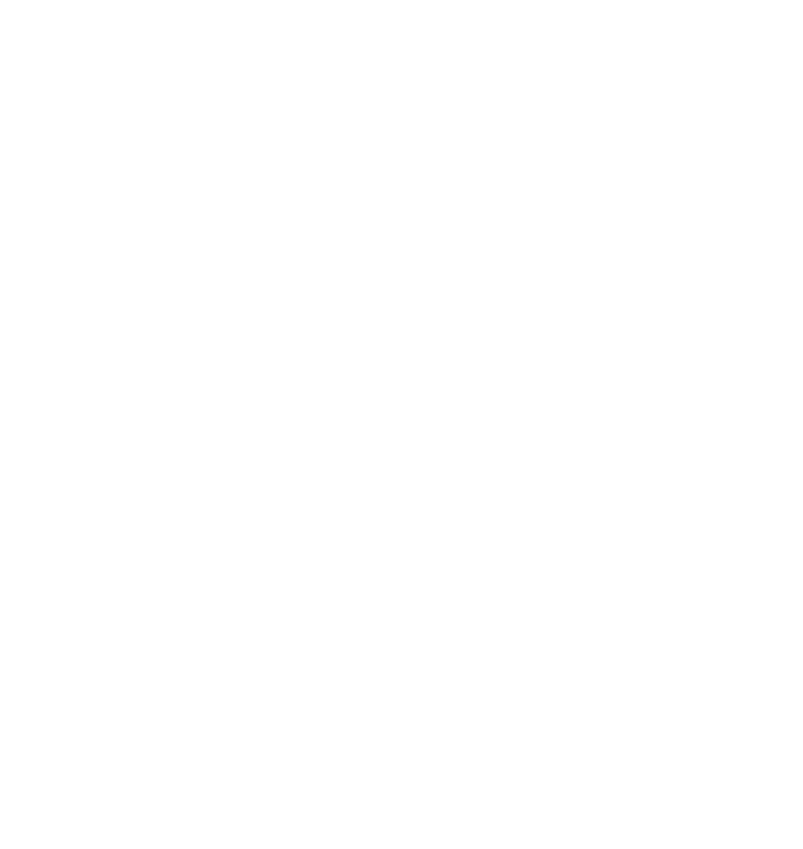

DIMENSIONS

Unit: mm

ETS-TD60D dimension
Model ETS-TD60D
CPU Socket Intel® LGA1851/1700/115x/1200
AMD® AM5/AM4
Overall Dimension 120 X 134 x 159 mm
Weight 1015g (W/ fan)
TDP (W) 280W
Heat Pipe 6 x Ø6 mm
Material Copper Cold Plate / Aluminum Fins
Thermal Grease Dow Corning® TC-5888
Fan Dimension 120 x 120 x 25 mm
Fan Speed 600~1600 RPM ±10%
Fan Air Flow (CFM) 29.46~69.63 CFM
Air Flow (m3/h) 50.05~118.30 m³/h
Fan Static Pressure (mm-H2O) 0.36~1.39 mmH2O
Fan Noise (dBA) 25 dBA (Max)
Fan Rated Voltage (V) 12V
Fan Rated Current (A) 0.19A
MTTF (FAN) ≧ 80,000 hrs
Connector 4 Pin PWM
EAN 4713157729361
UPC 819315029367
Box Dimension 170 x 156 x 213 mm
Gross Weight / unit 1.37 kg
Carton Dimension 487 x 352 x 467 mm
Q'ty / carton 12 pcs
Gross Weight / Carton 17 kg
