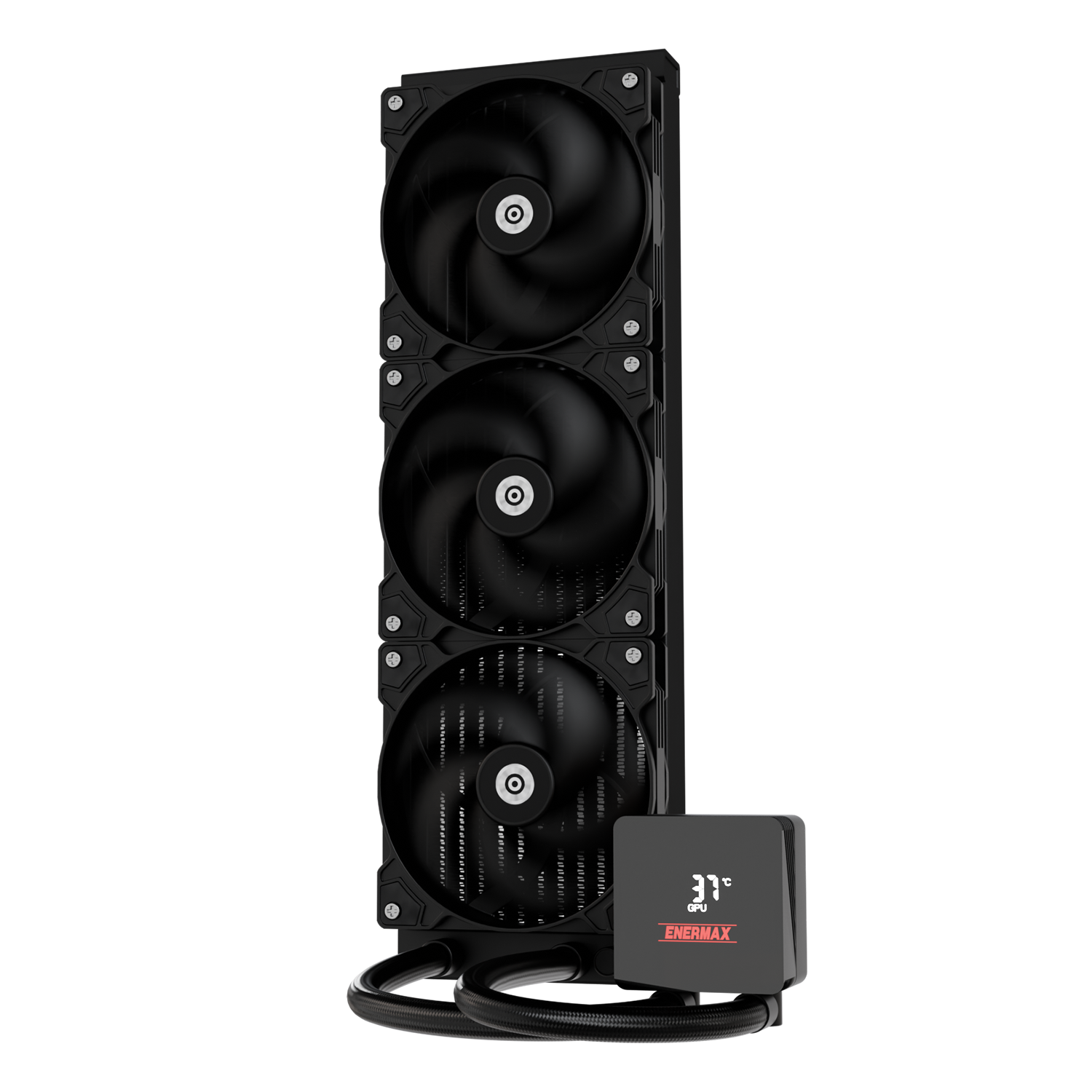

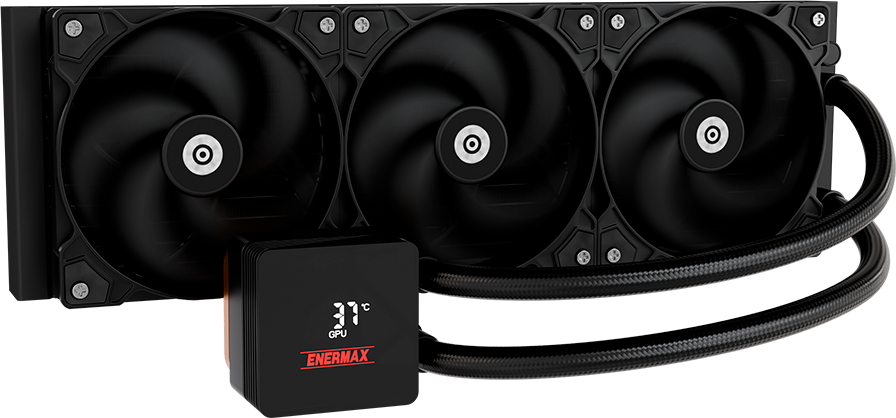

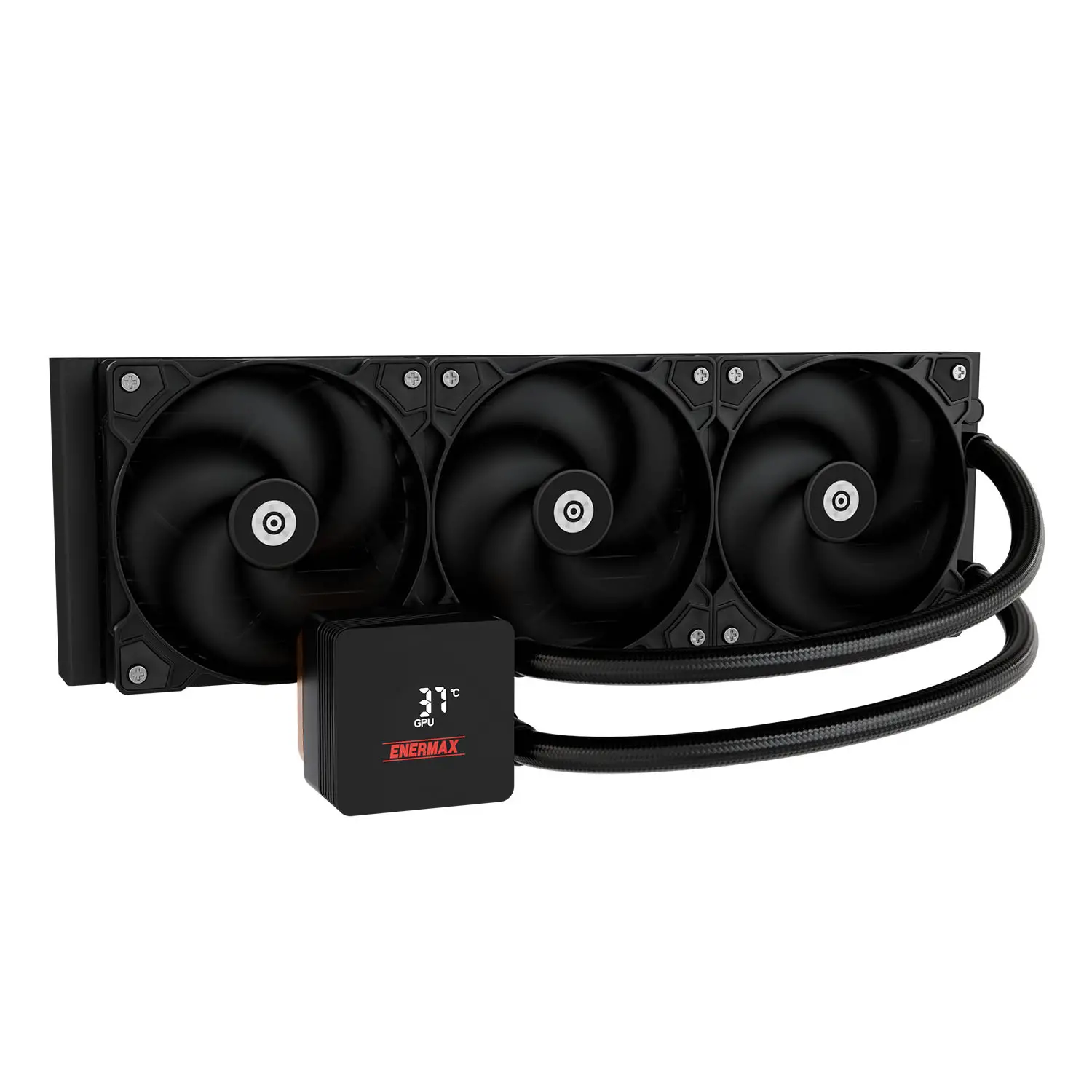

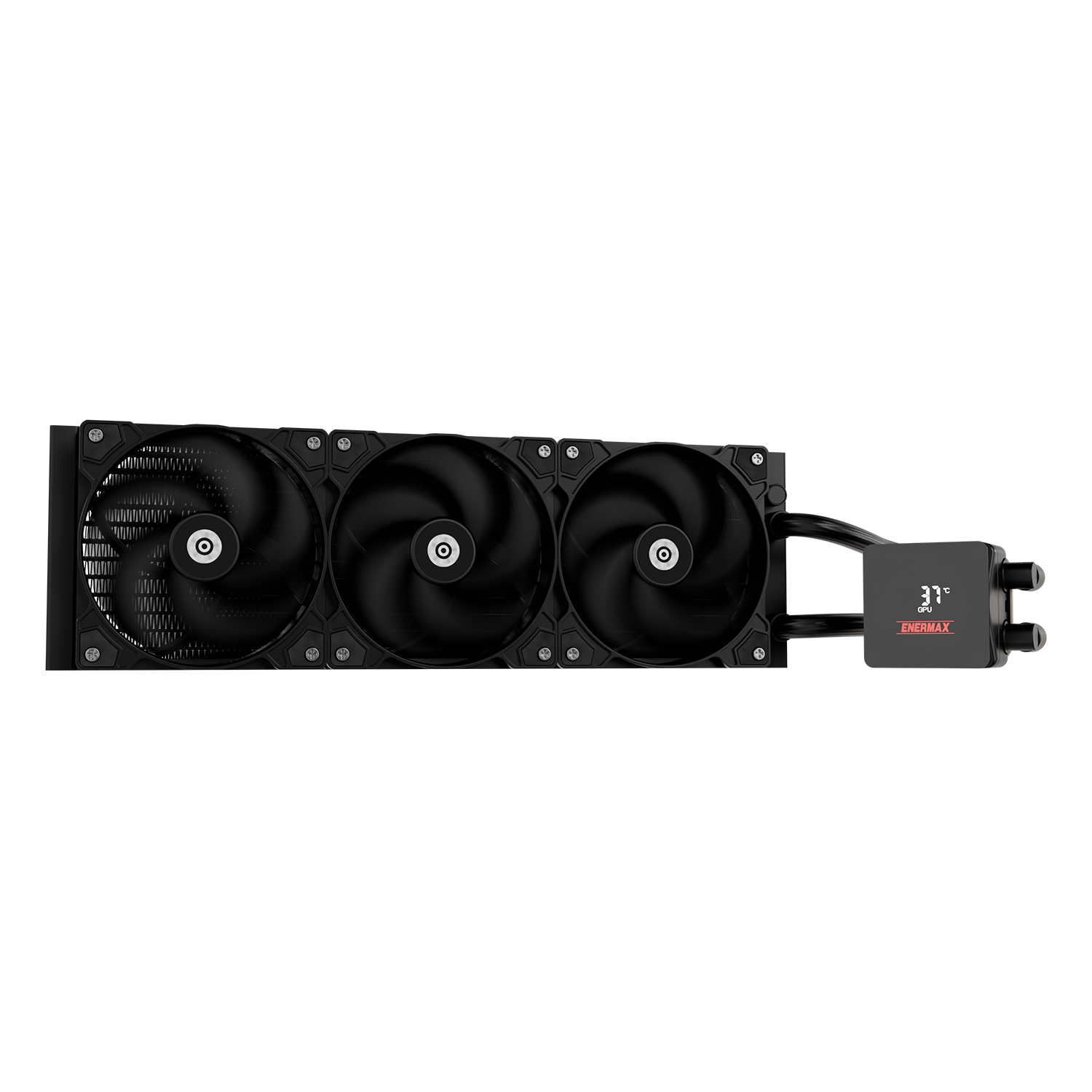

LIQMAX IV Series 360mm Liquid CPU Cooler

AM5 Compatibility for CPU Cooler






Patented Dual-Chamber Design water block

Patented Dual-Chamber Design isolates the pump from the heat to prolong the cooler’s lifetime




Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)

Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer




The luminous addressable RGB fan and Aurabelt™ water block display gorgeous lighting effects with 16.8 million colors




2 ways to control RGB lighting effects

Through Motherboard Software

Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G)
Note: To use Razer Chroma to control lighting effects, your motherboard needs to be compatible with Razer Chroma

Through ENERMAX RGB Control Box

Users can use the included control box to adjust preferred lighting effects (10 pre-set effects), brightness and speed




Exclusive dual-convex blades

Exclusive dual-convex blade creates down force air pressure (max. 1.98mmH2O) and high-volume air flow (max. 72.1CFM)




Anti-vibration rubber pads minimize noise during operation




Premium 400mm weaved tubing is perfect for mainstream system builds




Universal Intel® and AMD® CPU cooler with quick-and-easy mounting system (Excluding TR4/ SP3 socket)




Dimension




Product Introduction




Installation Guide



Model ELC-LMIV360-SF
CPU Socket Intel® LGA 1851/1700/1200/115x/2066/2011/2011-3/1366
AMD® AM5/AM4/AM3+/FM2+/FM1
TDP 360 W
Cold Plate Material Copper
Radiator Material Aluminum
Radiator Dimension 394 x 120 x 27 mm
Pump Bearing Ceramic Bearing
Pump MTBF 50,000 hrs
Pump Rated Voltage 12 V
Pump Rated Current 0.4 A
[ or 0.53 A if not connected to 3 pin ARGB connector (5V/D/G) ]
Pump Rated Current - RGB LED 0.18 A
Fan Dimension (Radiator) 120 x 120 x 25 mm
Fan MTTF ≧ 50,000 hrs
Fan Speed 500~1600 RPM ±10%
Fan Rated Voltage 12 V
Fan Rated Current 0.17 A
Fan Rated Current RGB LED 0.36 A
Fan Air Flow 22.5~72.1 CFM
Fan Static Pressure 0.2~1.98 mm-H2O
Fan Connector 4 Pin PWM + 3 Pin ARGB (5V/D/G)
Fan Maximum Noise 14~27 dBA
Thermal Grease Dow Corning® TC-5121C
Fan Screw 6#32
EAN 4713157724519
UPC 819315024515
Box Dimension 448 x 205 x 137 mm
Gross Weight / unit 2.192 kg
Carton Dimension 467x 292x 440 mm
Q'ty / carton 4 PCS
Gross Weight / Carton 9.788 kg
