MAKASHI II MKII

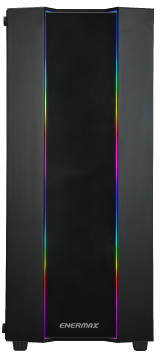

Elegant Exterior Design

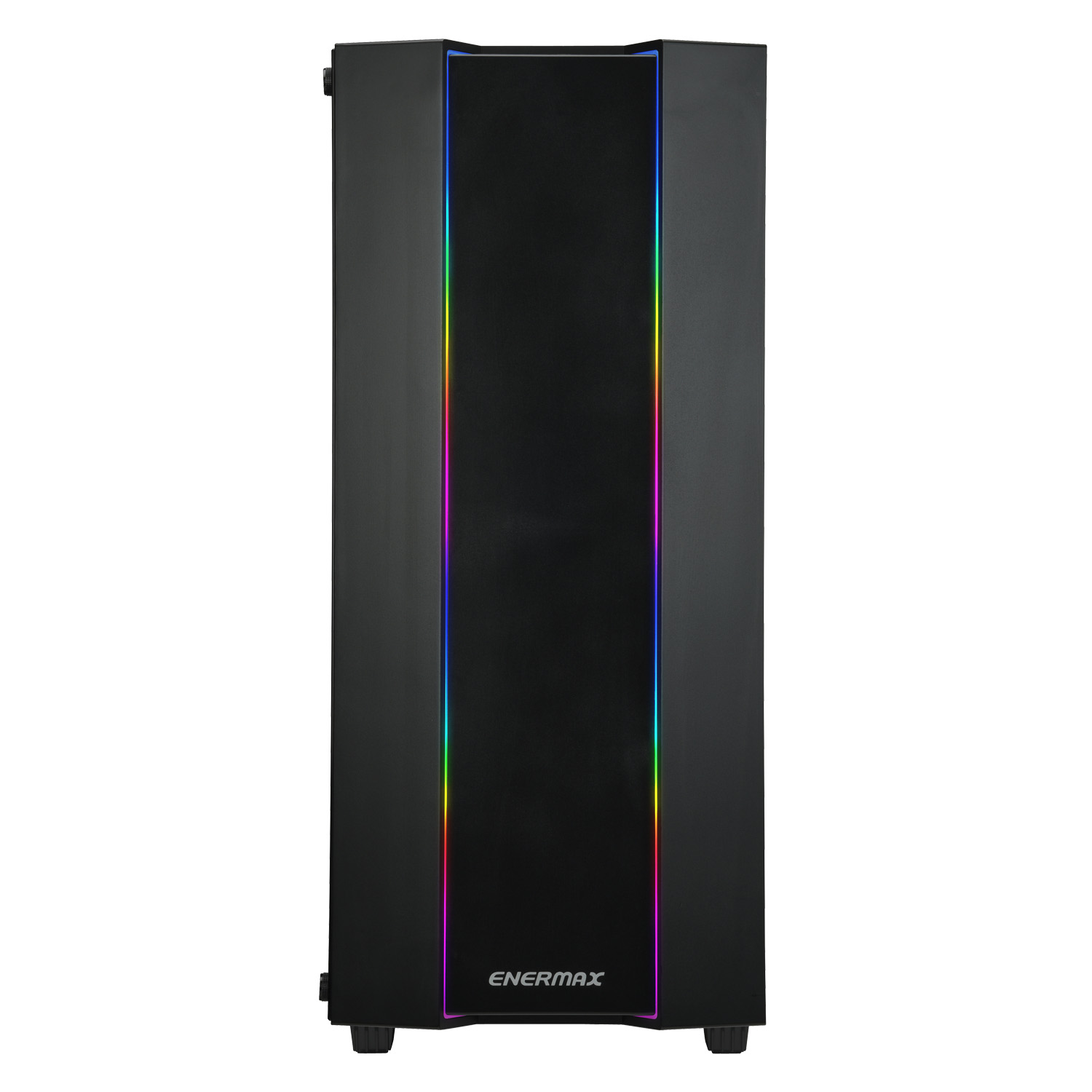

The 2 lighting strips in the front panel embellish the case and make it more appealing




Support Addressable RGB Lighting Synchronization

Support motherboards that have a 5V addressable RGB header and be able to control the lighting effects through the motherboard software, including ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome

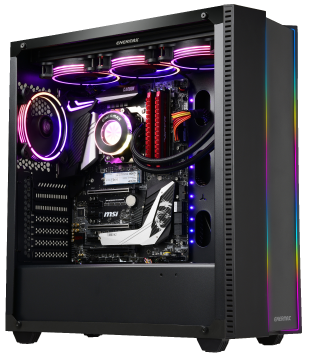

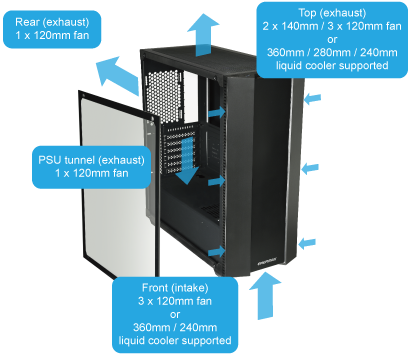

Strong Cooling Potential

MAKASHI II MKT50 can accommodate 360mm radiator in the front and on the top panel; it can also support 8x120mm cooling fan installation

Liquid Cooler Compatibility Chart
Radiator size (mm) 360 280 240 140 120
Front
Top
Rear



Pre-set 19 Lighting Effects

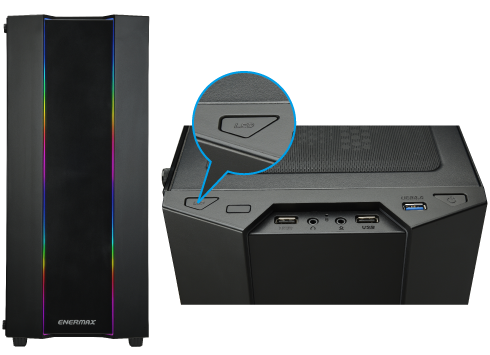

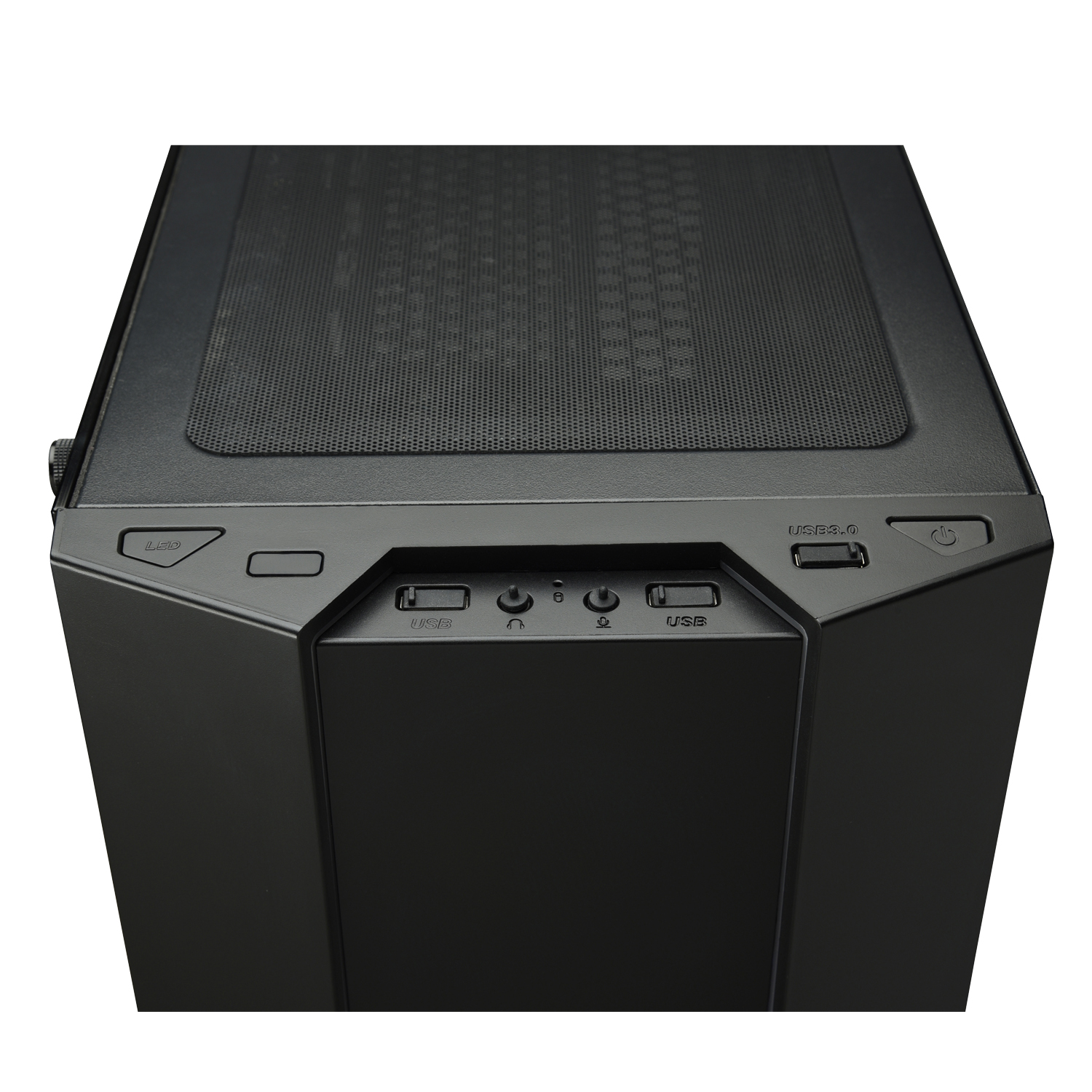

MAKASHI II offers 19 lighting effects, and you can select your preferred lighting style through the top I/O port

· Long press the lighting control button for 2~3 seconds to switch the RGB sync controlled by M/B or case

· The reset button is on the front I/O panel which is replaced by the lighting control button




Flexible System Configuration

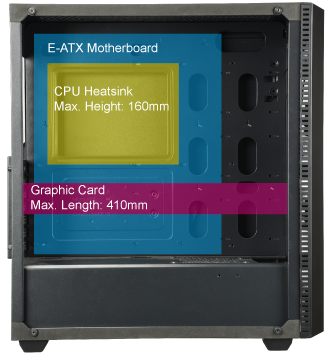

Support E-ATX/ ATX/ Micro-ATX/ Mini- ITX motherboards, graphic cards up to 410 mm in length, CPU cooler up to 160mm in height




Flexible Storage Option

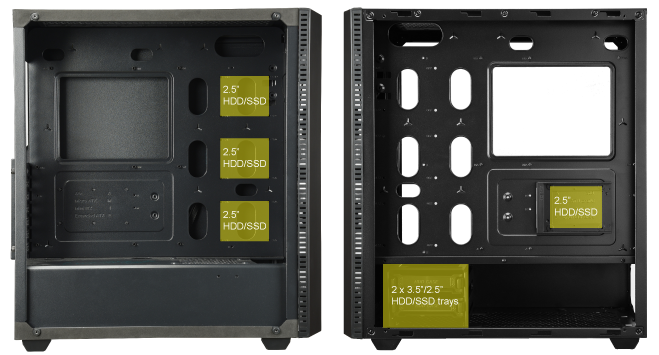

Support up to 6 x 2.5” SSD or 2 x 3.5” SSD drives which you can install behind motherboard or inside the case to provide more choice of storage options for your system

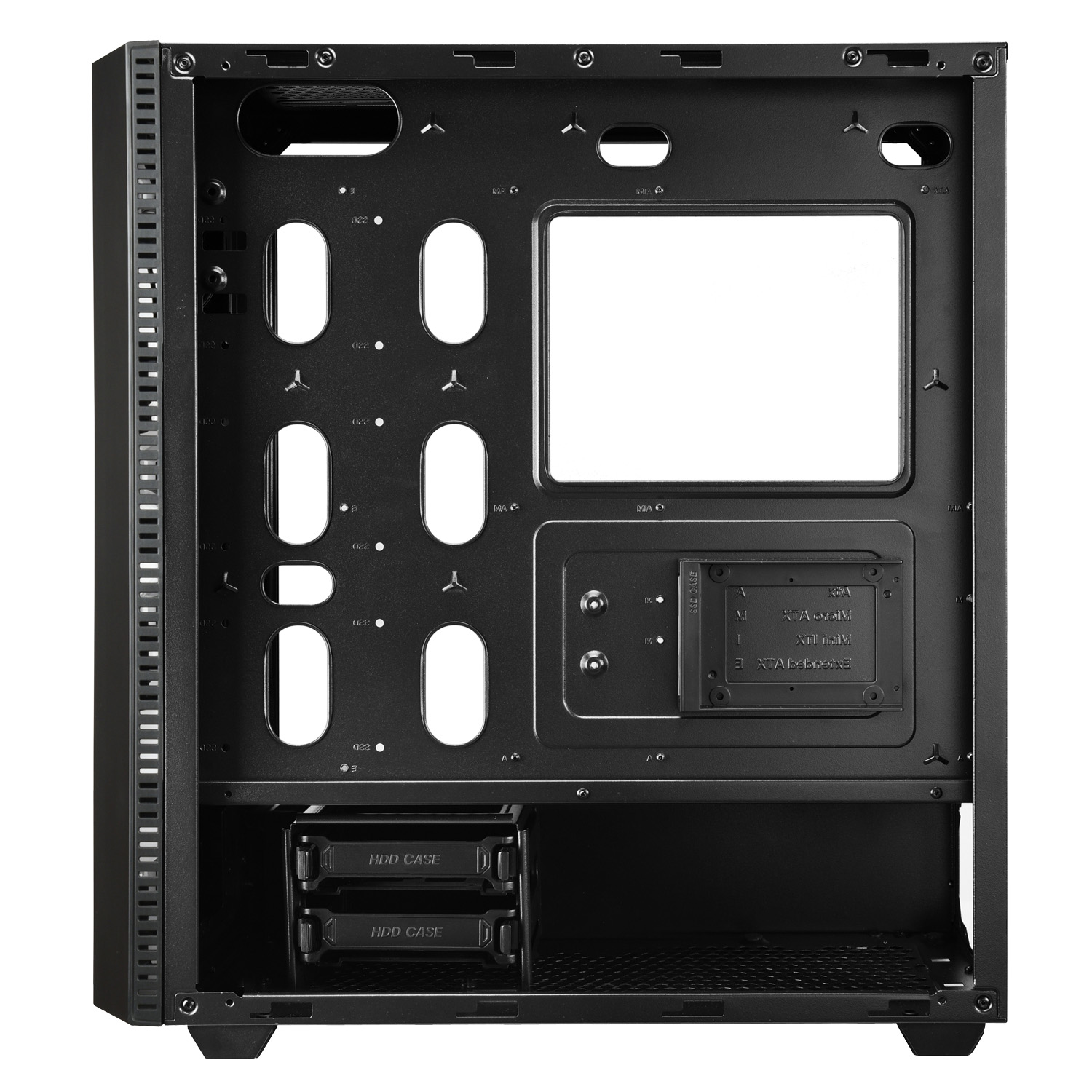

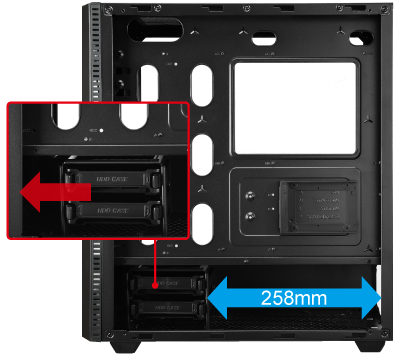

Better Cable Management

Movable HDD cage can create extra space for longer PSU (max. 20cm) installation

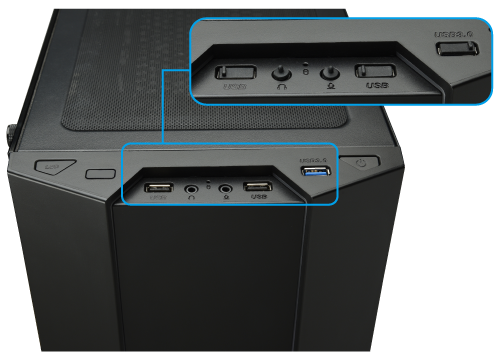

Clean and Safe

Anti-dust rubber plugs prevent USB port oxidation and rust

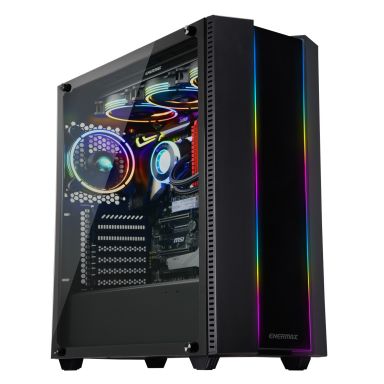

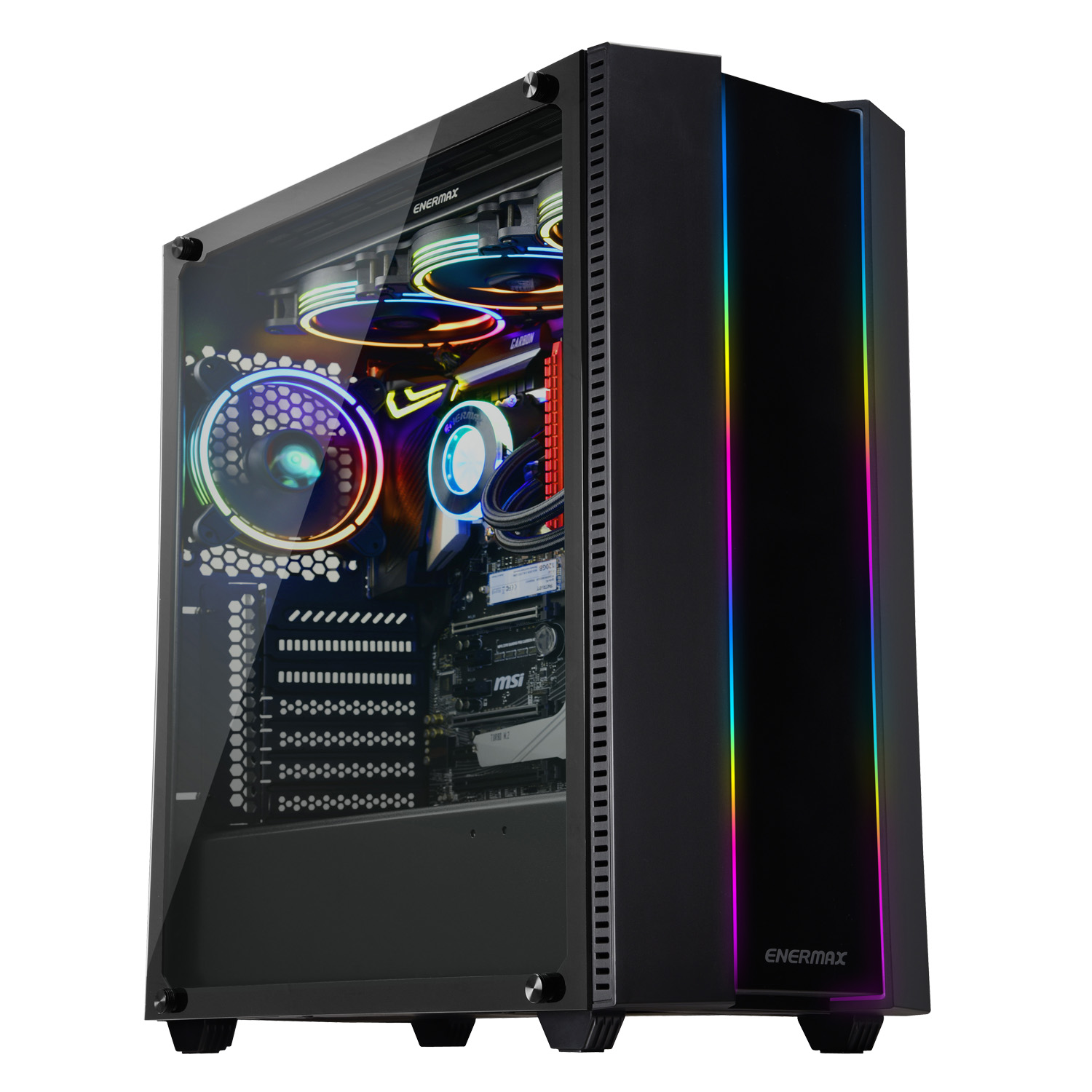

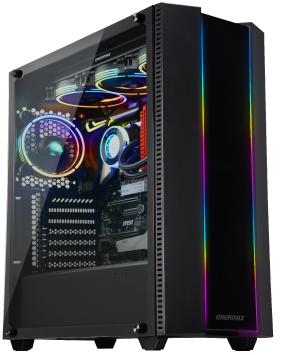

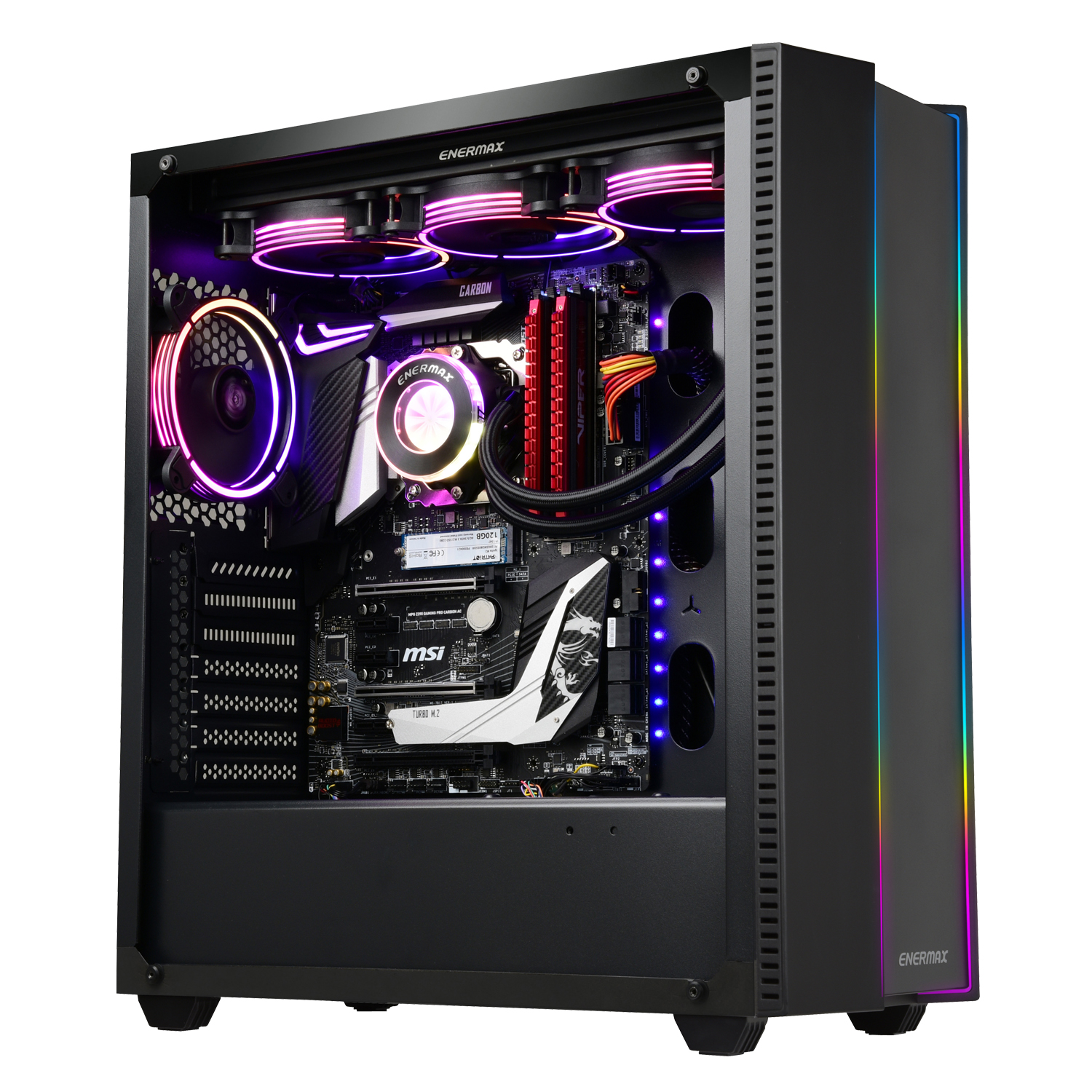

Edge-to-Edge Tempered Glass Side Panel

Full-view tempered glass side panel allows you to show off your rigs

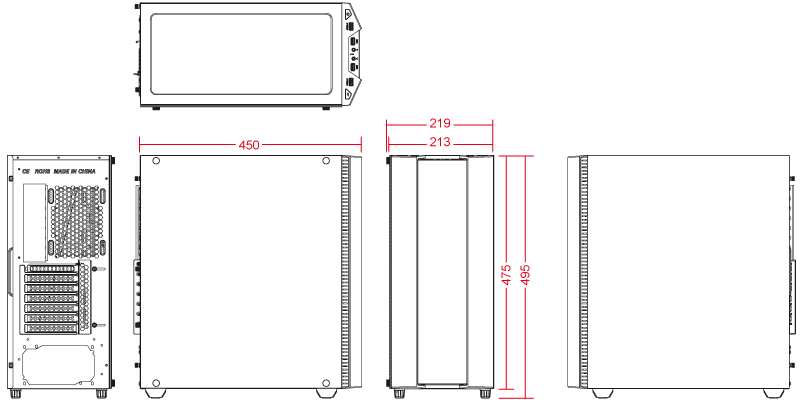

Dimension

unit:mm

Model Name ECA-MKT50-BB-ARGB
Dimensions (D x W x H) 450 x 213 x 495 mm
Material SPCC, T=0.6mm
M/B Type E-ATX, ATX, Micro ATX, Mini ITX
I/O USB3.0 x 1, USB2.0 x 2, HD Audio, Lighting control
3.5'' Drive Bays 2
2.5'' Drive Bays 6 (2 x Converted from 3.5”HDD tray)
Expansion Slots 7
Fan Slots - Front 3 x 120mm
Fan Slots - Top 2 x 140mm or 3 x 120mm
Fan Slots - Rear 1 x 120mm
Fan Slots - Tunnel 1 x 120mm
Radiator Support - Front 360mm / 240mm
Radiator Support - Top 360mm / 280mm / 240mm
Radiator Support - Rear 120mm
PSU Support 180mm / 200mm (Moving HDD cage forward)
Clearance - VGA card 410mm
Clearance - CPU Cooler 160mm
EAN code 4713157725097
UPC code 819315025093
Carton dimensions (D x W x H), (mm) D535 x W270 x H520mm
Gross Weight (kg) 8kgs
Net Weight (kg) 6.8kgs
