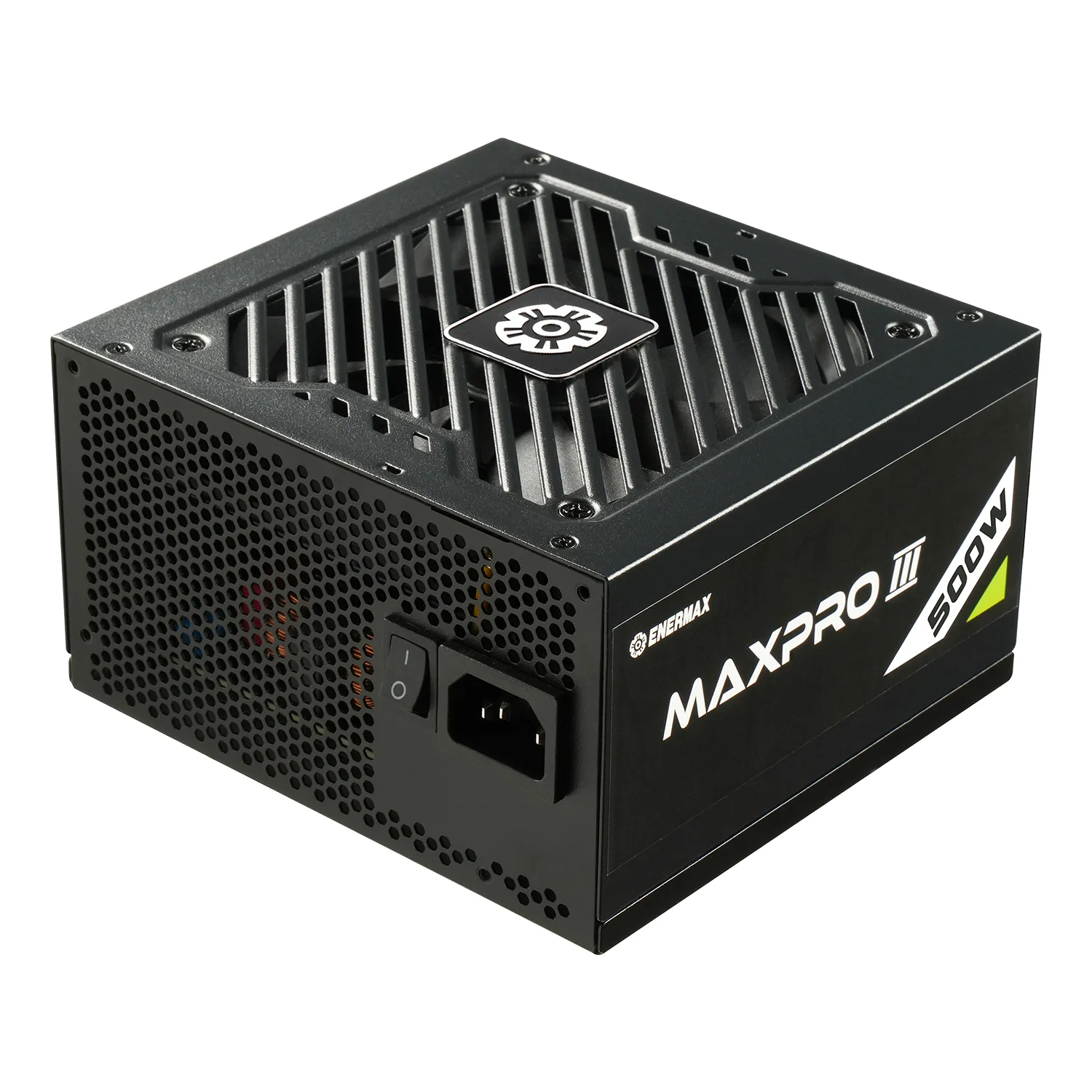

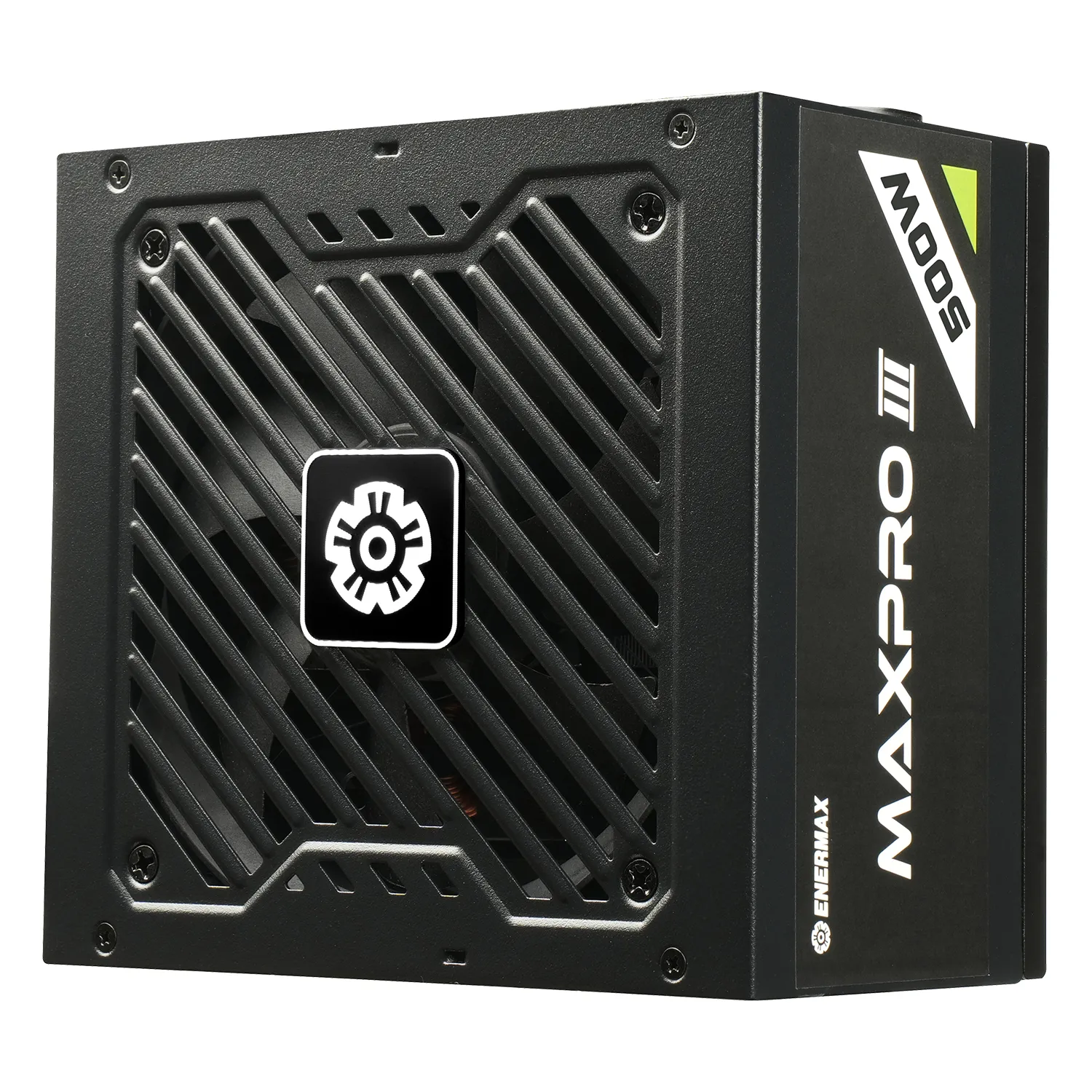

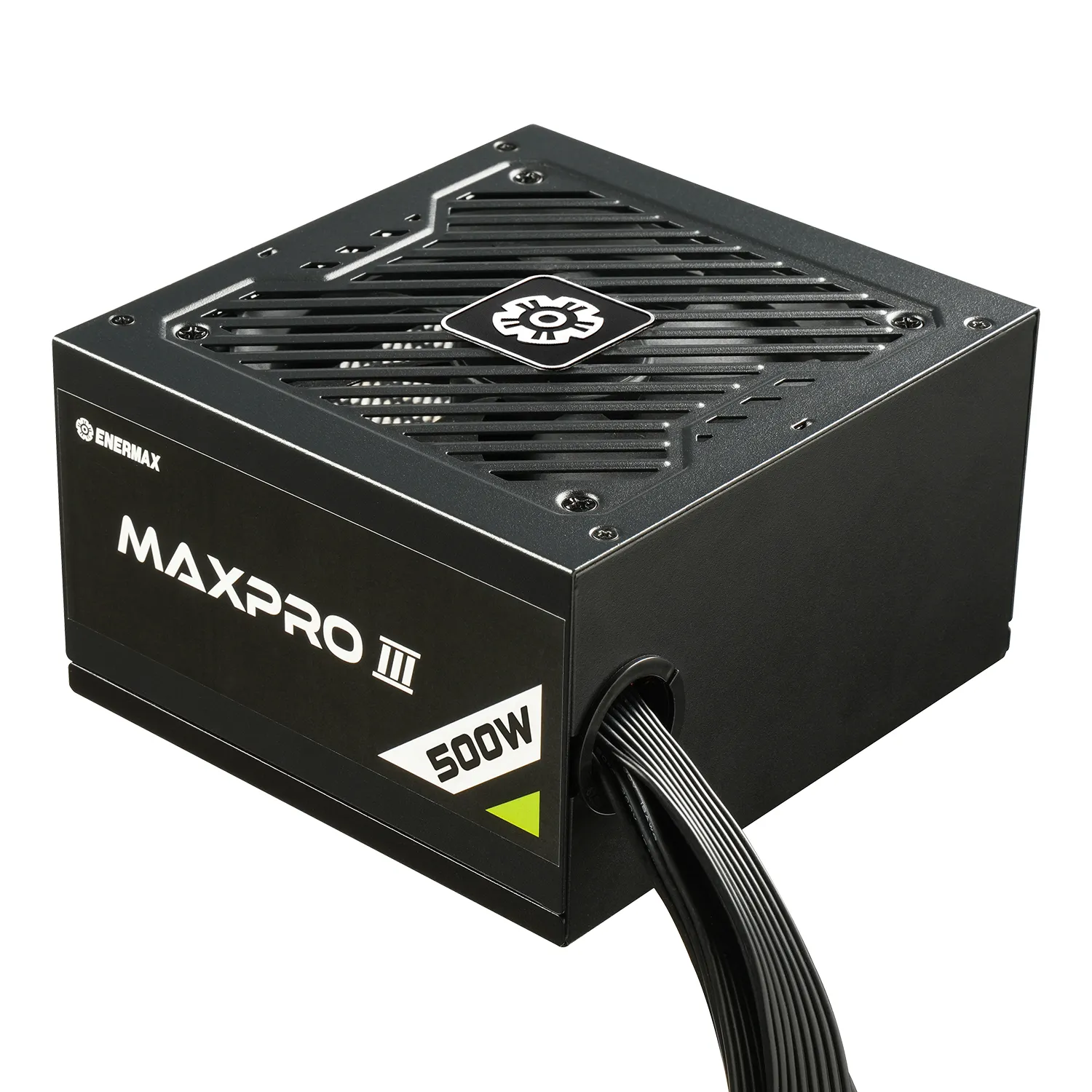

MAXPRO III 500W

MAXPRO III 500 Watt 80 PLUS®230V EU Standard Non-Modular Power Supply

▪ 80 PLUS® Standard 230V EU Certified
▪ Japanese Primary Capacitor
▪ All Black Flat Cable Design
▪ Single +12V Rail

COMPARE Compare List (0)

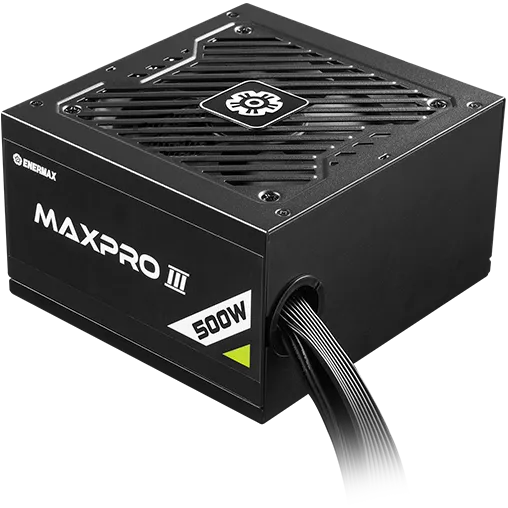

MAXPRO III

The MAXPRO III series is certified by 80 PLUS 230V EU, delivering up to 85% efficiency at 50% load, making it an energy-saving solution for most mainstream builds.

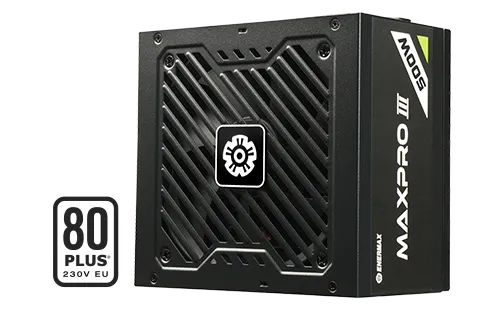

80 PLUS® Standard 230V EU Certified

Achieves up to 85% efficiency @ 50% load under 230Vac. Compliant with 80 PLUS® 230V EU Standard efficiency requirements.

MAXPRO III
MAXPRO III

Japanese Primary Capacitor

The use of Japanese primary capacitor increases the PSU’s lifespan.

100% Flexible Flat Cables

The black flat cable design allows easy installation and clean cable management. Furthermore, it helps improve the airflow.

MAXPRO III
  • MAXPRO III power supply with protection mechanism icon-1

    Over Current
    Protection

  • MAXPRO III power supply with protection mechanism icon-2

    Over Voltage
    Protection

  • MAXPRO III power supply with protection mechanism icon-3

    Under Voltage
    Protection

  • MAXPRO III power supply with protection mechanism icon-3

    Over Power
    Protection

  • MAXPRO III power supply with protection mechanism icon-4

    Over Temperature
    Protection

  • MAXPRO III power supply with protection mechanism icon-5

    Short Circuit
    Protection

Built-in Industrial Grade Protection

MAXPRO III series is equipped with comprehensive industry-grade protection mechanisms to ensure the safety and longevity of your components.

Non-Modular Connectors

MAXPRO III series features non-modular connectors that are black and low-profile. This design allows users to route the cables optimally, minimizing airflow obstruction and maintaining a clean build aesthetic.

Connect Type Connector Quantity   Cable Quantity Cable Length
Motherboard
24 (20+4)pin		 1 MAXPRO III power supply cables icon-1 1 1 x 55cm
CPU 4+4 pin 1 MAXPRO III power supply cables icon-2 1 1 x 65cm
PCIe (6+2) pin
+ (6+2) pin		 2 MAXPRO III power supply cables icon-3 1 1 x 55/15cm
3 x SATA +
1 x 4P Molex		 SATA: 6
4P Molex: 2		 SATA MAXPRO III power supply cables icon-4
Molex MAXPRO III power supply cables icon-5		 2 2 x 45/15/15cm

Single +12V Rail Design

MAXPRO III series is equipped with powerful +12V rails, makes GPU and CPU operate with less restriction to avoid shutting down from heavy usage .

Power Table
Model Name EMP500W EMP600W EMP700W
AC Input Voltage 200-240VAC, 50-60Hz
AC Input Current 6A
  DC Output
  Rated Combined Rated Combined Rated Combined
 3.3V 15A 100W 15A 100W 15A 100W
 +5V 15A 15A 15A
 +12V 38A 456W 46A 552W 56A 672W
 -12V 0.3A 3.6W 0.3A 3.6W 0.3A 3.6W
 +5Vsb 2.5A 12.5W 2.5A 12.5W 2.5A 12.5W
 Total Power 500W 600W 700W

Dimensions

150(W) x 86(H) x 140(D)mm

MAXPRO III dimension
EMP500W
ATX Motherboard 24 (20+4) pin 1
[ 1 x 55cm ]
CPU 4+4 pin 1
[ 1 x 65/15cm ]
2 x PCIe 6+2 pin  2
[ 1 x 55/15cm ]
3 x SATA + 1 x 4P Molex 6 + 2
[ 2 x 45/15/15cm ]

Notice:
For users looking to put in high-end, power-demanding GPU card, please correctly connect the 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply. This will prevent motherboard overloading and possibly cause damage to your system, including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration, and any damage to the power supply due to it will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat-type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please note that overloading could cause the connector or wire to melt down and void the warranty.

80 PLUS Efficiency Standard
Modular Non-modular
Cable type Black flat
Total power (W) 500
Input Voltage (V) 200-240
Input Current (A) 6
Input Frequency (Hz) 50-60
Fan size (mm) 120
Operating temperature (°C) 30
MTBF (hours) >100K
Protection OCP, OVP, UVP, OPP, OTP, SCP
Dimension (D x W x H), (mm) 140 x 150 x 86
+3.3V(A) 15
+5V(A) 15
+12V1(A) 38
-12V(A) 0.3
+5Vsb(A) 2.5
Combined Wattage 12V (W) 456
Combined Wattage 3.3V + 5V(W) 100
EAN code 4713157728630
UPC code 819315028636
Box dimensions (D x W x H), (mm) 260 x 180 x 115
