REVOLUTION D.F. 2 1200 Watt 80 PLUS Gold Fully Modular ATX 3.0 Power Supply

.Intel ATX 3.0 & PCIe 5.0 Ready
.High Wattage Power Supply in Compact Size
.Fully Modular 80 PLUS® Gold Certified
.Up to 200% Power Excursion and Instant Power-on Time
.ENERMAX Iconic Dust Free Rotation Technology
.Semi-Fanless Tech. for Absolute Silence Under 20% Load
.Perfect for The Next-Gen Graphics Cards

COMPARE Compare List (0)

REVOLUTION D.F. 2

FULLY MODULAR ATX POWER SUPPLIES

Revolution D.F. 2 power supply cables
REVOLUTION D.F. 2 power supply in compact 140mm-depth size
REVOLUTION D.F. 2 power supply in compact 140mm-depth size

HIGH-WATTAGE PSU THAT FITS IN 99% OF MAINSTREAM CASES

With a compact 140mm-depth size, REVOLUTION D.F. 2 is smaller than most of the high-wattage power supplies in the market, providing more options for friendly installation in 99% of mainstream cases.

D.F.R. UNLEASH THE FULL POTENTIAL OF YOUR SYSTEM

REVOLUTION D.F. 2 is equipped with ENERMAX iconic Dust Free Rotation technology, an innovative self-cleaning solution that allows you to unleash the full potential of your system and ensure a stable power delivery for years. The design will enable the fan inside the power supply to spin smartly, instantly blowing away unwanted dust to prevent any future disruption.

Revolution D.F. 2 power supply equipped patented Dust Free Rotation technology

Smart auto-spin will be activated upon powering on.

Revolution D.F. 2 power supply equipped patented Dust Free Rotation technology

D.F.R. blows away unwanted dust to prevent any future disruption and ensure a stable power delivery for years.

ATX 3.0 CERTIFIED WITH UP TO 200% POWER EXCURSION

The REVOLUTION D.F. 2 series is formally certified for ATX 3.0 compliance with performance improvements across all desktop segments. By using PCle 8 pin-12VHPWR Splitter cables included, you can be geared to the latest GPUs.

It can sustain up to 200% power load for power excursion and shorter power-on time to make you power up your system faster.

Revolution D.F. 2 power supply has 200% power excursion and shorter power-on time

PERFECT FOR THE NEXT-GEN GRAPHICS CARDS

REVOLUTION D.F. 2 will fit in perfectly with most modern graphic cards with our power recommendation between 750 to 1,200 watts, which will ensure next-generation performance, visuals, and efficiency for gamers and creators.

1 GPU Power Connector

2 GPU Power Connector

3 GPU Power Connector

12+4pin GPU Power Connector
(With Optional Adaptor Cable)



INDUSTRIAL-GRADE DUAL-BALL BEARING

The REVOLUTION D.F. 2 is equipped with a high-performance fan featuring industrial-grade dual-ball bearings, which effectively reduces unnecessary friction to optimize its performance. By incorporating these high-quality dual-ball bearings, the REVOLUTION D.F. 2 achieves enhanced stability and exceptional quality. This design not only extends the lifespan of the unit but also maximizes the performance of your system for your most demanding needs.

Revolution D.F. 2 power supply applied advanced LLC and Synchronous Rectifier (SR) design
Revolution D.F. 2 power supply applied advanced LLC and Synchronous Rectifier (SR) design

RELIABLE OPERATION FOR HIGH-END SYSTEM

REVOLUTION D.F. series applied advanced LLC and Synchronous Rectifier (SR) design which provides uncompromised power output. DC-to-DC conversion optimizing the stability for better voltage regulation. These ensure reliable operation for high-end processors and graphics cards.

QUIET OPERATION AND ABSOLUTE SILENCE DURING MINIMUM LOAD

Designed with ENERMAX Semi-Fanless technology, the fan be entirely off until the load exceeds 20% or over-temperature for you to enjoy absolute silence of 0 dB(A) during minimum load. The high-pressure power supply fan will also ensure excellent cooling performance with minimized noise and vibration while optimizing stability.

Revolution D.F. 2 power supply has semi-fanless technology
Revolution D.F. 2 power supply has semi-fanless technology

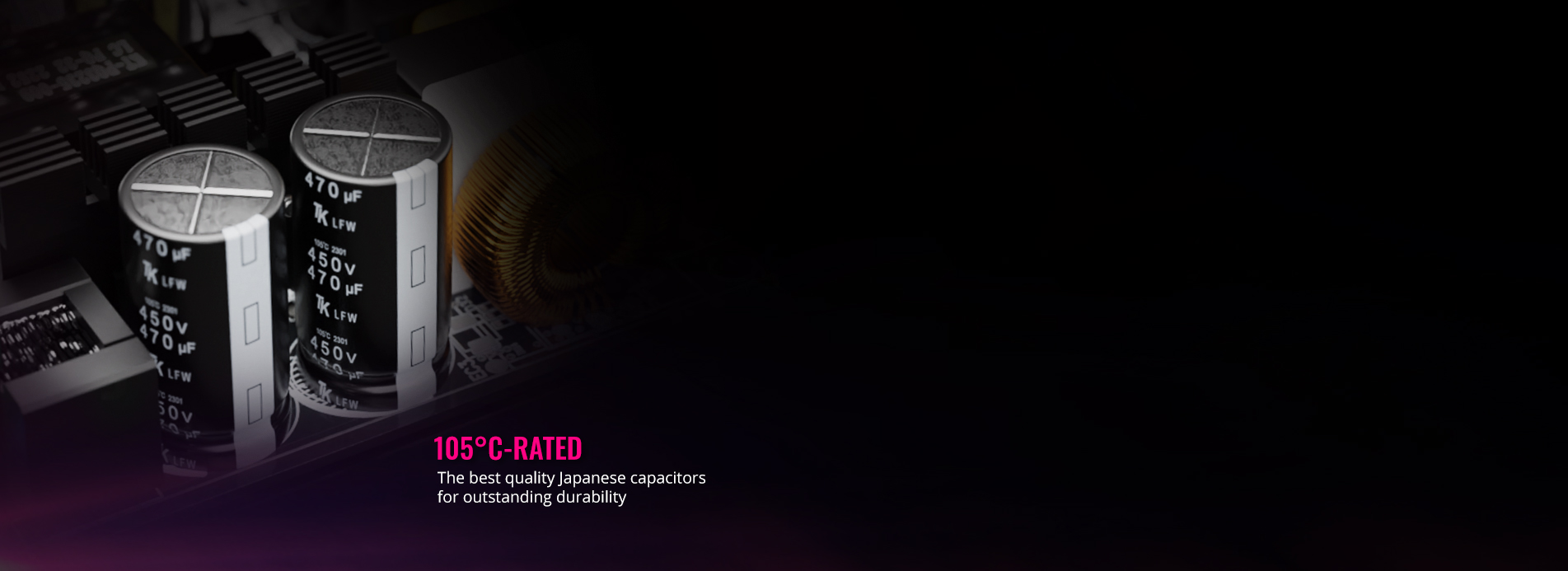

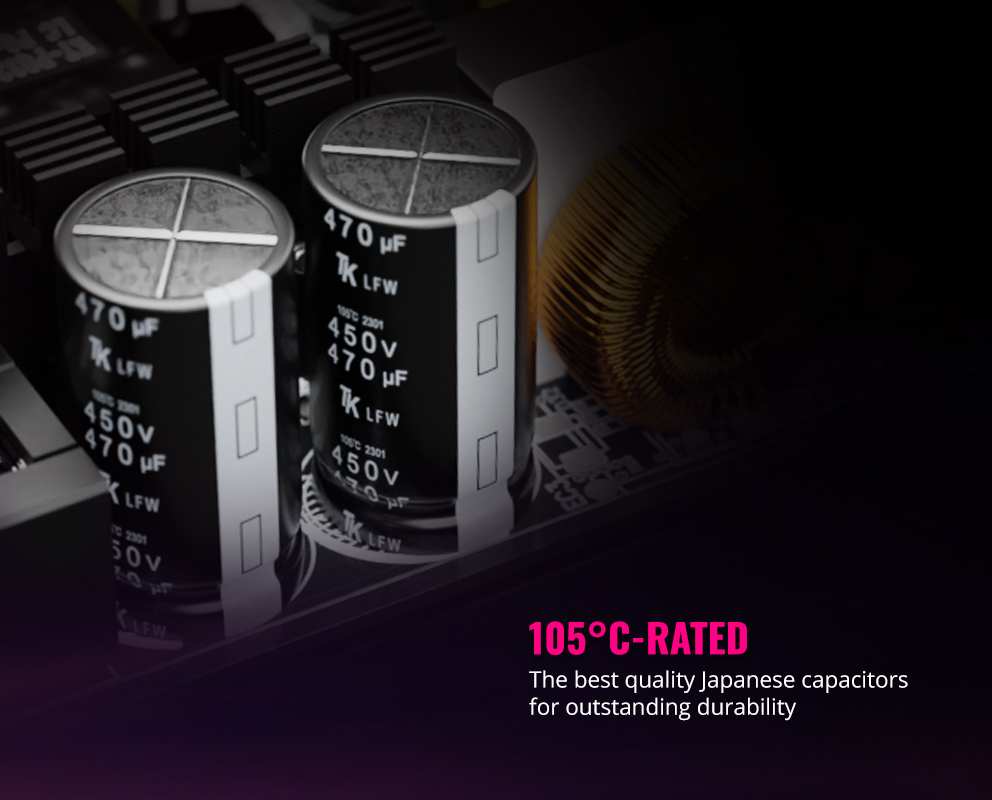

SUPERIOR EFFICIENCY AND JAPANESE CAPACITOR

REVOLUTION D.F. 2 is 80 PLUS® Gold certified with up to 92% efficiency and high-quality Japanese electrolytic capacitors to reduce unnecessary power consumption, save energy and create lower temperatures.

CONNECT YOUR 40 SERIES GPUS

With the arrival of PCIe 5.0, the ENERMAX 12VHPWR adaptor cable (*optional) can deliver up to 600W of power to the latest graphics cards. The cable is 600mm long and with dual 8-pin PCIe connectors for PSU side and 12VHPWR connector for GPU side. It replaces the bulky standard adapter solution of your graphics cards for easier cable management.

HOW TO PROPERLY PLUG THE 12+4 PIN 12VHPWR CABLE (*OPTIONAL) TO PREVENT DAMAGE

Use your fingers to hold both sides of the cable and insert the cable into the port straight in line with the port. Make sure to insert the cable firmly and evenly straight in without any gaps or bending under 35mm from the plug downwards.

=

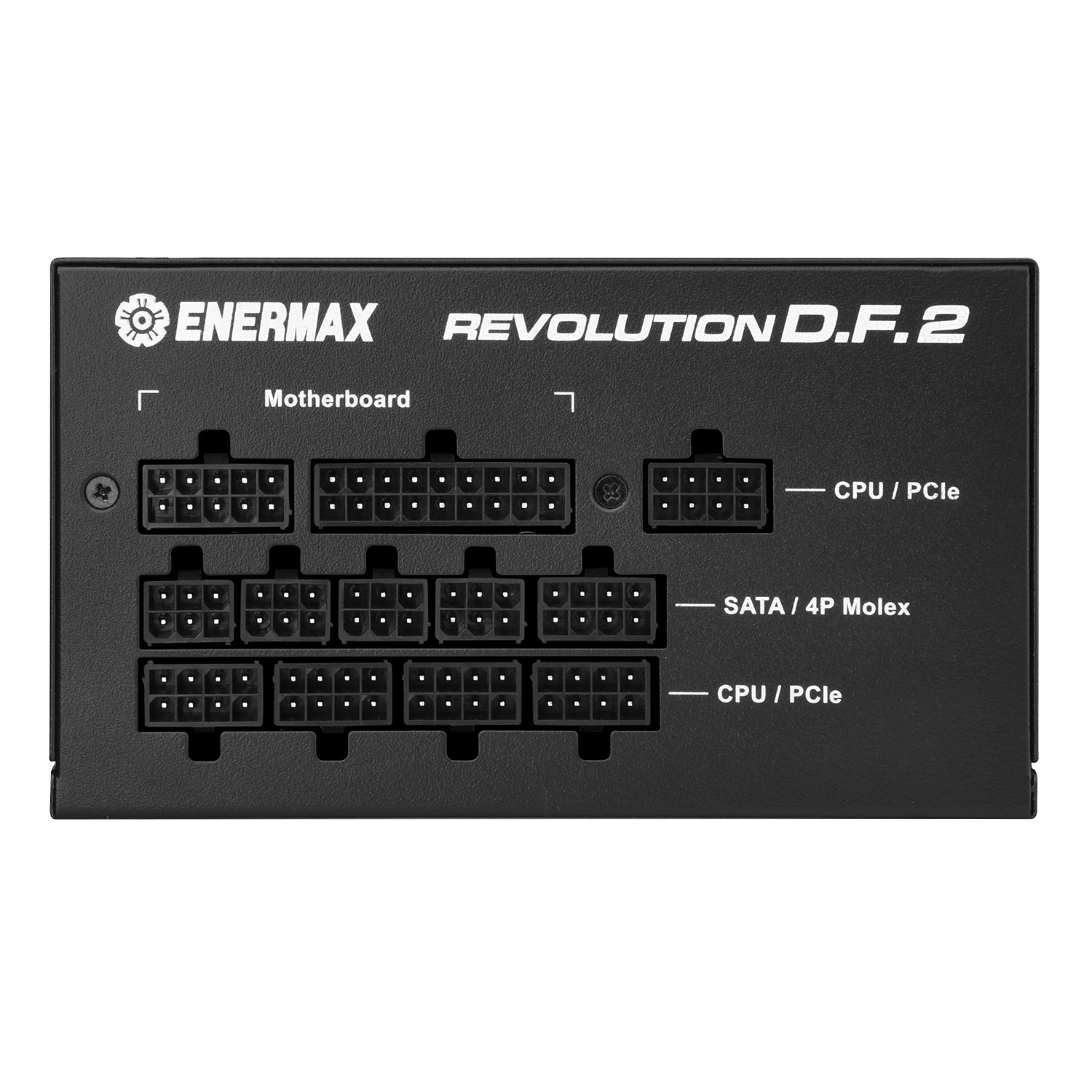

CABLE AND POWER AS YOU NEED

Only connect the cable you need with a fully modular design. REVOLUTION D.F. 2 will also deliver the power you need for the best compatibility and avoid overloading with single rail +12V design.

Revolution D.F. 2 power supply cables
Revolution D.F. 2 power supply cables

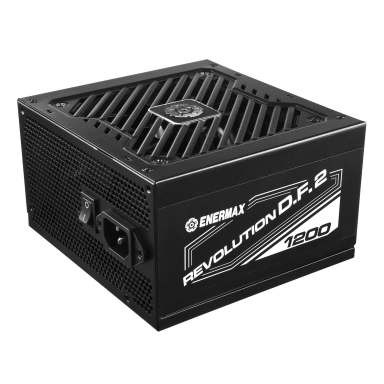

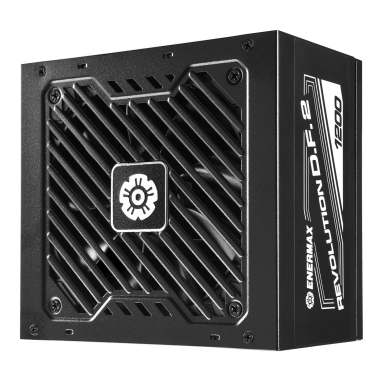

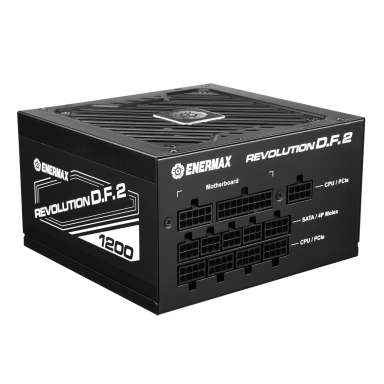

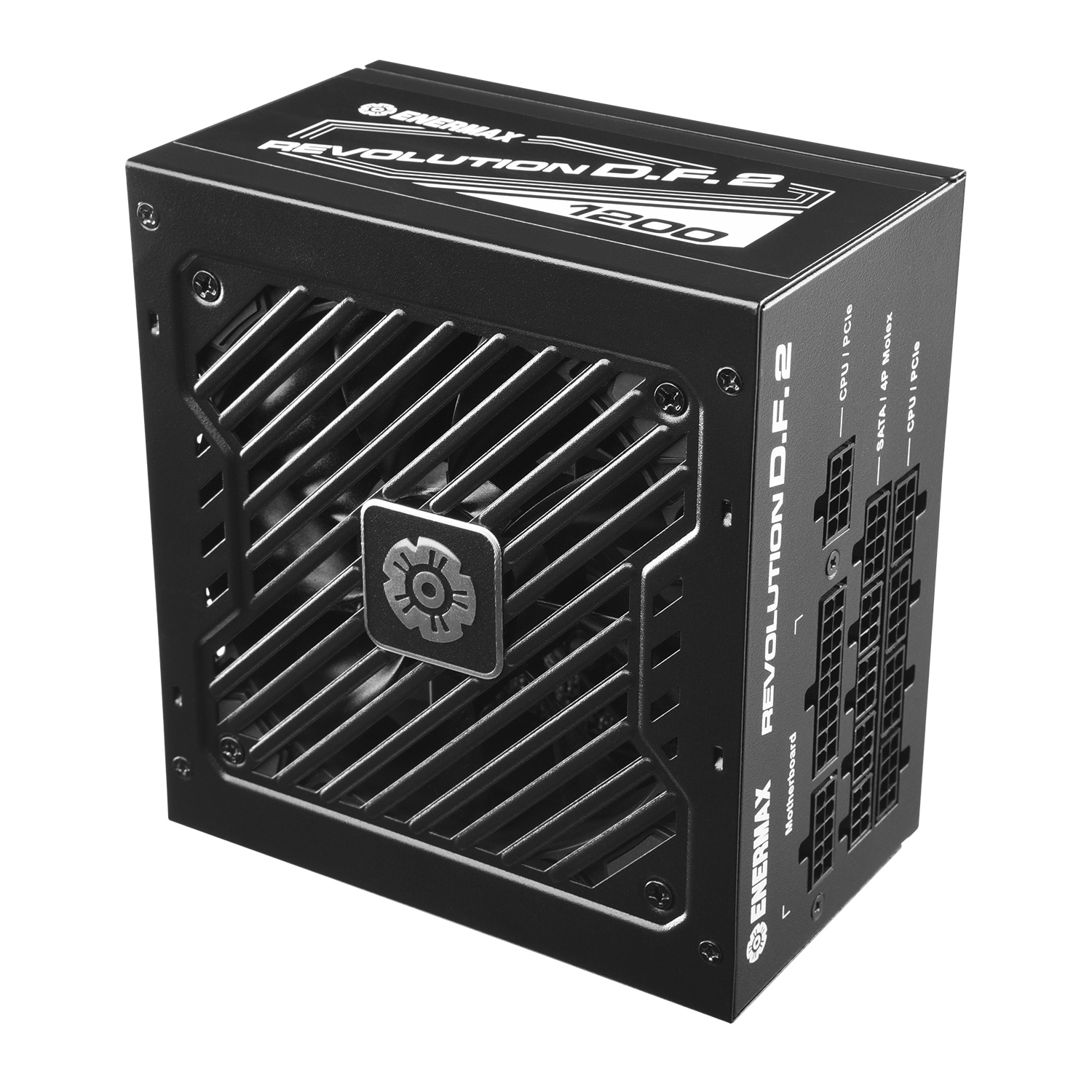

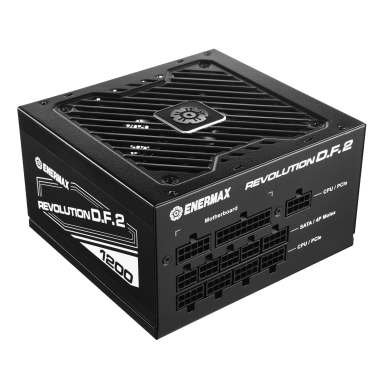

REVOLUTION D.F. 2 power supply
REVOLUTION D.F. 2 power supply

REVOLUTION D.F. 2
POWER SUPPLY

THE REVOLUTION CONTINUES

ERS1200EWT

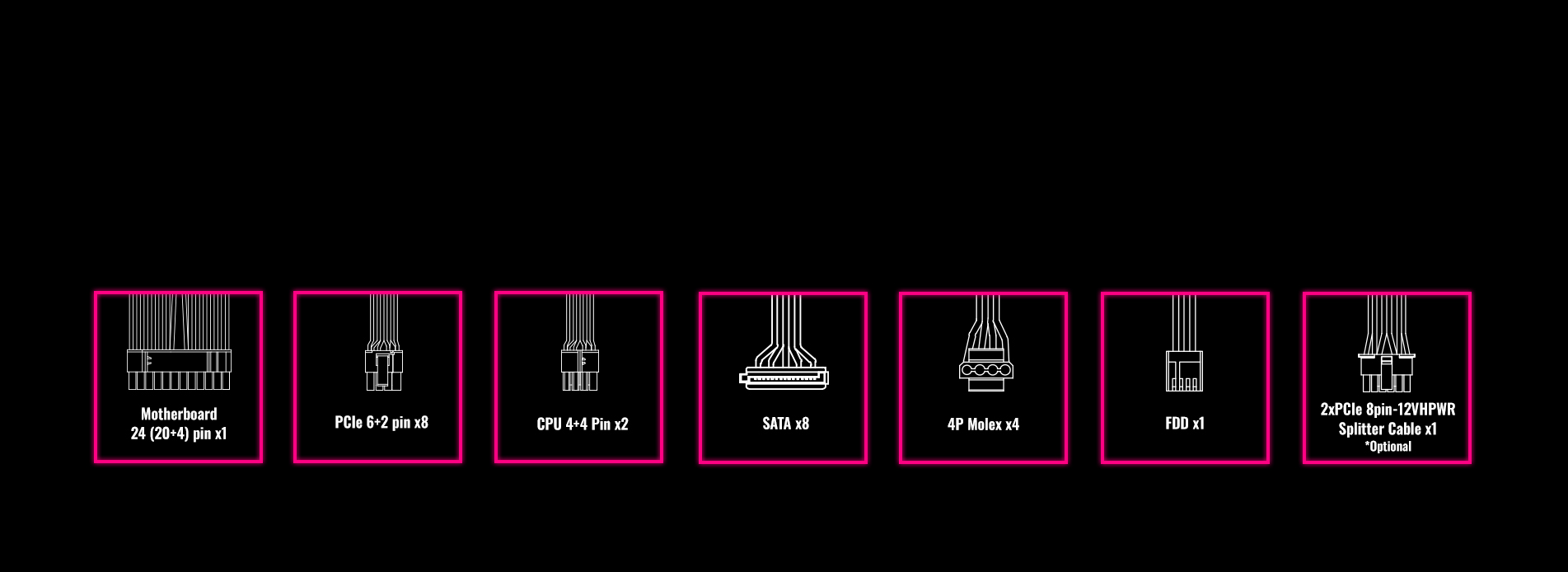

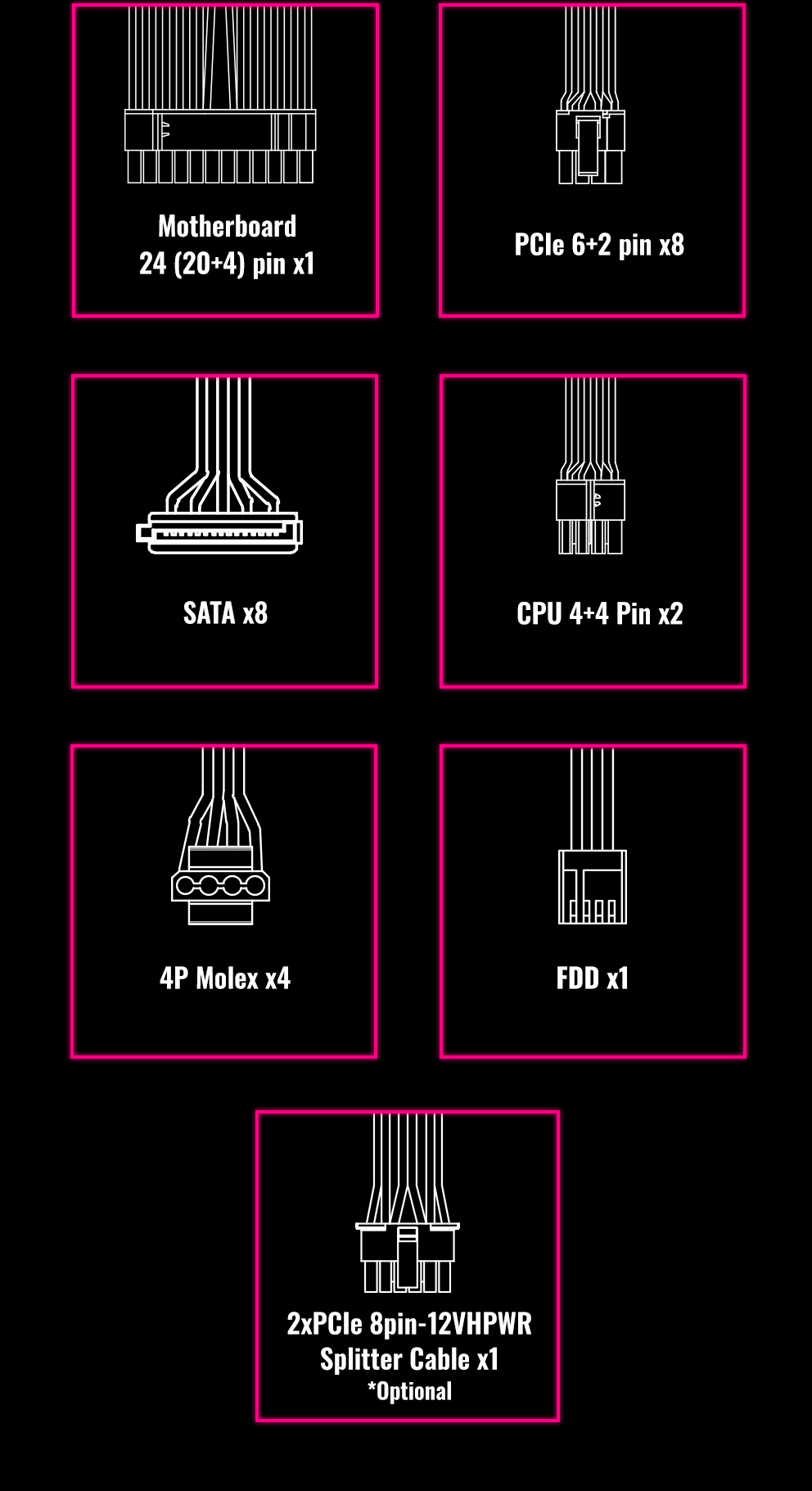

Motherboard 24 (20+4) pin 1
[ 1x 65cm ]
CPU 4+4 Pin 2
[ 1 x 60cm ]
[ 1 x 70cm ]
PCIe 6+2 pin 8
[ 4 x 65/15cm ]
12VHPWR Adapter 12+4 pin (Optional) 1
[ 1 x 60cm ]
SATA 6
[ 2 x 50/15/15cm ]
1x SATA + 2x 4P Molex 2+4
[ 2 x 50/15/15cm ]
FDD 1
[ 1 x 10cm ]

Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCIe connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

North America
Europe
Taiwan
Worldwide
80 PLUS Efficiency GOLD
Modular Fully modular
Cable type Black flat
Total power (W) 1200
Input Voltage (V) 100-240
Input Current (A) 15-7
Input Frequency (Hz) 47-63
Fan size (mm) 120
Operating temperature (°C) 40
MTBF (hours) >100K
Protection OCP,OVP, UVP, OPP, OTP, SCP
Dimension (D x W x H), (mm) 140 x 150 x 86
+3.3V(A) 20
+5V(A) 20
+12V1(A) 100
-12V(A) 0.3
+5Vsb(A) 2.5
Combined Wattage 12V (W) 1200
Combined Wattage 3.3V + 5V(W) 130
EAN code 4713157727329
UPC code 819315027325
Box dimensions (D x W x H), (mm) 305 x 200 x 95
