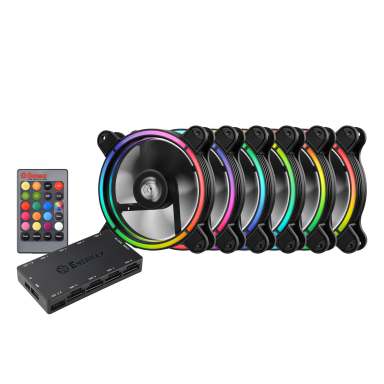

T.B. RGB 120mm RGB PWM PC Case Fan, 6 Pack with 3-in-1 Remote Control

‧ Stunning RGB Lighting Effects
‧ RGB Sync Ready
‧ Handy 3-in-1 Remote Control

T.B. RGB

Others

Compatible with the 4-pin RGB header(s) on motherboards

Fan Model Comparison

Model No.	UCTBRGB12-BP6	UCTBRGB12-SB	UCTBRGB12-LF	UCTBRGB12-TUF
Compatible Product(s)	Retail Pack	ENERMAX Case-SABERAY	ENERMAX Liquid Cooler-LIQFUSION	ENERMAX Power-RevoBron TGA
LED Type	RGB	RGB	Addressable RGB (Indivisual IC)	RGB
Speed	500-1500 RPM	1000RPM	500-2000RPM	1000RPM
RGB Connector
Pin Definition
Control Method	Via T.B. RGB Control box	Via RGB Header	*Via Addressable RGB Header (The RGB header 4-Pin assignment is 5V/D/G)	Via RGB Header

* Please notice what type of the pin definition is supported by motherboard

Model	UCTBRGB12-BP6
Fans/Model	6
Dimension (mm)	120 (W) x 120 (H) x 25 (D)
Speed (RPM)	1500 (±10%) *500-1500 (±10%) via remote-control
Air Flow (CFM)	47.53 (max)
Air Flow (m³/h)	80.75 (max)
Static Pressure (mm-H2O)	1.66 (max)
Fan Maximum Noise (dBA)	22
Rated Voltage Fan (V)	12
Rated Current Fan (A)	0.15
Rated Voltage RGB LED (V)	12
Rated Current RGB LED (A)	0.3/fan
MTTF (hours)	≧160,000 @ 25°C
Connector	6-PIN
Accessory	24 x Screw 1 x RGB control box 1 x Remote contro
