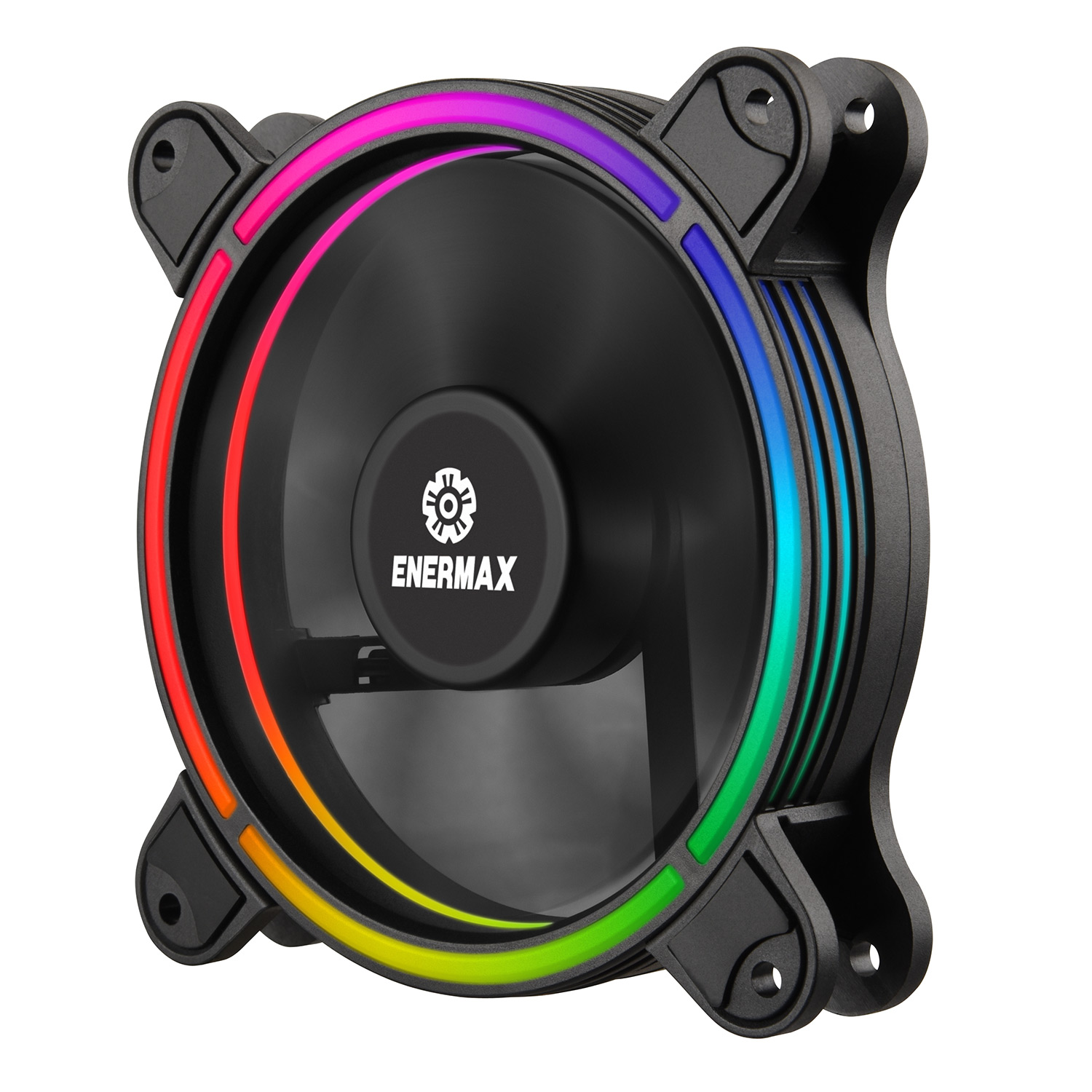

T.B. RGB AD. 120mm ARGB PWM PC Case Fan

‧ Unique 4-ring RGB Lighting Effects
‧ Addressable RGB Sync Ready
‧ Patented Twister Bearing Technology





Addressable RGB lighting with 16.8 million colors presents an epic visual experience




Unique Halo Arc-shaped Frame

Patented Modular Frame structure with the halo arc-shaped frame can create unique 4-ring lighting effects




ENERMAX LED LIGHTING Technology provides consistent and uniform luminance

T.B. RGB AD.

Incredibly bright and even lighting with no visible spots

Others

Uneven lighting with visible spots




Addressable RGB Lighting Synchronization

Synchronizable RGB lighting via addressable RGB header of motherboards (3 pin assignment is 5V/D/G)




Patented Twister Bearing technology

Long life and low noise

Detachable blade for easy cleaning




Smart PWM speed control maintains balance between silence and performance




Shockproof rubber pads minimize vibration during operation




2 ways to control RGB lighting effects

Through Motherboard Software

Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G)

Through ENERMAX Integrated RGB Control Box

Users can use the included control box to adjust preferred lighting effects (10 pre-set effects), brightness and speeds




Product Introduction

Model UCTBRGBA12P-BP3
Fans/Model 3
Dimension (mm) 120(W) x 120(H) x 25(D) mm
Speed (RPM) 500- 1500 (±10%) rpm
Air Flow (CFM) 13.71 ~ 47.53 CFM
Air Flow (m³/h) 23.29 ~ 80.75 m3/h
Static Pressure (mm-H2O) 0.19 ~ 1.66 mm-H2O
Fan Maximum Noise (dBA) 14 ~ 22 dBA
Rated Voltage Fan (V) 12V
Rated Current Fan (A) 0.15A
Rated Voltage RGB LED (V) 5V
Rated Current RGB LED (A) 0.8A / fan
MTTF (hours) ≧160,000 hours @ 25oC
Connector 4-pin PWM connector x 1
3-pin ARGB connector (5V/D/G) x 1
Accessory ENERMAX integrated RGB control box x 1
ARGB 3 to 1 cable (5V/D/G) x 1
GIGABYTE ARGB adapter x 1
PWM 3 to 1 cable x 1
Molex adapter x 1
Screw x 12
EAN 4713157723987
UPC 819315023983
Box Dimension 133 x 160 x 100 mm
Gross Weight / unit 0.75kg
Carton Dimension 538 x 335 x 309 mm
Q'ty / carton 20 PCS
Gross Weight / Carton 14.9kg
