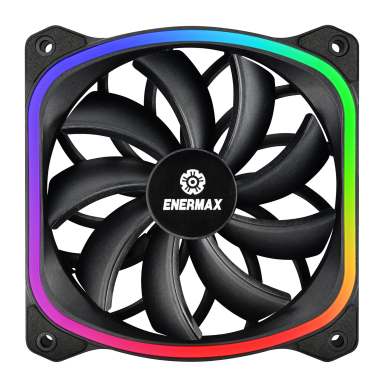

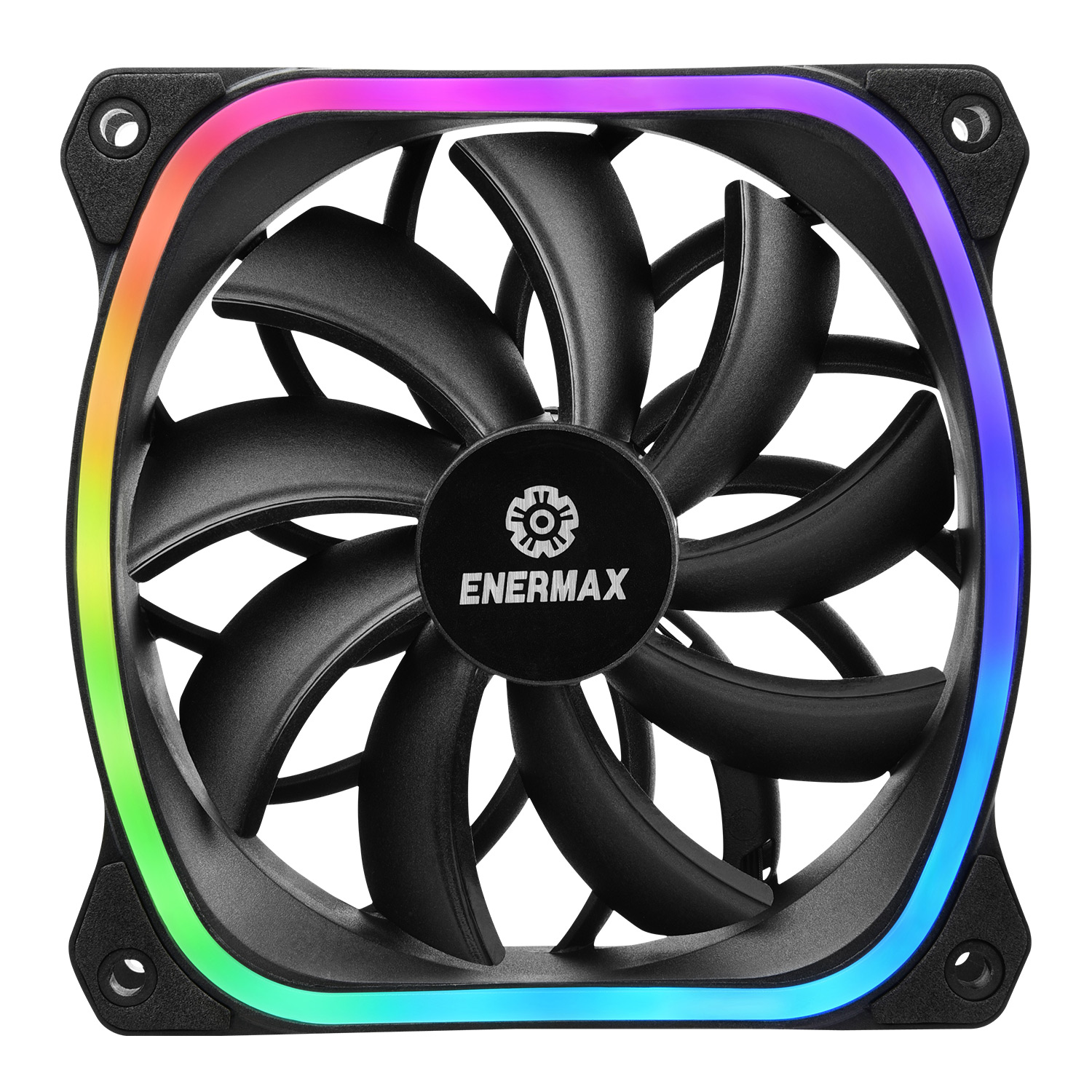

SquA RGB 120mm PWM Fan- Single Pack

‧ Unique square-shaped RGB frame at the front and
diamond bright at the back
‧ Support addressable RGB motherboard sync
‧ Enlarged blade surface increases more airflow by 40%
‧ Optimized low 300RPM

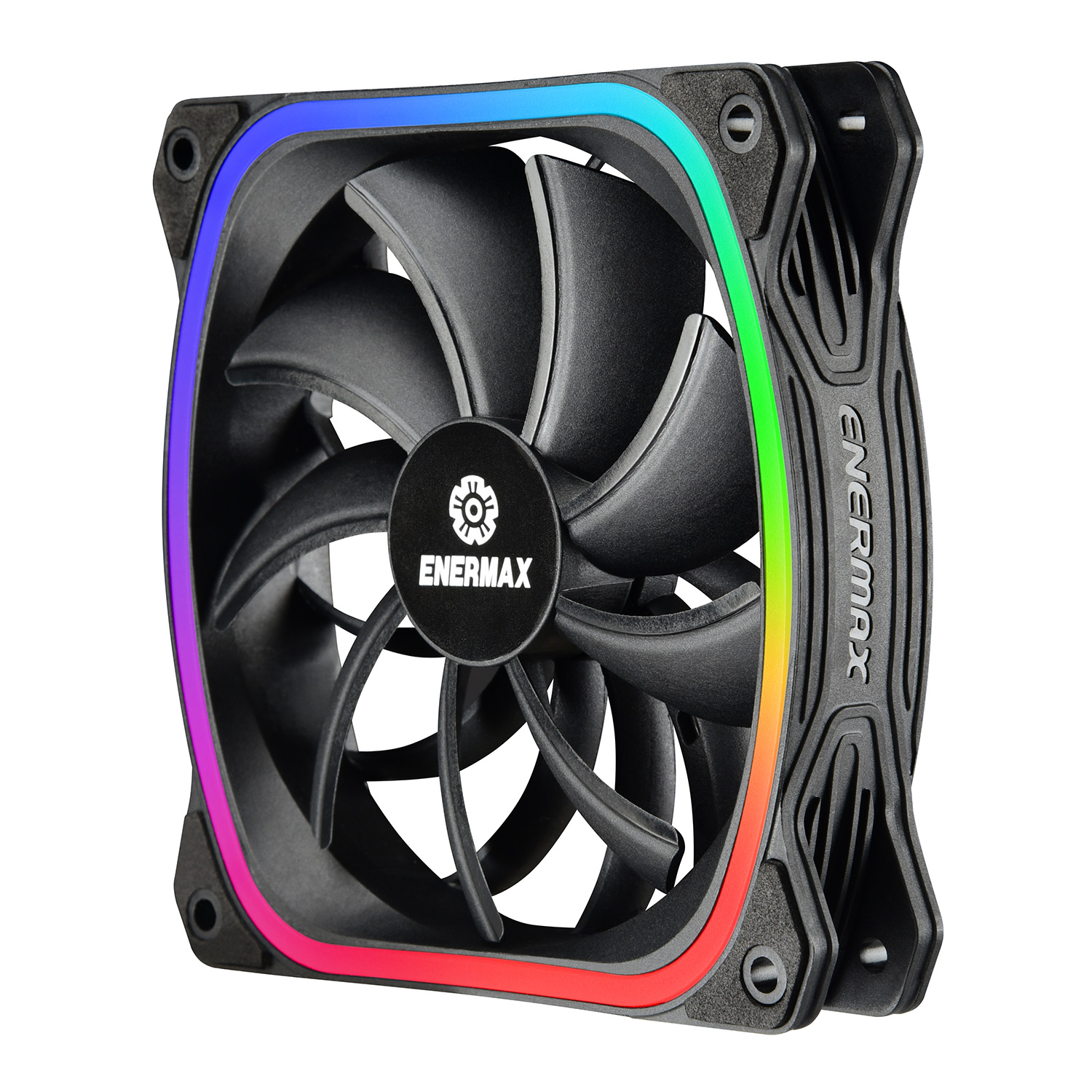

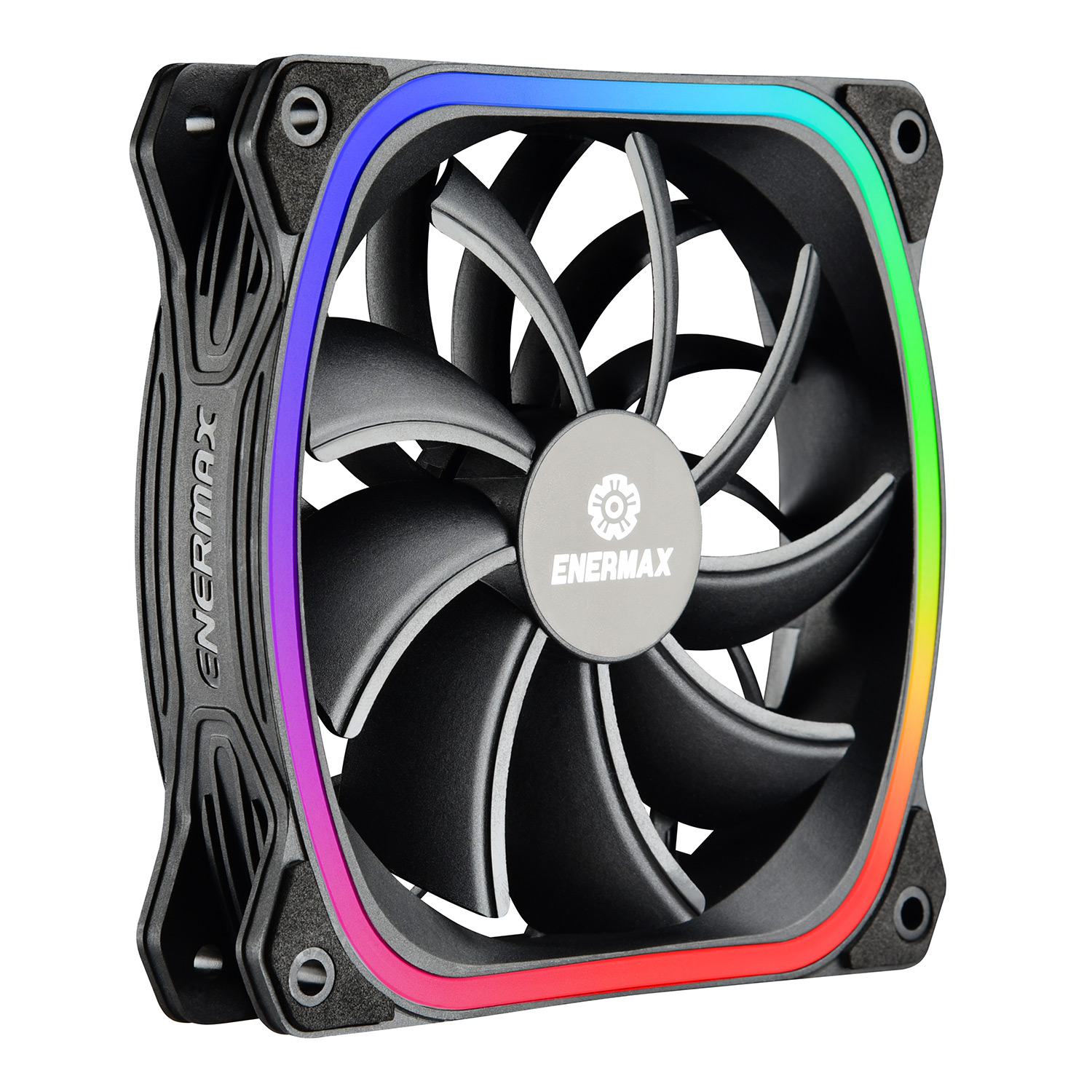

Unique Square-shaped Lighting

SquA RGB features square-shaped lighting and also supports addressable RGB lighting sync with 16.8 million color options




Case Moddings and Builds with Square-shaped Lighting Fan

SquA RGB provides users with 2 types of lighting patterns to make the perfect match with system configuration

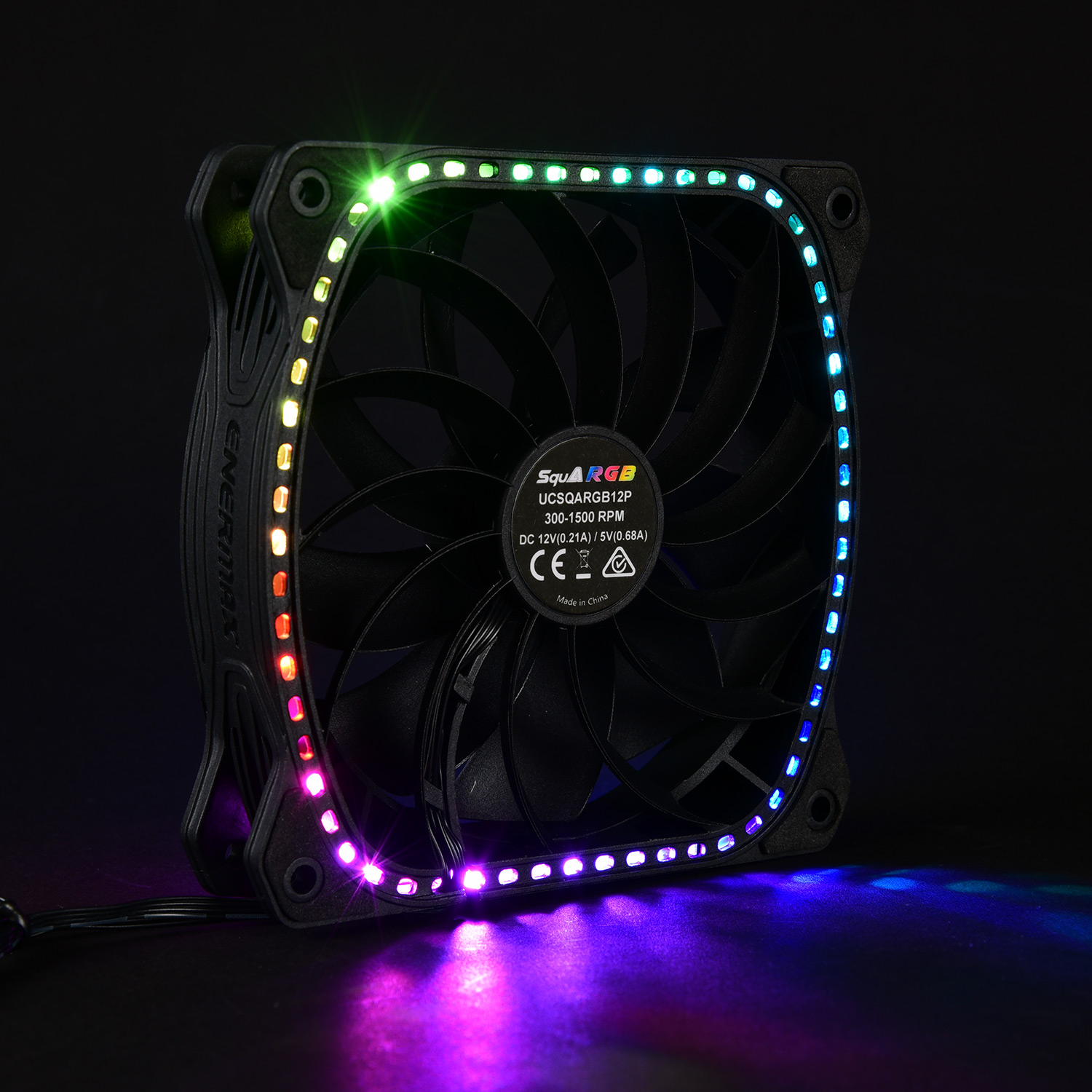

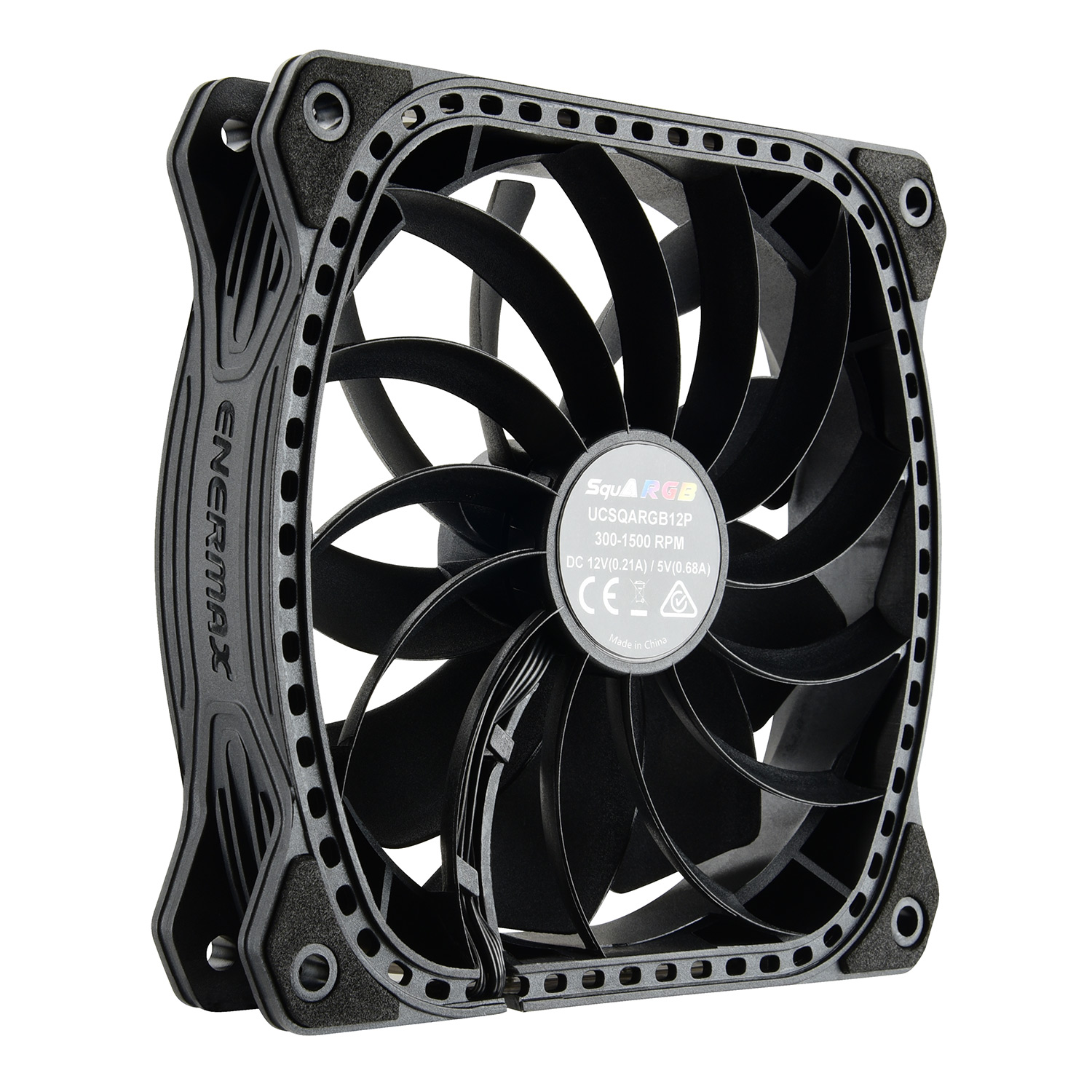

Diamond Bright Behind SquA RGB

A gleam through the holes around the back of the frame delivers the incredible visual experience as diamonds shining in the dark




Addressable RGB Lighting Synchronization

Synchronizable RGB lighting via addressable RGB header of motherboards (3 pin assignment is 5V/D/G)




Up to 40% Stronger Airflow

The enlarged blade surface can create up to 40% stronger airflow than other RGB fans

SquA RGB

Other




ENERMAX’s Air Inlet Design

ENERMAX’s Air Inlet Design brings more air in and also facilitates the airflow efficiency




Vortex Frame Design

Vortex frame design can generate concentrated airflow, especially perfect for CPU cooler




Optimized low 300RPM starting speed

The smart PWM speed control provides 300RPM starting speed for superior silent experience

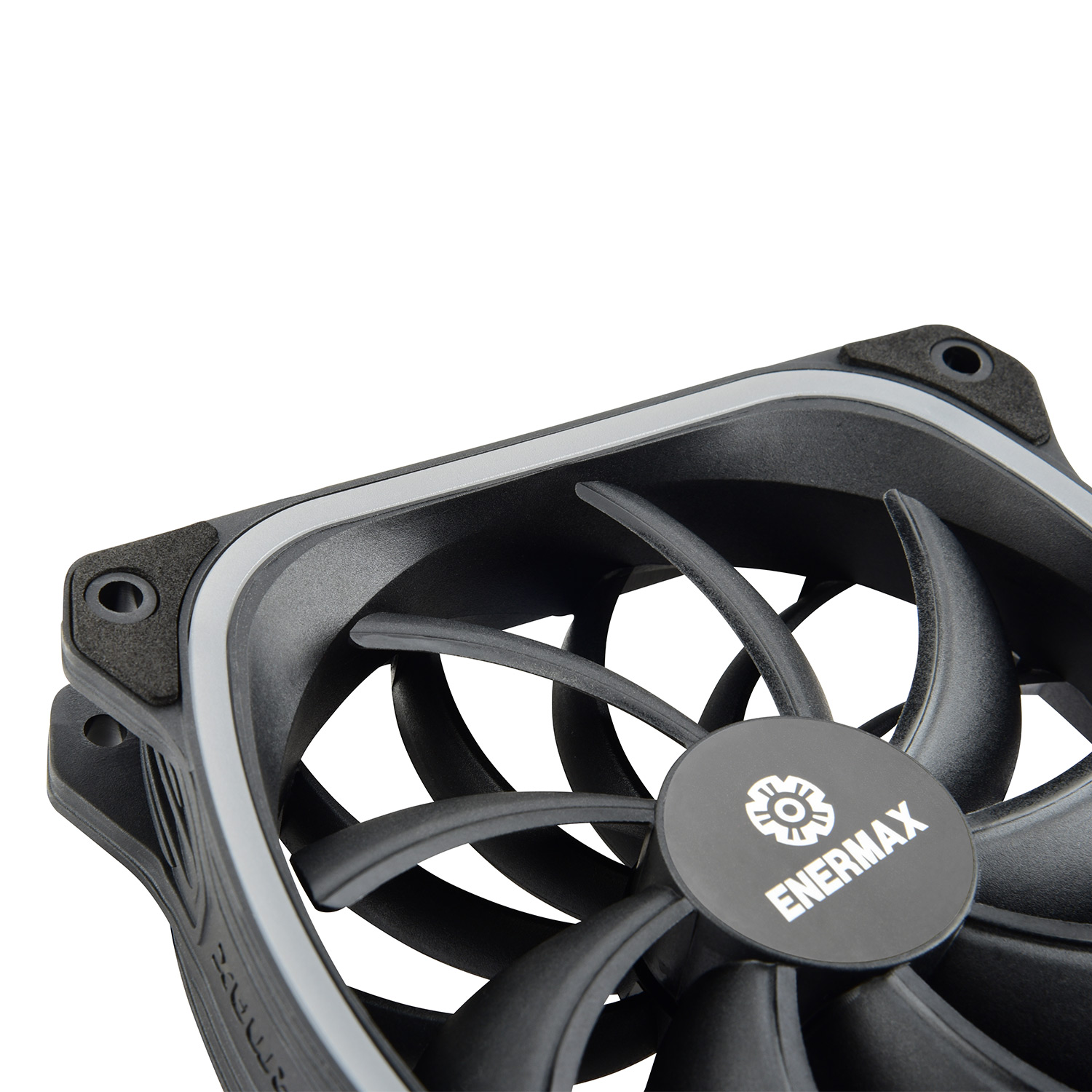

Vibration-damping Rubber Pads

Vibration-damping rubber pads absorb the excessive vibration and noise

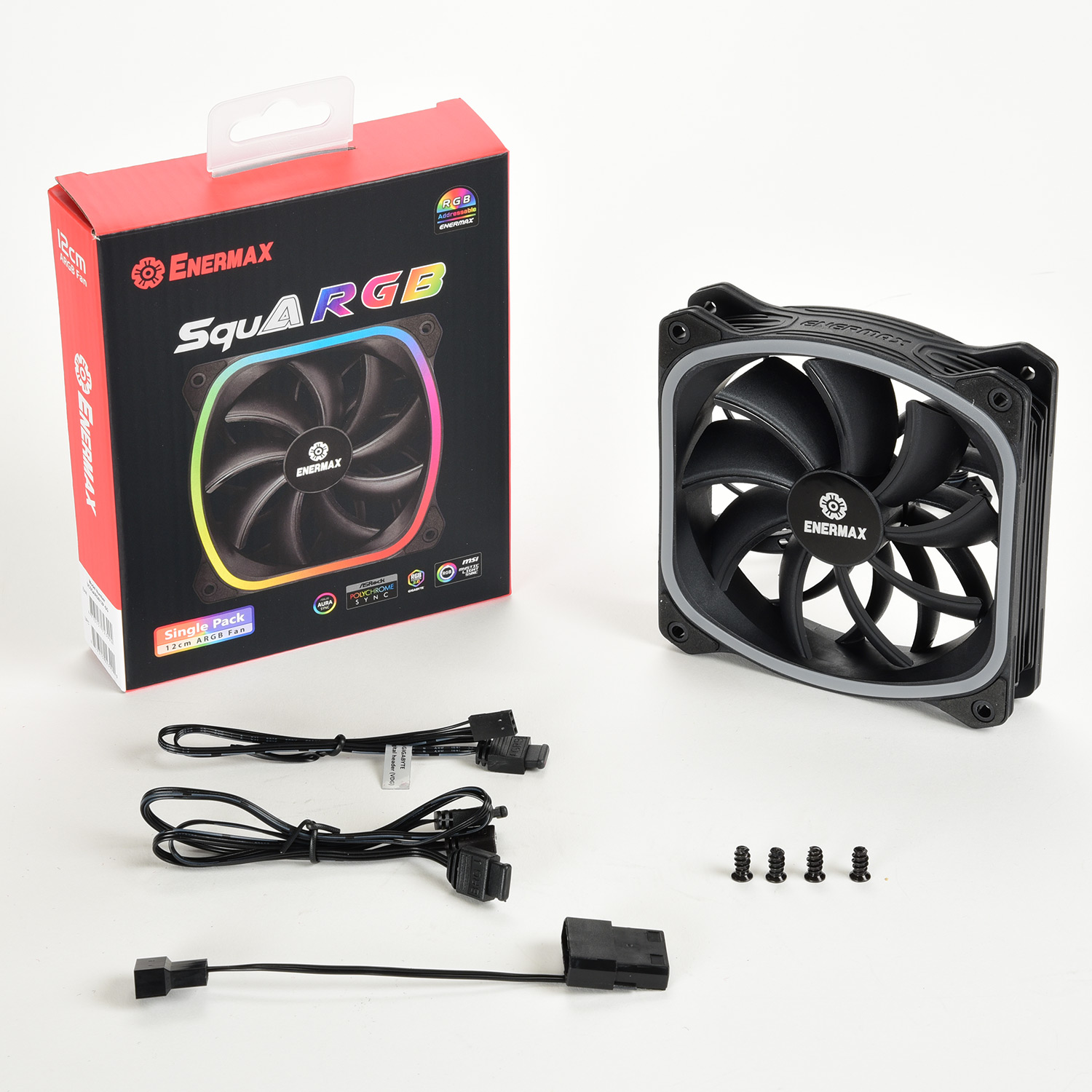

Fan Package

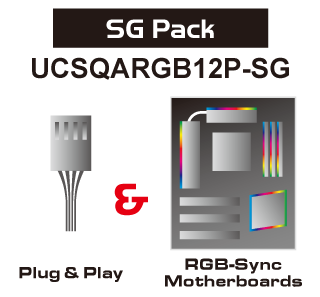

Plug & Play to Display Rainbow RGB Lighting Effects

  • For non-RGB motherboard users

    Users can use the PWM power cable to connect the fan to create constant rainbow RGB lighting effects

  • For addressable RGB motherboard users

    Users can sync the RGB lighting with motherboards featuring Addressable RGB header (3 pin assignment is 5V/D/G)




Product Introduction

型番 UCSQARGB12P-SG
ファン/台数 1
寸法 (mm) 120(W) x 120(H) x 26(D) mm
ファンスピード (RPM) 300- 1500 (±10%) rpm
エアーフロー (CFM) 24.53 ~ 68.27 CFM
エアーフロー (m3/h) 41.67 ~ 115.99 m3/h
静圧 (mm-H2O) 0.17 ~ 1.898 mm-H2O
最大ノイズ (dBA) 12 ~ 23 dBA
定格電圧 (V) 12V
定格電流 (A) (ファン) 0.21A
定格電圧 (V) (RGB LED) 5V (or 12V when connecting to the PWM header only)
定格電流 (A) (RGB LED) 0.68A (or 0.28A when connecting to the PWM header only)
MTBF (hours) ≧100,000 @ 25°C
コネクター 1 x 4-pin PWM connector
1 x 3-pin ARGB connector (5V/D/G)
アクセサリー 1 x ARGB Y cable (5V/D/G)
1 x GIGABYTE ARGB adapter
1 x Molex adapter
4 x Screw
4713157723994
819315023990
133 x 160 x 32 mm
0.25 kg
490 x 340 x 270 mm
60 PCS
15.2 kg
