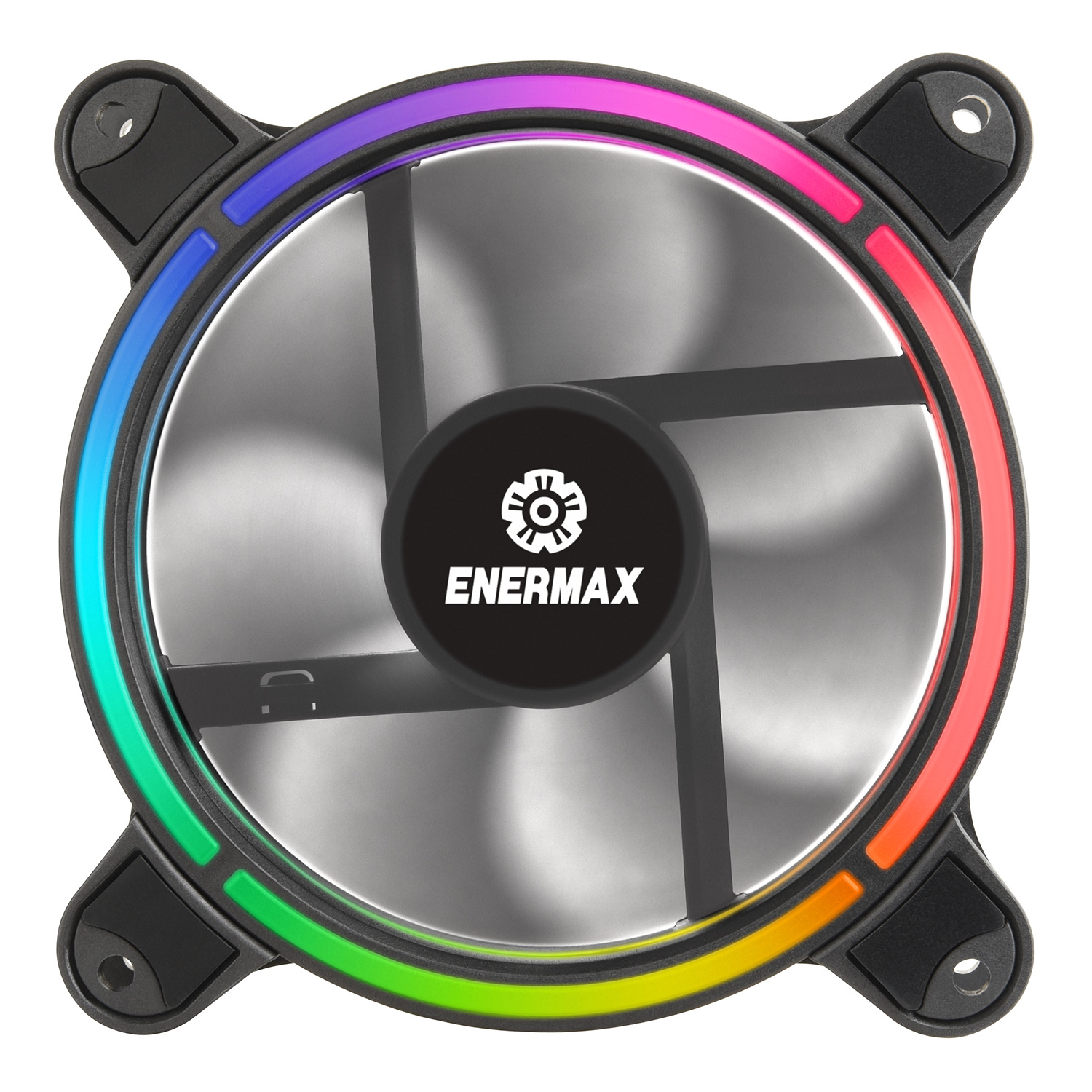

T.B. RGB AD.

‧ Unique 4-ring RGB Lighting Effects
‧ Addressable RGB Sync Ready
‧ Patented Twister Bearing Technology





Addressable RGB lighting with 16.8 million colors presents an epic visual experience




Unique Halo Arc-shaped Frame

Patented Modular Frame structure with the halo arc-shaped frame can create unique 4-ring lighting effects




ENERMAX LED LIGHTING Technology provides consistent and uniform luminance

T.B. RGB AD.

Incredibly bright and even lighting with no visible spots

Others

Uneven lighting with visible spots




Addressable RGB Lighting Synchronization

Synchronizable RGB lighting via addressable RGB header of motherboards (3 pin assignment is 5V/D/G)




Patented Twister Bearing technology

Long life and low noise

Detachable blade for easy cleaning




Smart PWM speed control maintains balance between silence and performance




Shockproof rubber pads minimize vibration during operation




2 ways to control RGB lighting effects

Through Motherboard Software

Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G)

Through ENERMAX Integrated RGB Control Box

Users can use the included control box to adjust preferred lighting effects (10 pre-set effects), brightness and speeds




Product Introduction

型番 UCTBRGBA12P-BP3
ファン/台数 3
寸法 (mm) 120(W) x 120(H) x 25(D) mm
ファンスピード (RPM) 500- 1500 (±10%) rpm
エアーフロー (CFM) 13.71 ~ 47.53 CFM
エアーフロー (m3/h) 23.29 ~ 80.75 m3/h
静圧 (mm-H2O) 0.19 ~ 1.66 mm-H2O
最大ノイズ (dBA) 14 ~ 22 dBA
定格電圧 (V) 12V
定格電流 (A) (ファン) 0.15A
定格電圧 (V) (RGB LED) 5V
定格電流 (A) (RGB LED) 0.8A / fan
MTBF (hours) ≧160,000 hours @ 25oC
コネクター 4-pin PWM connector x 1
3-pin ARGB connector (5V/D/G) x 1
アクセサリー ENERMAX integrated RGB control box x 1
ARGB 3 to 1 cable (5V/D/G) x 1
GIGABYTE ARGB adapter x 1
PWM 3 to 1 cable x 1
Molex adapter x 1
Screw x 12
4713157723987
819315023983
133 x 160 x 100 mm
0.75kg
538 x 335 x 309 mm
20 PCS
14.9kg
