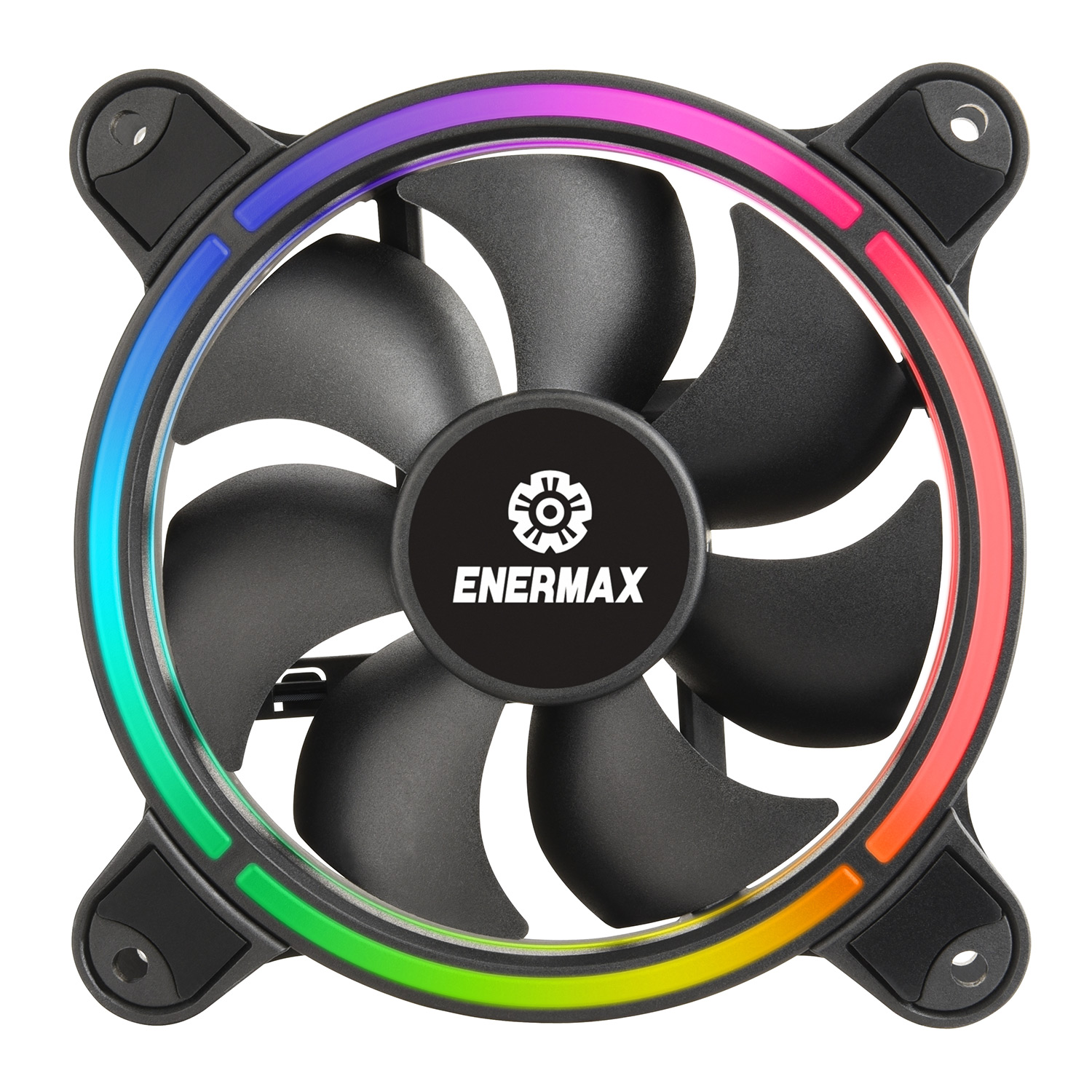

T.B. RGB-SG (12cm)

‧ Stunning RGB Lighting Effects
‧ RGB Sync Ready
‧ Handy 3-in-1 Remote Control





Unique halo arc-shaped frame shows gorgeous and vivid visual effect




ENERMAX LED LIGHTING Technology provides consistent and uniform luminance

T.B. RGB

Incredibly bright and even lighting with no visible spots

Others

Uneven lighting with visible spots




Synchronizable RGB lighting via motherboard (4-pin RGB header)

Compatible with the 4-pin RGB header(s) on motherboards




The 3-in-1 remote control enables users to easily select preferred RGB lighting effects, colors and fan speed




ENERMAX RGB control box can support up to 8 x RGB fans and 2 x RGB LED devices




Patented Twister Bearing technology

Long life and low noise

Detachable blade for easy cleaning




Shockproof rubber pads minimize vibration during operation




Product Introduction

Fan Model Comparison

Model No. UCTBRGB12-SG UCTBRGB12-SB UCTBRGB12-LF UCTBRGB12-TUF
Compatible Product(s) Retail Pack ENERMAX Case-SABERAY ENERMAX Liquid Cooler-LIQFUSION ENERMAX Power-RevoBron TGA
LED Type RGB RGB Addressable RGB
(Indivisual IC)
RGB
Speed 500-1500 RPM 1000RPM 500-2000RPM 1000RPM
RGB Connector
Pin Definition
Control Method Via T.B. RGB Control box Via RGB Header *Via Addressable RGB Header
(The RGB header 4-Pin assignment is 5V/D/G)
Via RGB Header

* Please notice what type of the pin definition is supported by motherboard

型番 UCTBRGB12-SG
ファン/台数 1
寸法 (mm) 120 (W) x 120 (H) x 25 (D)
ファンスピード (RPM) 1500 (±10%)
*500-1500 (±10%) via remote-control
エアーフロー (CFM) 47.53 (max)
エアーフロー (m3/h) 80.75 (max)
静圧 (mm-H2O) 1.66 (max)
最大ノイズ (dBA) 22
定格電圧 (V) 12
定格電流 (A) (ファン) 0.15
定格電圧 (V) (RGB LED) 12
定格電流 (A) (RGB LED) 0.3
MTBF (hours) ≧160,000 @ 25°C
コネクター 6-PIN

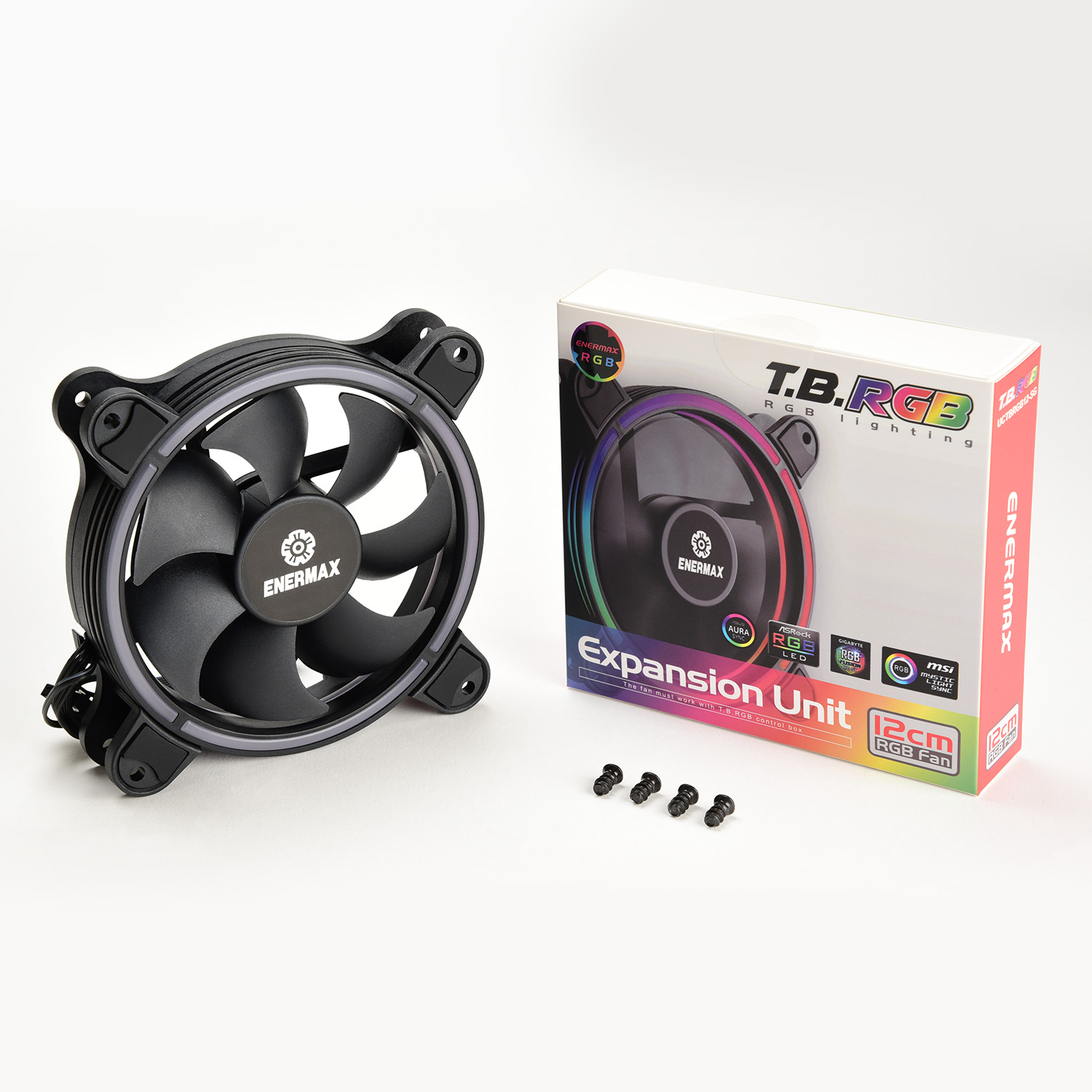

アクセサリー 4 x Screw
4713157723505
819315023501
132 x 125 x 30 mm
188 g
420 x 320 x 280 mm
60 pcs
12.3 k
