型號
|

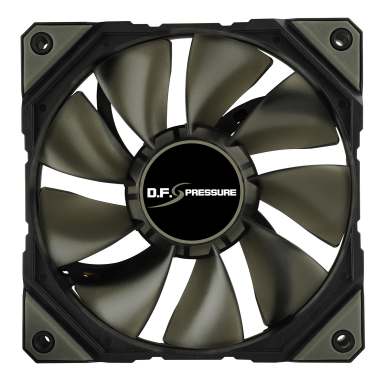

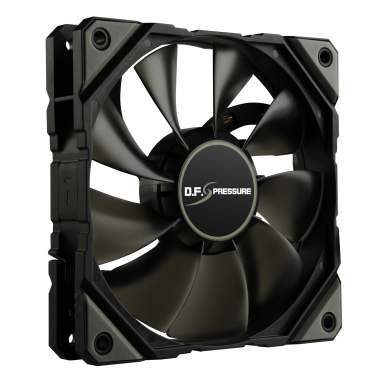

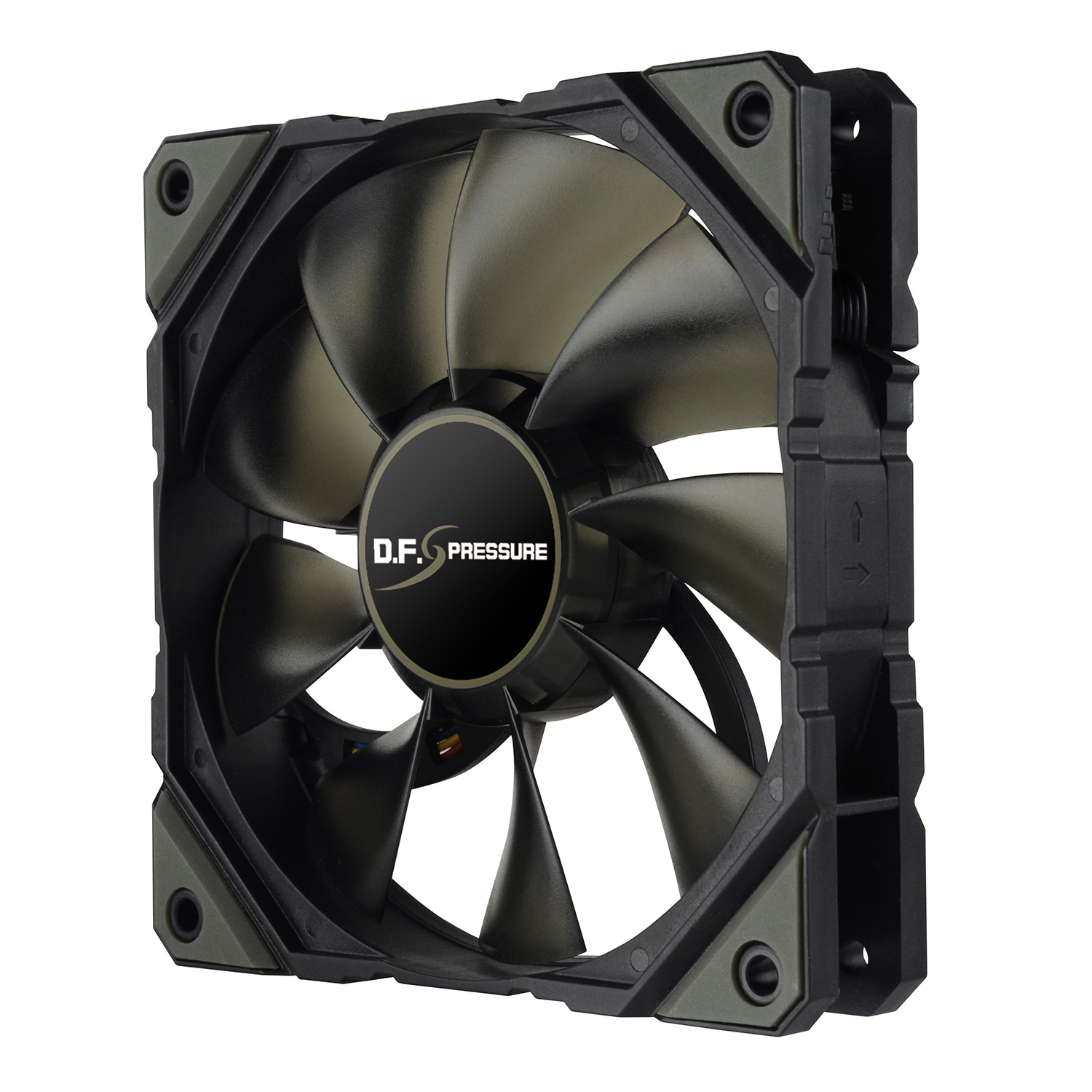

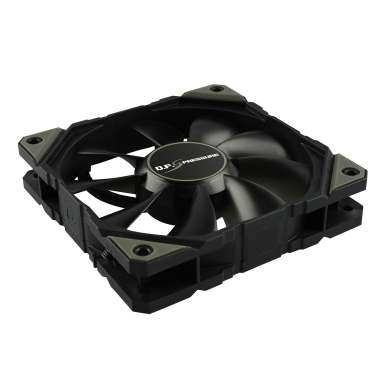

UCDFP12P |
風扇數量
|
1 |
風扇尺寸(mm)
|
120(W) x 120(H) x 25(D) |
轉速 (RPM)
|
800 ~ 1000 / 1500 / 2000 RPM (3 peak rpm options) |
風量 (CFM)
|
800 ~ 1000 rpm:33.69 ~ 42.30 CFM
800 ~ 1500 rpm:33.69 ~ 66.87 CFM
800 ~ 2000 rpm:33.69 ~ 85.43 CFM |
風量 (m³/h)
|
800 ~ 1000 rpm:57.24 ~ 71.87 m3/h
800 ~ 1500 rpm:57.24 ~ 113.61 m3/h
800 ~ 2000 rpm:57.24 ~ 145.15 m3/h |
風壓 (mm-H2O)
|
800 ~ 1000 rpm:0.819 ~ 1.358 mm-H2O
800 ~ 1500 rpm:0.819 ~ 2.701 mm-H2O
800 ~ 2000 rpm:0.819 ~ 4.812 mm-H2O |
風扇(最大)噪音值 (dBA)
|
800 ~ 1000 rpm:16 ~ 18 dBA
800 ~ 1500 rpm:16 ~ 23 dBA
800 ~ 2000 rpm:16 ~ 27 dBA |
額定電壓-風扇 (V)
|
12V |
額定電流-風扇 (A)
|
800 ~ 1000 rpm:0.10 A
800 ~ 1500 rpm:0.15 A
800 ~ 2000 rpm:0.30 A |
MTTF (小時)
|
≧160,000 hours @ 25oC |
接頭
|
4 pin connector |
配件
|
8 x screw , 1 x 4 pin fan power adaptor , rubber pads (red*4、white*4) |
